Railless solar mounting bracket system for metal roof

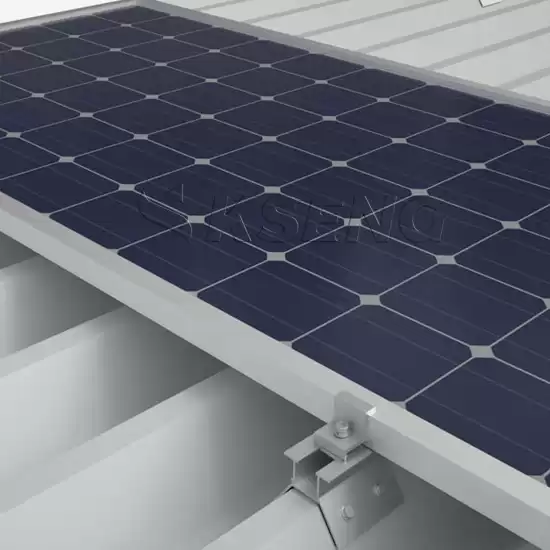

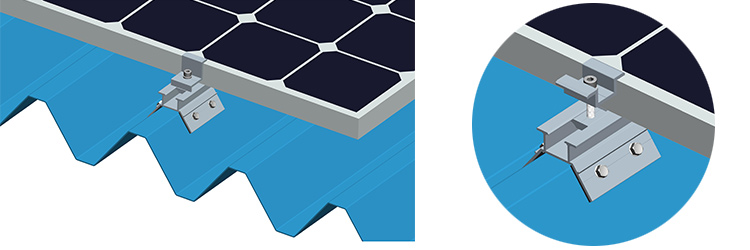

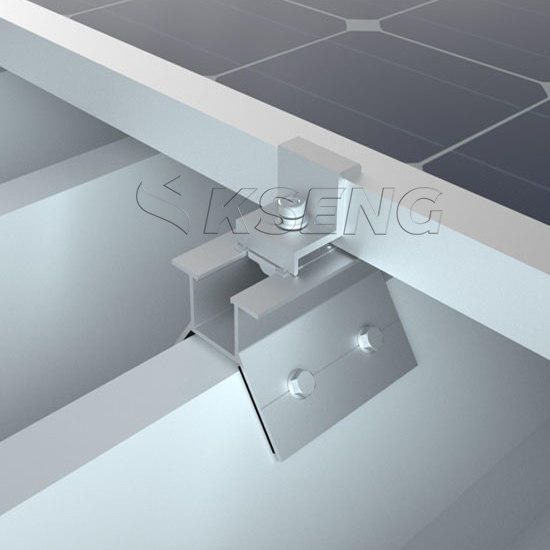

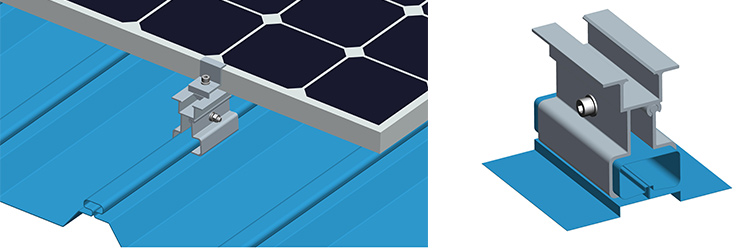

Railless solar mounting structure for metal roof, very few components which is easy to install and save time.The railless system facilitates the rapid mounting of framed PV modules on metal sheet roofs . Only three mian components are required to install the modules directly to the roof. A base mounting roof clamp is 100 mm or 140 mm long, therefore easy to carry and attach to almost all trapezoidal and sandwich roofs. The EPDM sheet is in the package to seal the screw against the metal sheet. Railless mounting system allows easy logistics, cost-effective warehousing and easy mounting.
|
|
|
Material:
|
Aluminum 6005-T5& SUS 304 Stainless Steel
|
|
Application:
|
Roof
|
|
Standard:
|
AS/NZS 1170
|
|
Certification:
|
ISO9001/UL/CE/SGS
|
Pv Modules:
|
Framed or Frameless
|
Anti-Corrosive:
|
Anodized
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Components:
|
rail clamp,bolt,mid clamp, end clamp
|
