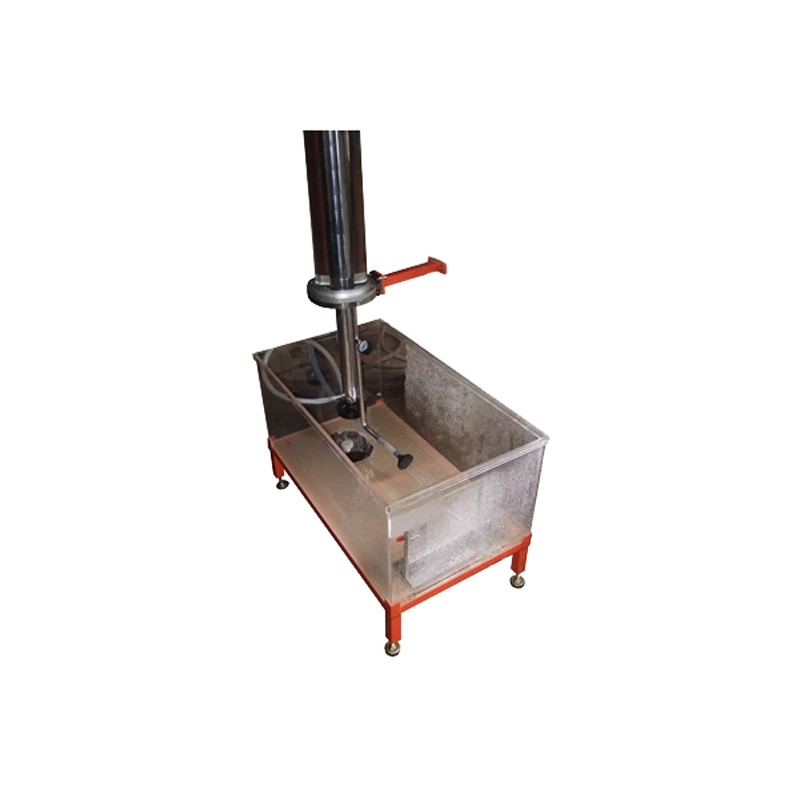

Rain Tester for Textile Fabric GT-C45
Product Introduction
|
Application:
Rain Tester is used to determine the penetration resistance of fabrics or composites at different intensities of water impact. Simulated the rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with a standard blotting paper （which is weighed before and after each test）. The rain is formed by a column of water which can be adjusted from 600mm to 2400mm.,depending on model in 10mm increments, applied via a standardized nozzle.
Standards:
AATCC 35, GB /T 23321, ISO 22958, IST 80.2 (01) 8.7
|

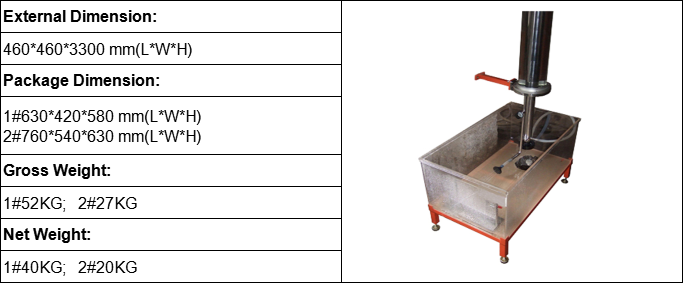

Dimensions
Feature
The testing box is made by organic glass.
The machine level control tube is made of organic glass tube, inner tube made of stainless steel tubes.
Have water circulating system .

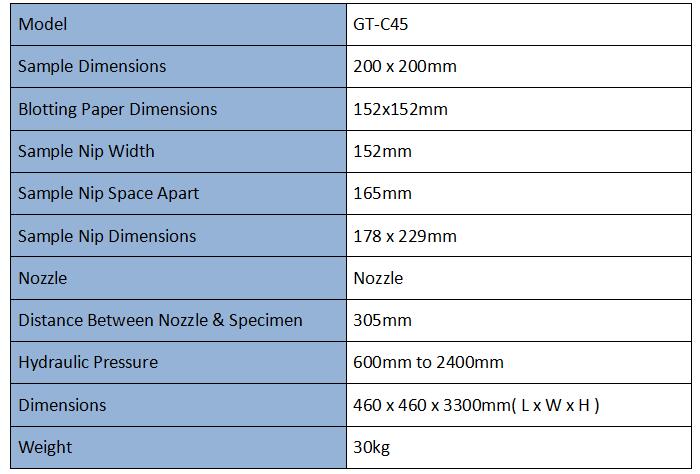

Key Specifications
Application Industry
All kinds of materials can be tested on the Rain Tester for Textile Fabric
