Random Tumble Pilling Tester AG15

Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics under the condition of free rolling friction in the cylinder.

Facebook Twitter Pinterest LinkedIn 分享

AG15-Random Tumble Pilling Tester


Application Of Random Tumble Pilling Tester

Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics under the condition of free rolling friction in the cylinder.

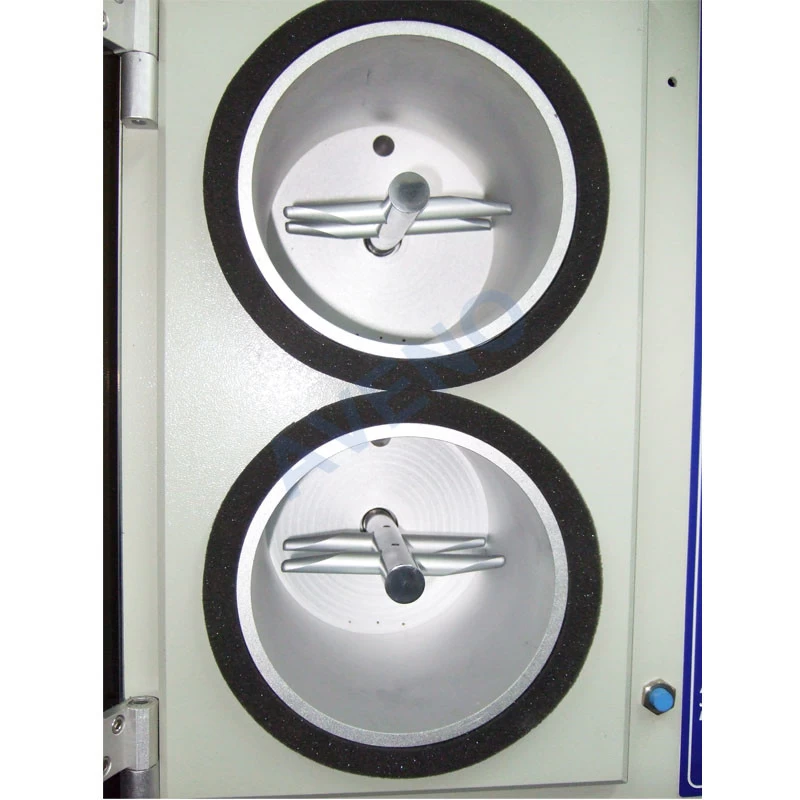

During testing, sample continuous, random friction with cork lining in rotation of stainless steel vane. Test time is controlled by timers and audio alarms. Compressed air also can be injected into the test chamber to enhance overturning and friction action.


Standards Of Random Tumble Pilling Tester

ISO 12945.3, ASTM D 3512, ASTM D 1375, JIS L1076.


Key Specification Of Random Tumble Pilling Tester

Model

AG15-1

AG15-2

Working position

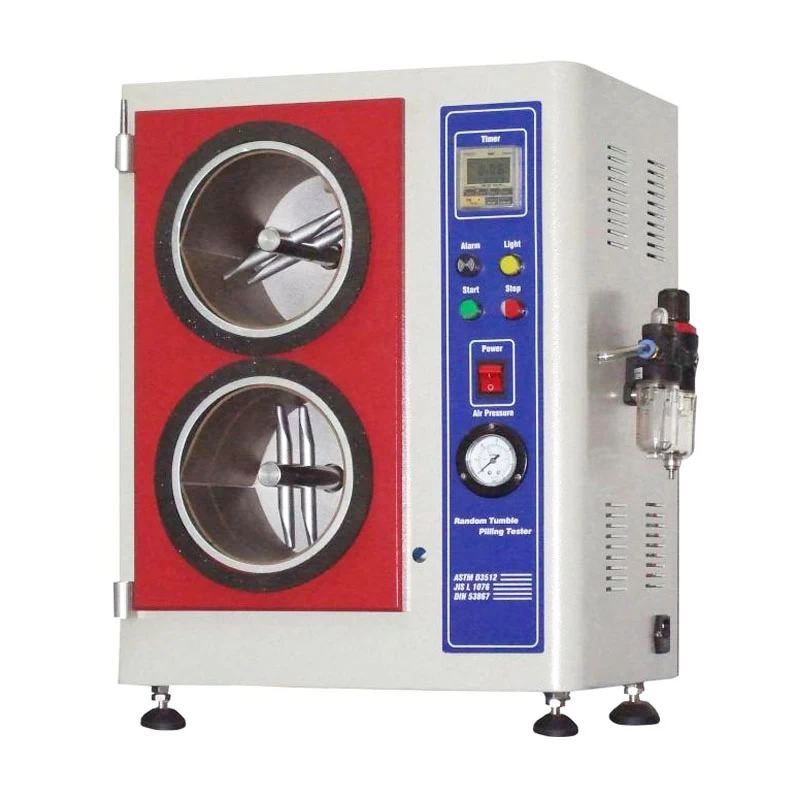

2position

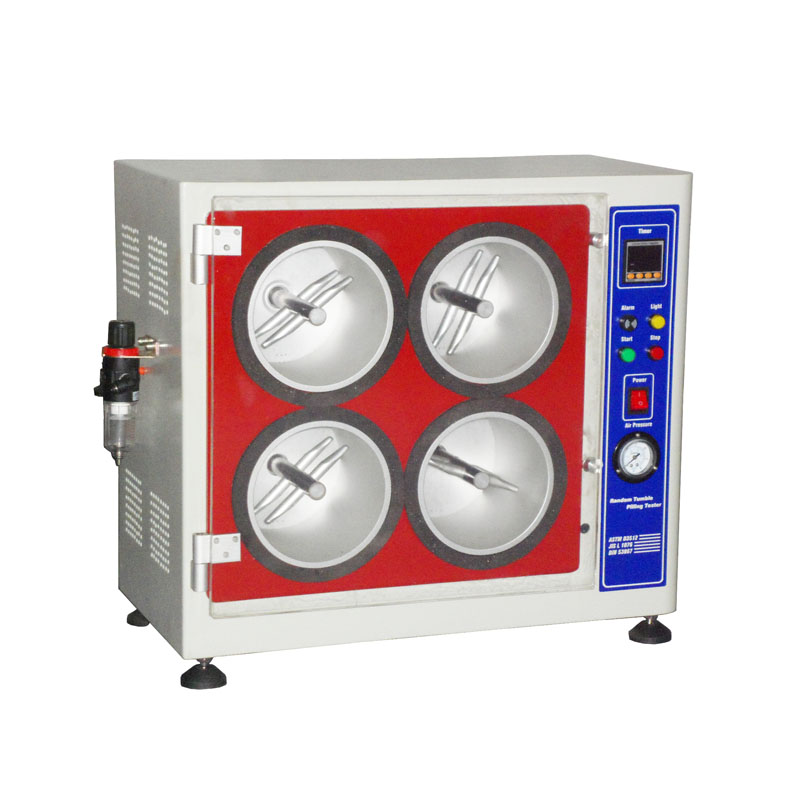

4position

Tumble diameter

146mm

Tumble length

152mm

Cork Liner dimension

452×146×1.5mm (L×W×H)

Rotation speed

1200r/min

Number of samples

3 in each chamber

Stirring rod length

121mm

Specimen size

105±2mm×105±2mm

Air compression

0.014-0.021Mpa

Dimensions

46×40×68cm

66×40×68cm

Dimensions

55kg

75kg
