Hefei Mycoil Technology Co.,LTD is ISO9001:2008 certification factory, which located inAnhuiprovince(near to Shanghai). Our 5A current transformers widely used in monitoring devices, relay protection devices, high frequency power supplies, other electronic equipments. We have a research team consists of five engineers, so we are able to design the electronic current transformer products according to customer's need and provide custom made service.
Quick Details
|
Part No: MCT02A055ACT
|
|
Brand name: MCT
|
|
Operating temperature：-40°C~50°C
|
|
Custom made: Available
|
|
Storage temperature:-40°C~70°C
|
|
Logo: Can be customized
|
|
Relative humidity:10~95%
|
|
Packing: Carton, can custom
|
|
Rated input current:5A
|
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
|
OEM: Available
|
|
Lead time: 25 days after payment
|
|
Shipping: Air, Ship, etc
|
Part Information
Product Name: Rated Input Current5ACurrent Transformer for PCB Mounting
ProductsRange: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Specification
|
MCT PN
|
Rated IN/OUT
|
Accuracy
|
Linearity Range
|
Phase shift
|
Load resistance
|
Isolated withstand voltage
|
Threading aperture,
Unit:mm
|
|
MCT02A05A
|
5A/2mA
|
0.2
|
0~20A
|
≤10’
|
≤200Ω
|
300V
|
Φ0.40
|
|
MCT02A05B
|
5A/2.5mA
|
0.2
|
0~20A
|
≤10’
|
≤200Ω
|
300V
|
Φ0.40
|
|
MCT02A05C
|
5A/5mA
|
0.5
|
0~10A
|
≤15’
|
≤50Ω
|
300V
|
Φ0.40
|

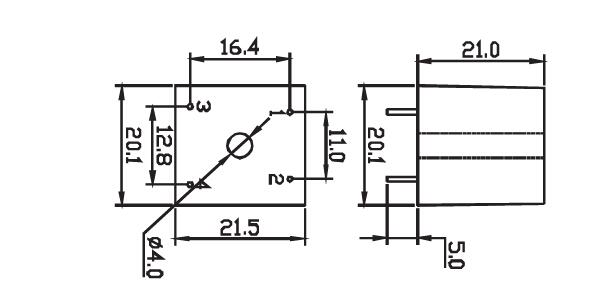

Dimension：mm
Notification
Power supply is needed when operational amplifier is added to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PPM.
Welcome customized type requirements.
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
