Overview

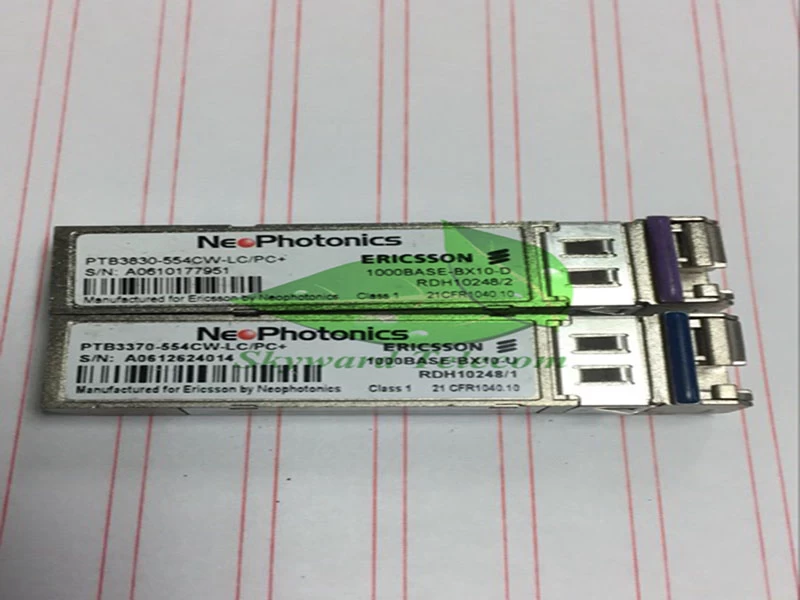

Brand Name: Ericsson
Product Number: RDH10248/1
Feature
-
Universal SFP BiDi Transceiver
-
Use FLEXBOX to configure to almost any vendor
-
Double your bandwith by using only one fiber for transmit and receive
-
For 1000BASE-LX Ethernet links
-
Supported Data Rates: 125 Mbit/s - 1.25 Gbit/s
-
Up to 10 km via Singlemode OS2
-
LC-Connector
-
Digital Diagnocstic Monitoring (DDM)
Specification
|
Item
|
Specification
|
|
FORM FACTOR
|
SFP
|
|
CONNECTOR / POLISH
|
LC Simplex / UPC
|
|
INTERFACE
|
Singlemode BiDi
|
|
TYPE
|
BiDi LX
|
|
DISTANCE
|
10 km
|
|
TEMPERATURE RANGE
|
0°C - 70°C
|
|
BANDWIDTH
|
125 Mbit/s - 1.25
Gbit/s
|
|
DIGITAL DIAGNOSTIC
MANAGEMENT (DDM)
|
Yes, internally
calibrated
|
|
POWER
|
1 W
|
|
POWERBUDGET
|
12 dB
|
|
TRANSMIT MIN/MAX
|
-9 dBm / -3 dBm
|
|
RECEIVER MIN/MAX
|
-21 dBm / -3 dBm
(overload)
|
|
WAVELENGTH TX (TYPICAL)
|
1310 nm
|
|
WAVELENGTH TX (RANGE)
|
1270 - 1350 nm
|
|
WAVELENGTH RX (TYPICAL)
|
1550 nm
|
|
WAVELENGTH RX (RANGE)
|
1530 - 1570 nm
|
|
RECEIVER TYPE
|
PIN
|
|
EXTINCTION RATIO
|
9 dB
|
|
PROTOCOLS
|
1G Fibre Channel,
Gigabit Ethernet, Fast Ethernet
|
