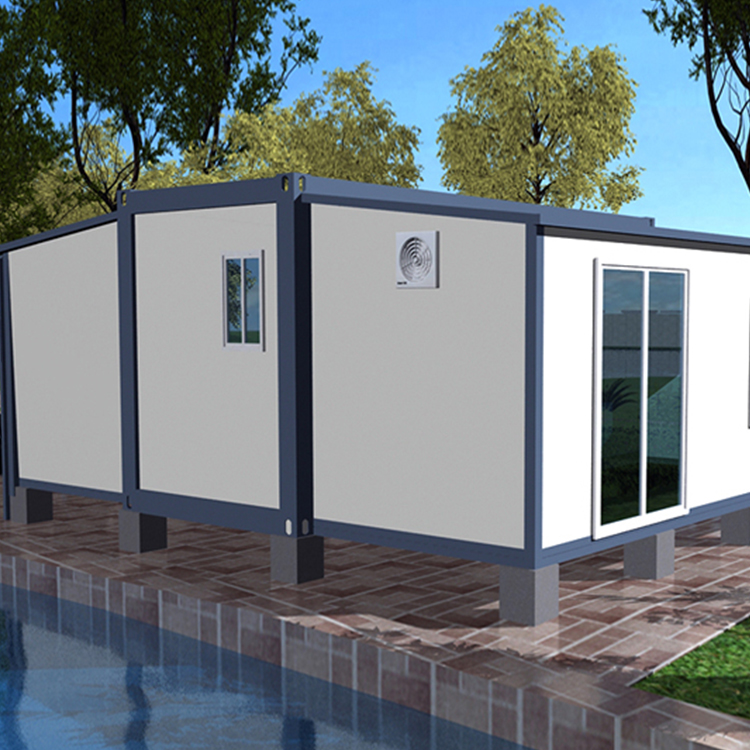

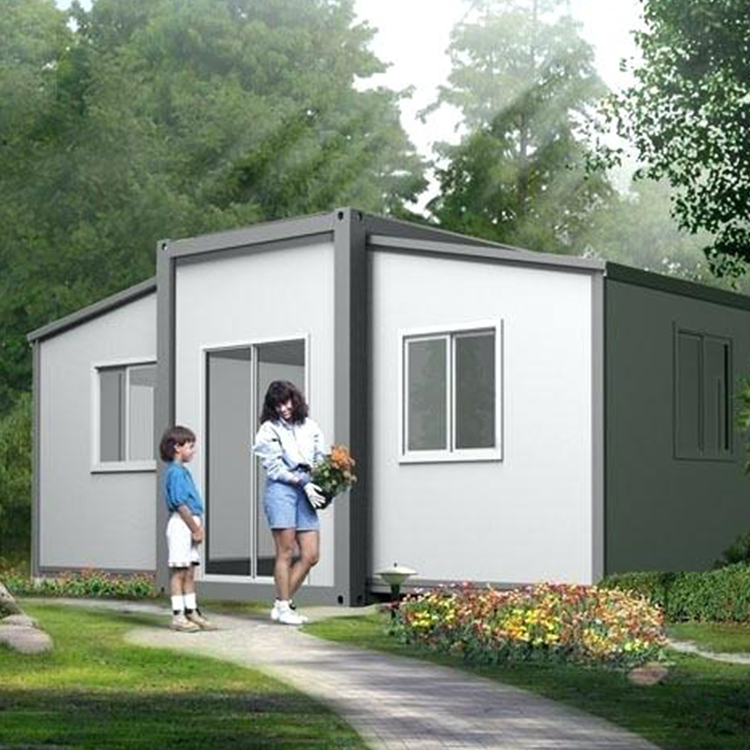

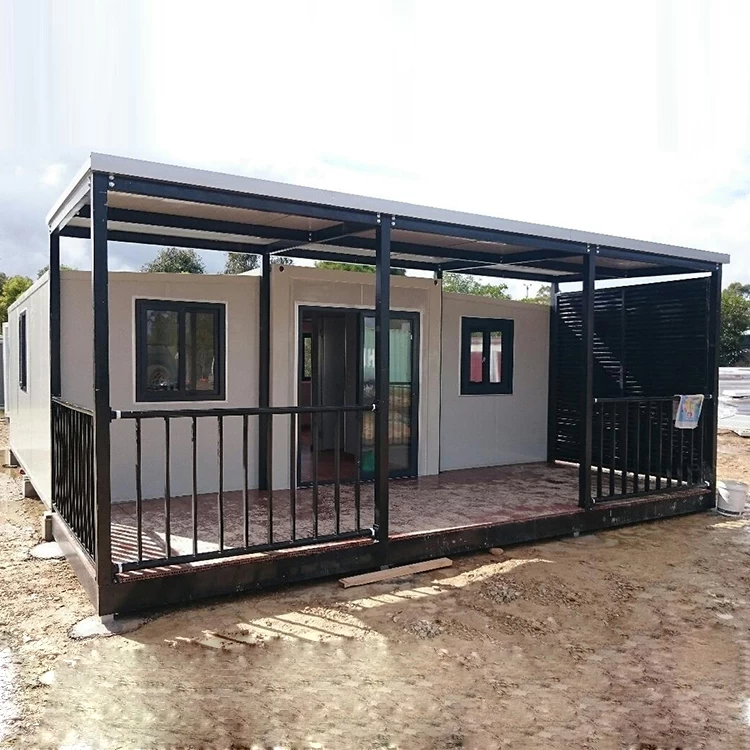

Ready made 20ft 40ft expandable container house folding container house
Steel structure
|
List
|
Part Name
|
Specification
|
Remark
|
|
1
|
steel column
|
Steel panel 3mm thickness Bend part
|
|
|
2
|
Main bottom beam
|
150*75*3.0mm
|
|
|
3
|
Main top beam
|
12#*6mm
|
|
|
4
|
Secondary beam
|
80*80*2.0mm
|
|
|
5
|
PANEL
|
galvanized steel corrugated sheet 1.0mm
|
|
|
6
|
Bottom frame purlin
|
80*40*2.0mm
|
|
Panel, Door and Window
|
List
|
Part Name
|
Specification
|
Remark
|
|
7
|
Ceiling
|
1150×50×0.326mm double side Choi foam sandwich panel
(white and grey)
|
|
|
8
|
external wall panel
|
Bending piping 2.5mm+1150×50×0.326mm 0.326mm double side Choi foam sandwich panel (white and grey)
|
|
|
9
|
Floor
|
Fireproof panel 15mm (yellow)+PVC grain board
|
|
|
10
|
Door panel
|
304 SS door (primary colours)
|
W*H: 1520mm*2200mm, 1 set
|
|
11
|
Sliding window
|
aluminium alloy sliding window (white)
|
W*H:930mm*1200mm, 8 sets
|
Product Details
Product Advantages
1.The container is easy to transport, especially the cabinet saves transportation costs.
2.Durable, all made of steel, with a strong anti-seismic, anti-deformation ability
3.The sealing performance is good, the manufacturing process is strict, so that the product has good water resistance.
4.The activity room is based on a standard steel chassis, which can lead to a lot of space combinations. Such as conference rooms, dorms, kitchens, bathrooms and so on.
When China is gonging through the epidemic struck, Wuhan Vulcan Mountain Hospital, emerged from the ground. Guangdong C.BOX Co., Ltd. from Guangzhou delivered the flat pack container house isolation ward project of Vulcan Mountain Hospital in only ten days.
The rapid delivery of the Vulcan Mountain Hospital project has demonstrated the company's management and production strength, and won the support and trust of overseas customers. This is an intangible asset to the corporate culture and has further enhanced the corporate brand image and market reputation.
