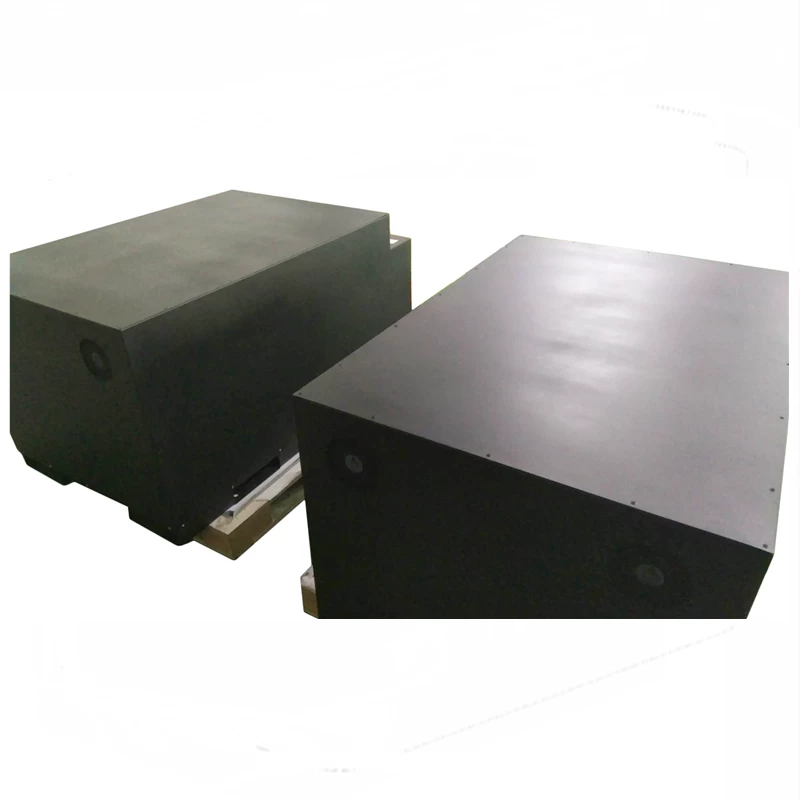

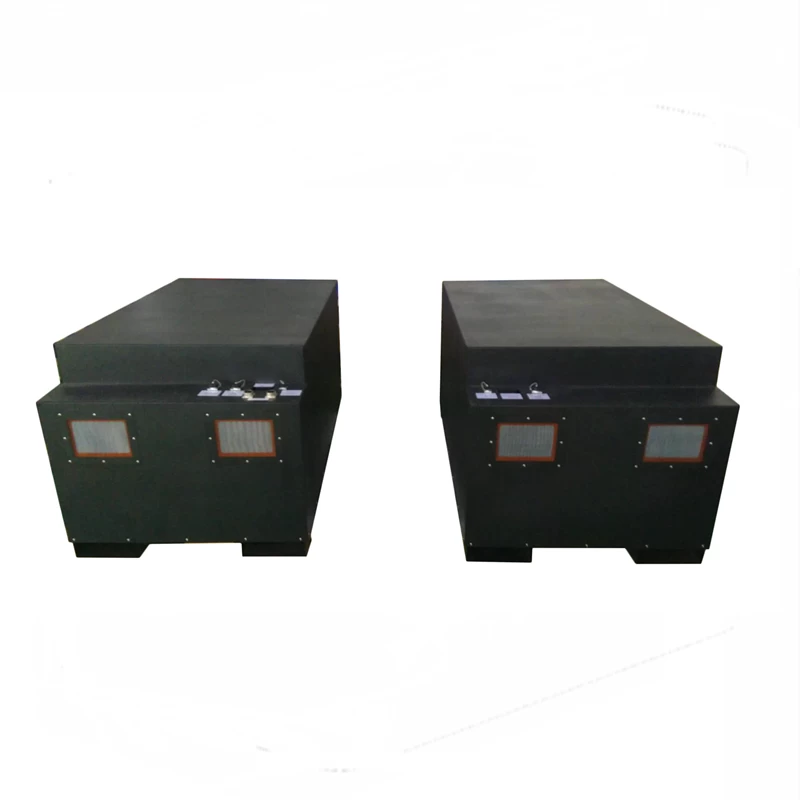

Rechargeable LiFePO4 Battery Pack 307V 480Ah for Traction Forklift

  • Battery Cell: Using 3500 times LiFePO4 120Ah cell
  • Battery management system: Robust Can bus Protocol, allowing microcontrollers and devices to communicate with each others' applications without a host computer.
  • Battery case: Shockproof, anti-pressure, fireproof case design.




Product Name

Rechargeable LiFePO4 Battery Pack 307V 480Ah for Traction Forklift Battery

Highlights
  • Dramatic cost savings.
  • Longer life span up to 3000-4500 times
  • Longer warranties up to 3 years
  • Safety operations, no explode, no pollution
  • Efficient and fast charging and discharging


Technical Specifications

No.

Items

Specifications

1

Nominal Voltage

307.2V

2

Nominal Capacity

480Ah

3

Cell Inside

LiFePO4 3.2V 120Ah cell

4

Configuration

96S4P

5

Standard Charge Current

0.2C-0.5C

6

Max. Charge Current

1C

8

Continuous Discharge Current

480A

9

Peak Discharge Current

960A

10

Full Charged Voltage

350.4V(3.65V per cell)

11

Charge Cut-off Voltage

372.4V (3.9V per cell)

12

Discharge Cut-off Voltage

240V (2.5V per cell)

13

Net Weight

1360kg (approx.)

14

Dimensions



L1600*W1600*H500mm (please double check with your dimension)

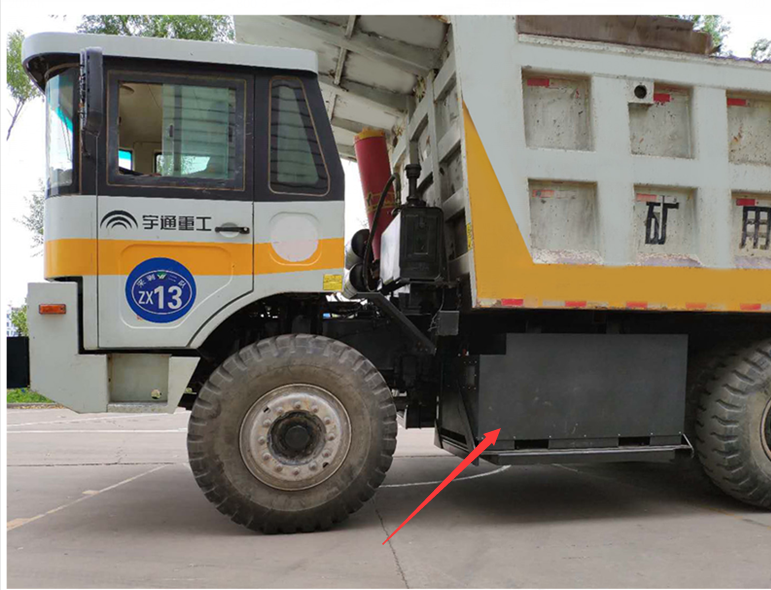

Where to mount the battery?Fasten method?

16

Operating Temperature

Charging:  0°C ~ 45°C

Discharging: -20°C ~ 55°C

17

Storage Temperature

 (Recommended to store 20 ± 5°C for long term storage)

18

Cycle Life

3500 times (80% of initial capacity at 0.2C rate, IEC Standard)



How to maintain a forklift battery pack?

Proper maintenance can extend forklift battery life up to ten years. Prolong the life of your forklift battery by following these easy care and maintain way when charging, operating and handling forklift batteries.

  • Remember to recharge the battery when it reaches 20-30%
  • Don’t deep-discharge because it will cause overheat and damage your lift truck.
  • Fully charge is advisable, partially charging a battery also use up a charge from its “bank.”
  • Using electronic battery tester to know the efficiency of your battery
  • Always check the water level because water protects the active material that lives on plates inside the battery

Switching traditional lead acid into lithium forklift batteries is saving your money. give us a shout or email at service@osnpower.com. We will provide you with qualified service technicians maintain and service


Application
