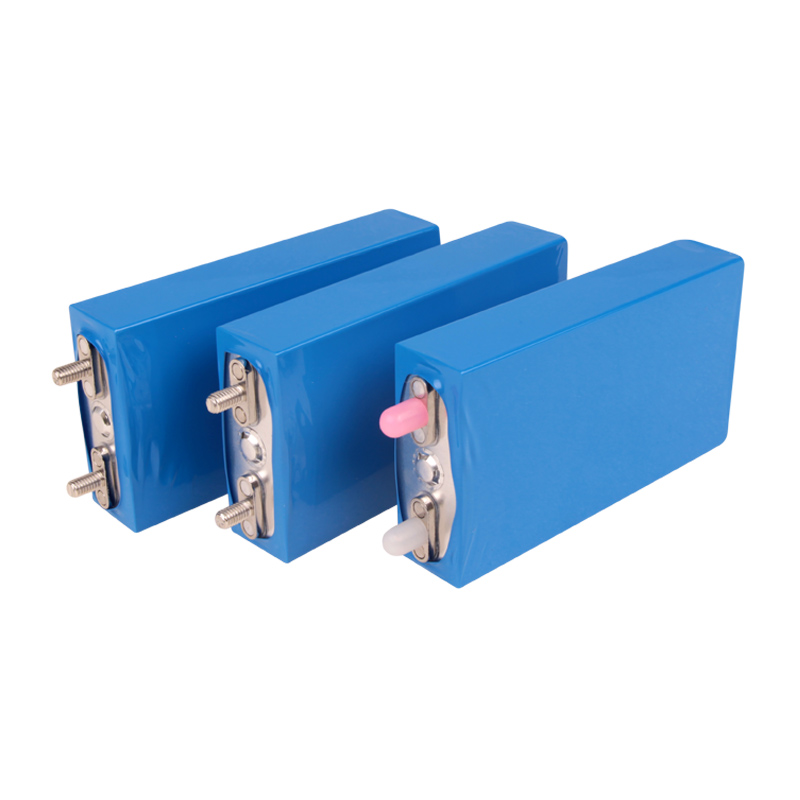

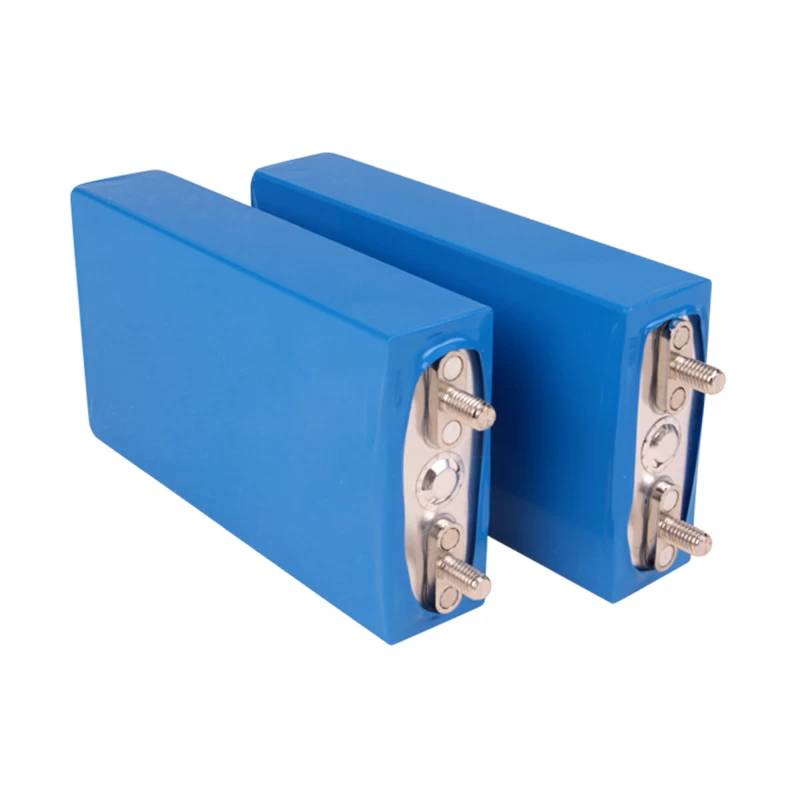

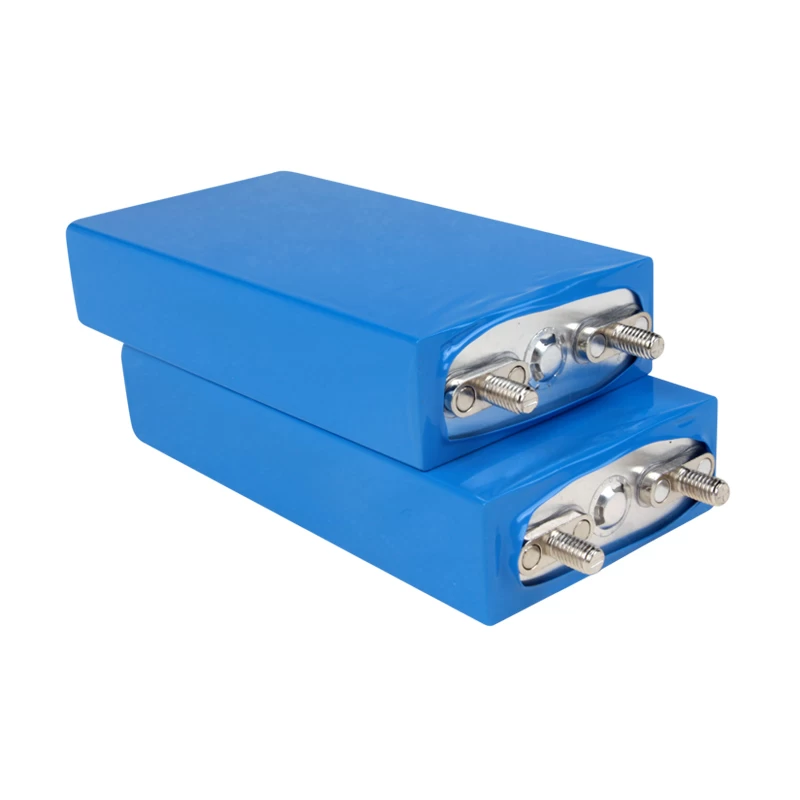

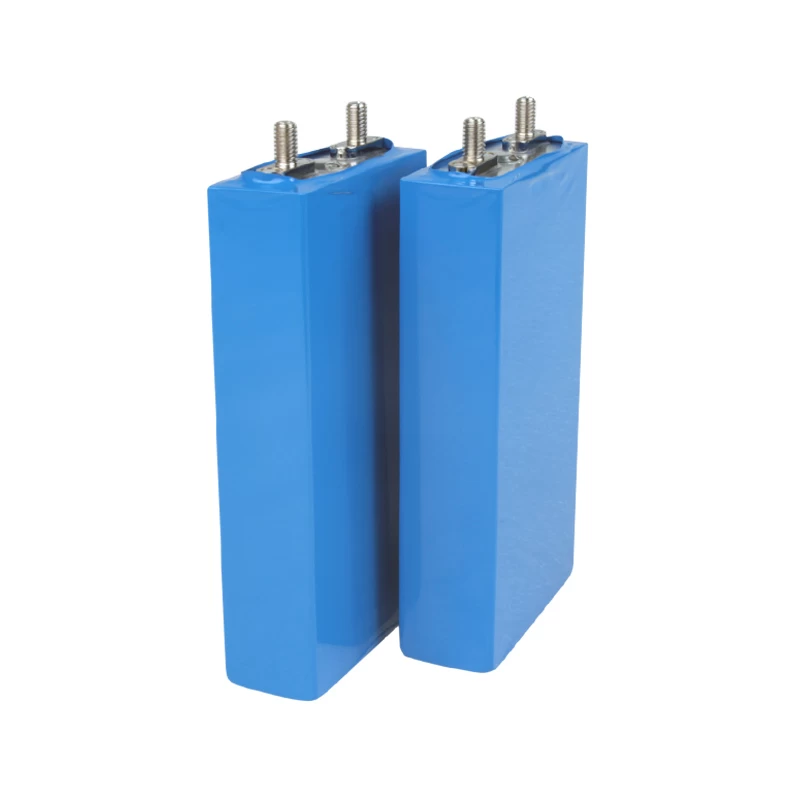

Rechargeable LiFePO4 Cell 3.2V 20Ah Lithium Iron Phosphate Prismatic Battery

Lithium iron phosphate, also known as LFP or LiFePO4, this element is considered to be the safest material among lithium in batteries, not hazardous for human, and never explode.



Product Name


Rechargeable LiFePO4 Cell 3.2V 20Ah Lithium Iron Phosphate Prismatic Battery


20Ah 48V battery pack


Highlights

Compared with traditional AGM/lead acid batteries, LiFePO4 battery/ Lithium iron phosphate batteries are:

  • non-toxic, non-contaminating and contain no rare earth metals
  • 10 times life span longer up to 2000-4500 cycles
  • 1/4 lighter than Lead acid batteries.
  • LFP battery can work in wide temperature from -20 to +75°C
  • No memory Effect.


Technical Parameters


NO.


Item

Specifications

4.1

Typical Capacity

20050mAh          @1C Discharge

Minimum capacity

20000mAh          @ 1C Discharge

4.2

Nominal voltage

3.2V

4.3

Standard Charge

CC/CV,0.2C, 3.60V  0-45

4.4

Standard Discharge

CC,1.0C, 2.00V -20-60

4.5

End-of-charge  Voltage

3.60V±0.05V

4.6

End-of-charge Current

0.01 C (At CV mode

4.7

End-of-discharge Voltage

2.00 V

4.8

Charging Time

5.0hoursstandard charge

4.9

Quick Charge Current

10000mA 0.5 C rate)

4.10

Quick Discharge Current

20000mA 2 C rate)

4.11

Max Discharge Current

60000mA (3 C rate

4.12

Initial Impedance

Max:10mW

4.13

 Weight

Approx530±5g

4.14

Operating temperature

Charging:  -0~45

Discharging-20~60

4.15

Storage temperature

-5~35

4.16

Storage Humidity

75% RH

4.17

Appearance

Without scratch, distortion, contamination and leakage

4.18

Standard environmental condition


Temperature              25±5

 Humidity              :  45-75%RH

Atmospheric Pressure   : 86-106 KPA

4.19

Temperature Dependence of Discharge Capacity

  @ 1C Discharge

Charge  temperature

Discharge  temperature

25

-10

0

15

25

40

Relative Capacity

50%

80%

90%

100%

80%



Below is the chart- LFP vs Lead Acid

Battery Economics

Lead Acid

 Lithium

 Voltage

6.4 Volts

3.2 Volts

Amperage ‘AH’

 225 Amps

100 Amps

Usable Watts

792

256

Price each

 $120

$120

Batteries Required

24

48

Battery Pack Cost

$2,800

$ 5,760

Battery Life

500 Cycles

2000 Cycles.

Cost Per kilowatt

 $.00678

$.00426


There is no doubt that choosing LFP is the most cost effective, environmental way.
