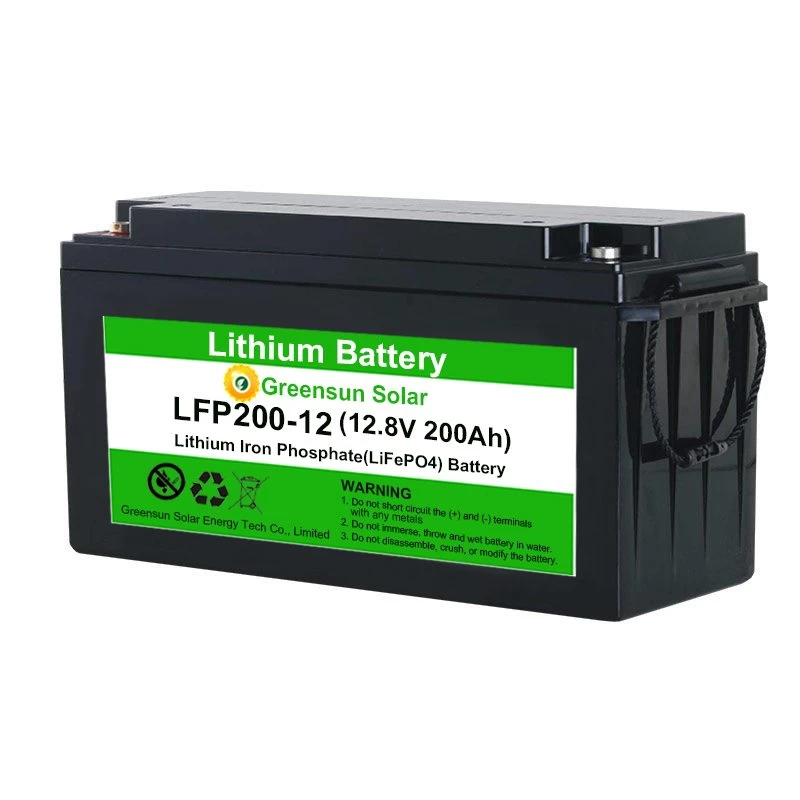

Rechargeable Lithium Iron Battery Pack 12v 200ah LiFePO4 Deep Cycle
Key Features of Lithium Battery
1. Longest Cycle Life and Highest Reliability
2. High Energy Density
3. Low Self Discharge
4. Charging and Discharging in Shorter Time
Specifications of Lithium Battery
Model
|
Rated Volt
|
Capacity
|
Rated Power
|
Approx Weight
|
Dimension
|
Battery Cell
|
Box Material
|
Cycles
|
LFP12-30
|
12.8V
|
30Ah
|
384.0WH
|
3.8KG
|
195*130*155mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP12-50
|
12.8V
|
50Ah
|
640.0WH
|
6KG
|
239*132*205mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP12-100
|
12.8V
|
100Ah
|
1280.0WH
|
13KG
|
329*172*214*243mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP12-150
|
12.8V
|
150Ah
|
1920.0WH
|
19KG
|
483*170*240*240mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP12-200
|
12.8V
|
200Ah
|
2560.0WH
|
27KG
|
522*240*219*244mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP12-250
|
12.8V
|
250Ah
|
3200.0WH
|
31KG
|
520*269*220*249mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP12-300
|
12.8V
|
300Ah
|
3840.0WH
|
38KG
|
520*269*220*249mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP48-30
|
48.1V
|
30Ah
|
1443.0WH
|
10KG
|
440*260*88mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP48-50
|
48.1V
|
50Ah
|
2405.0WH
|
16KG
|
442*385*132mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP48-100
|
48.1V
|
100Ah
|
4810.0WH
|
35KG
|
442*410*220mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
LFP48-150
|
48.1V
|
150Ah
|
7215.0WH
|
48KG
|
442*484*400mm
|
Cylindrical/Prismatic
|
ABS/PVC/IRON
|
>2000@1000%DOD
|
Pictures of Lithium Battery
Projects of Lithium Battery
Greensun provides energy storage batteries such as AGM, GEL, OPZV, OPZS, lithium
batteries, etc. The battery can be divided into 2V battery and 12V battery by voltage.
AGM and GEL batteries are maintenance-free, deep cycle and cost effective.
OPZV and OPZS batteries are usually available in 2V series and have a life span of 15 to 20 years.
Lithium batteries have high energy density, long life and light weight. The disadvantage is high price.
The above batteries are widely used in Solar Power Systems, Wind Energy Systems, UPS System(Uninterrupted Power Supply), Telecom Systems, Railway Systems, Switches and Control systems, Emergency Lighting Systems, , and Radio and Broadcasting Stations.
