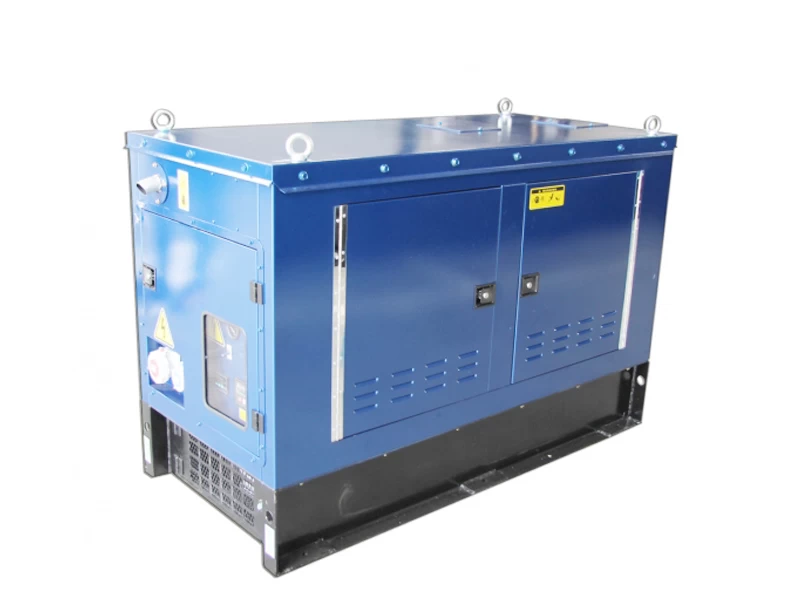

Installation Type - Genset Clip-on
|
|
Model
|
PWST15
|
FWST15
|
|
Prime Power (kw)
|
15
|
|
Rated Voltage (V)
|
460
|
|
Rated Frequency (Hz)
|
60
|
|
Dimension
|
L (mm)
|
1570
|
|
W (mm)
|
660
|
|
H (mm)
|
1000
|
|
Weight (kg)
|
850
|
|
Diesel Engine
|
Model
|
404D-22(EPA/EU IIIA)
|
404D-24G3
|
|
Manufacturer
|
Perkins
|
FORWIN
|
|
Type
|
Direct-injection,4-stroke,4-cylinder, water-cooled, diesel engine
|
|
Cylinder Number
|
4
|
4
|
|
Cylinder Diameter (mm)
|
84
|
87
|
|
Intake Stroke (mm)
|
100
|
103
|
|
Maximum Power (kw)
|
24.5
|
24.2
|
|
Displacement (L)
|
2.216
|
2.45
|
|
Rotation (r/min)
|
1800
|
1800
|
|
Coolant Capacity (L)
|
7
|
7.8
|
|
Lubricating Oil Capacity (L)
|
10.6
|
9.5
|
|
Fuel Capacity(L)
|
125
|
|
Fuel Consumption (L/H)
|
1.5∽2.5
|
|
Air Filter Mode
|
Heavy Oil-immersed Type
|
|
Start System
|
12V Electric Start
|
|
Auxiliary Device of Cold Start
|
Air HeaterDC12V
|
|
Charging Dynamo
|
With DC12V
|
|
|
Alternator
|
Model
|
RF-15
|
|
Insulation Grade
|
F/H
|
|
Exciting mode
|
Brushless ; Excitation
|
|
Control System
|
Control System Model
|
PCC1420
|
|
Parameter Display
|
Generator Set：Voltage V, Current A, Frequency HZ, Active Power KW, Apparent Power KVA,Power Factor Cos∮, Cumulative Power of Generator Set KWH；
Engine：Coolant Temperature, Lubrication Pressure, Rotation,Working hours,Battery Voltage, Fuel Level ect.
|
|
Safety Protection
|
Generator Protection：Overvoltage / undervoltage, over frequency / under frequency, overload, short circuit.
Engine Protection：Low Oil Pressure, High Water Temperature, Low Fuel Level, Charging Failure, Over Speed
|
|
Optional Function
|
12VDC-100AH Free Maintenance Battery
|
|
Auxiliary System
|
Battery
|
12VDC-100AH Free Maintenance Battery
|
|
Power Outlet
|
ISO Standard Junction Box 、Meet the Standard of CEE-17 ，32 A,It is the pointer at 3’s clock when connect the grounding pole.
|
|
Fuel Level Gauge
|
Mechanical Fuel Level Gauge
|
|
Quality Assessment System
|
ISO9001:2000
|
|
Safety Certificate
|
CE
|
