Features of Fuelsmart
thanks to standard inclusion of the formerly optional FuelWise™ technology and use of a new ultra-high-efficiency 15 kW custom-designed permanent magnet generator.

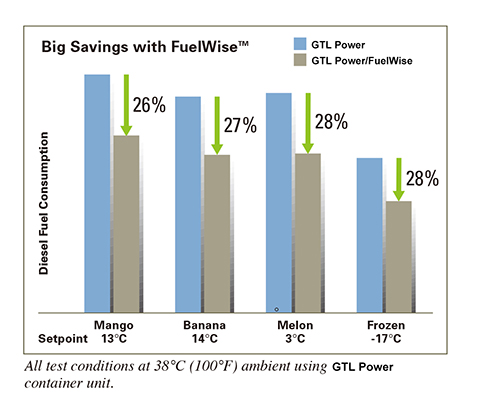

Fuel savings of up to 34% versus prior standard units provide customer with significant operational cost savings and longer hauls prior to refueling.
Ambient temperature range:
1. Structure -40 to +52°C (-40 to +125°F)
2. Operation - Start -26 to +52°C (-15 to +125°F)
2. Operation - Run -40 to +52°C (-40 to +125°F)

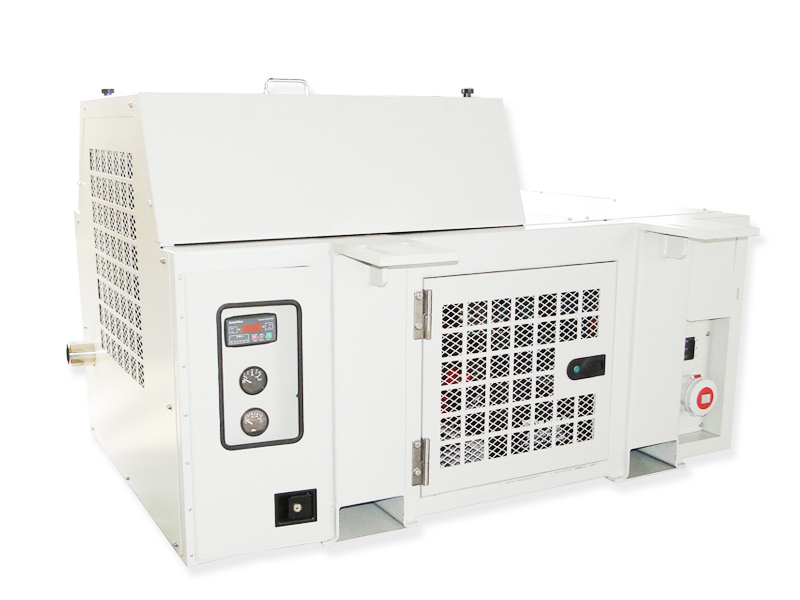

Functionality - The UG15 provides a full 15kW output to power ISO reefer containers.
Accessories and Options:
Auto Restart
Four-point QuickMount installation system(with single captive bolts)

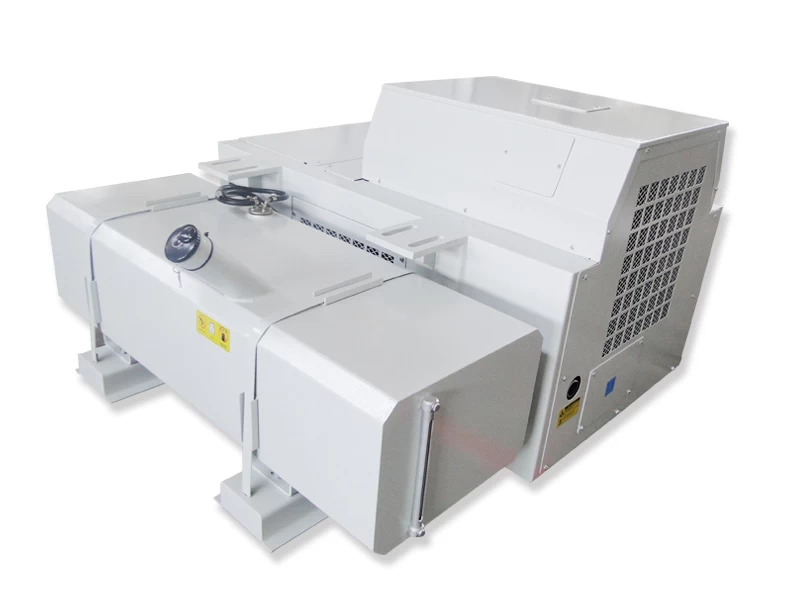

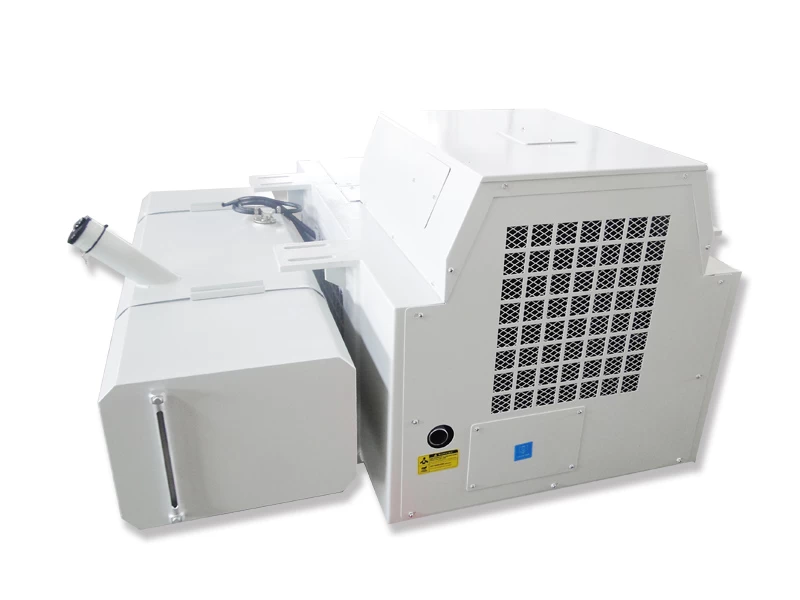

50-gallon(189 liter)integral fuel tankavailable in aluminum or steel 80-gallon(303 liter)integral fuel tank Approximate
Approximate Weights: 693kg(1,525lb.)with 50-gallon integral steel tank
GTL reserves the right to discontinue or change any specification or design without prior notice or obligation.

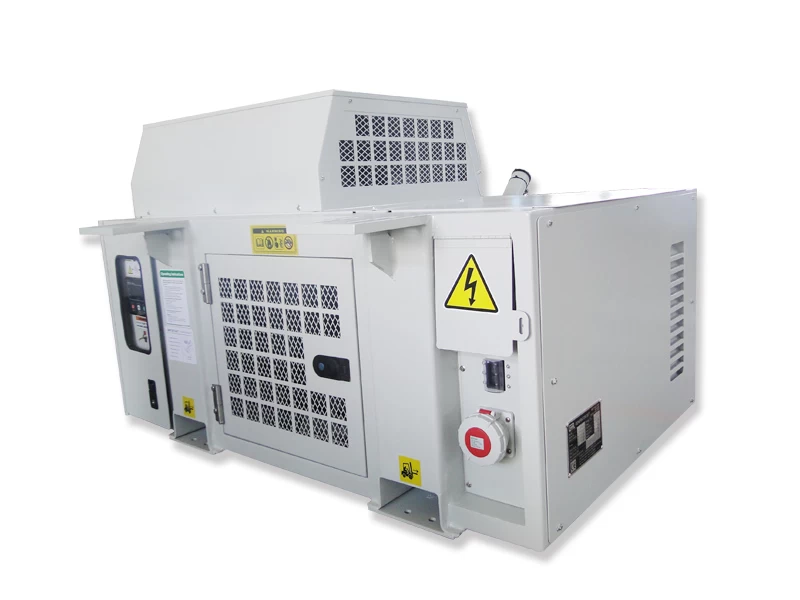

| Installation Type - Genset Undermount
|
|
Model
|
PWUG15
|
FWUG15
|
|
Prime Power (kw)
|
15
|
|
Rated Voltage (V)
|
460
|
|
Rated Frequency (Hz)
|
60
|
|
Dimension
|
L (mm)
|
1316
|
|
W (mm)
|
1550
|
|
H (mm)
|
800
|
|
Weight (kg)
|
705
|
|
Diesel Engine
|
Model
|
404D-22(EPA/EU IIIA)
|
404D-24G3
|
|
Manufacturer
|
Perkins
|
FORWIN
|
|
Type
|
Direct-injection,4-stroke,4-cylinder, water-cooled, diesel engine
|
|
Cylinder Number
|
4
|
4
|
|
Cylinder Diameter (mm)
|
84
|
87
|
|
Intake Stroke (mm)
|
100
|
103
|
|
Maximum Power (kw)
|
24.5
|
24.2
|
|
Displacement (L)
|
2.216
|
2.45
|
|
Rotation (r/min)
|
1800
|
1800
|
|
Coolant Capacity (L)
|
7
|
7.8
|
|
Lubricating Oil Capacity (L)
|
10.6
|
9.5
|
|
Fuel Capacity(L)
|
189
|
|
Fuel Consumption (L/H)
|
1.5∽2.5
|
|
Air Filter Mode
|
Heavy Oil-immersed Type
|
|
Start System
|
Electric Start DC12V
|
|
Auxiliary Device of Cold Start
|
Air Heater DC12V
|
|
Charging Dynamo
|
with DC12V
|
|
Alternator
|
Model
|
RF-15
|
|
Insulation Grade
|
F/H
|
|
Exciting mode
|
Brushless Excitation
|
|
Control System
|
Control System Model
|
PCC1420
|
|
Parameter Display
|
Generator Set：Voltage V, Current A, Frequency HZ, Active Power KW, Apparent Power KVA,Power Factor Cos∮, Cumulative Power of Generator Set KWH；
Engine：Coolant Temperature, Lubrication Pressure, Rotation,Working hours,Battery Voltage, Fuel Level ect.
|
|
Safety Protection
|
Generator Protection：Overvoltage / undervoltage, over frequency / under frequency, overload, short circuit.
Engine Protection：Low Oil Pressure, High Water Temperature, Low Fuel Level, Charging Failure, Over Speed
|
|
Optional Function
|
1.Energy Saving via Frequency Conversion ；2.Automatic Start and Stop System.
|
|
Auxiliary System
|
Battery
|
12VDC-100AH Free Maintenance Battery
|
|
Power Outlet
|
ISO Standard Junction Box 、Meet the Standard of CEE-17 ,32 A,It is the pointer at 3’s clock when connect the grounding pole.
|
|
Fuel Level Gauge
|
Mechanical Fuel Level Gauge
|
|
Quality Assessment System
|
ISO9001:2000
|
|
Safety Certificate
|
CE
|
