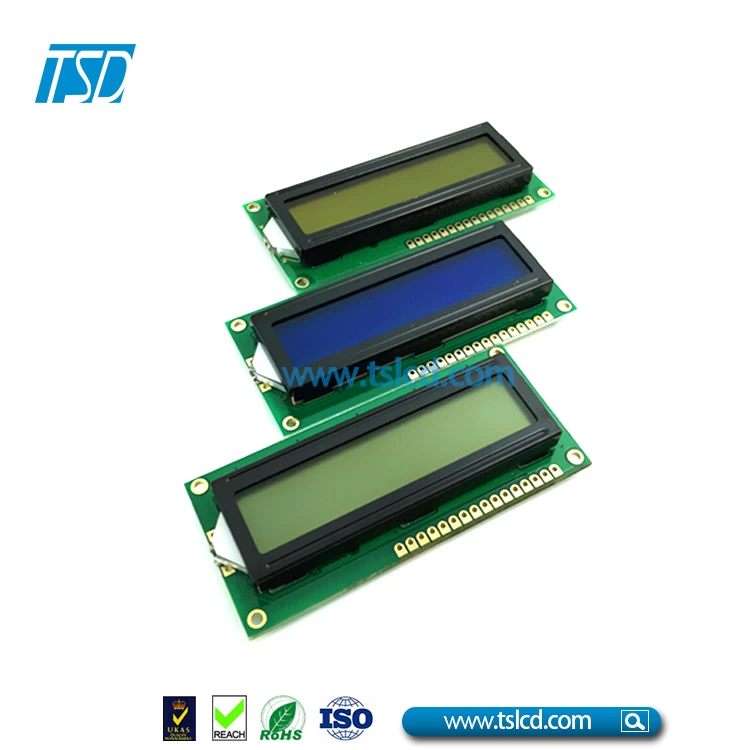

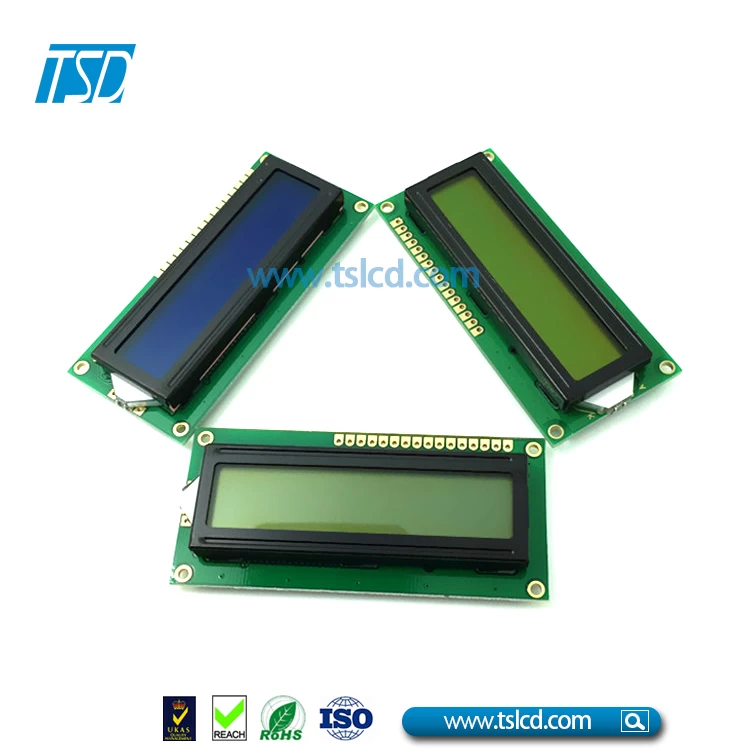

reflective 16x2 lcd module without backlight

reflective 16x2 character lcd module

STN-grey/  FSTN

without backlight

Facebook Twitter Pinterest LinkedIn 分享
Item Spec.
LCD Display Character reflective 16x2 lcd module without backlight
LCD Display type STN, Grey, positive, reflective
Operating voltage 3.3v
Outline 72.0x36.0x10.1mm
View Area 64.5x16.0mm
Active Area 56.2x11.5mm
Viewing direction 6H
Operating temperature -0°C-50°C
Storage temperature -10°C-60°C
Drive Mode 1/16 DUTY, 1/5 BIAS
