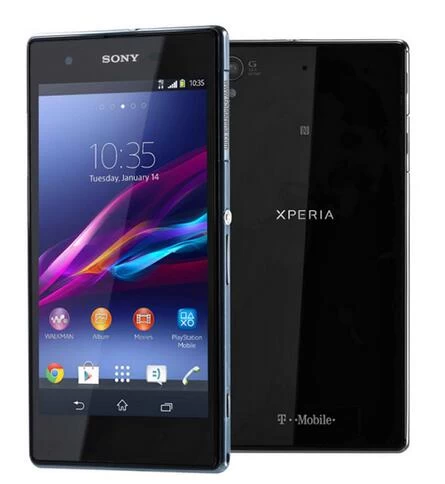

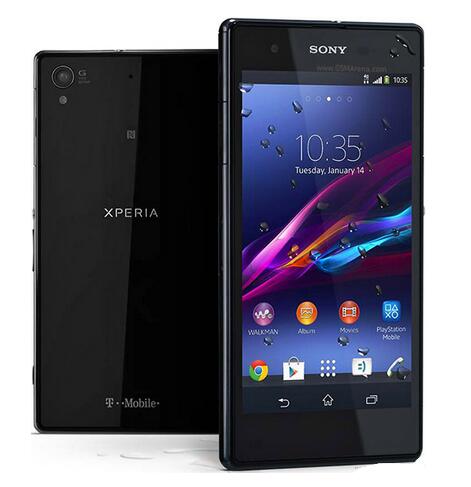

For T-Mobile
Also known as Sony Xperia Z1s C6916, Sony Xperia Z1S 4G LTE
NETWORK
Technology GSM / HSPA / LTE
2G bands GSM 850 / 900 / 1800 / 1900
3G bands HSDPA 850 / 900 / 1700 / 1900 / 2100
4G bands LTE band 4(1700/2100), 17(700)
Speed HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps
GPRS Up to 80 kbps
EDGE Up to 236.8 kbps
LAUNCH
Announced 2014, January
Status Available. Released 2014, January
BODY
Dimensions 145.7 x 73.9 x 8.6 mm (5.74 x 2.91 x 0.34 in)
Weight 162 g (5.71 oz)
SIM Micro-SIM
- IP58 certified - dust proof and water resistant over 1.5 meter and 30 minutes
DISPLAY
Type TFT capacitive touchscreen, 16M colors
Size 5.0 inches (~64.0% screen-to-body ratio)
Resolution 1080 x 1920 pixels (~441 ppi pixel density)
Multitouch Yes, up to 10 fingers
Protection Shatter proof glass
- Triluminos display
- X-Reality Engine
PLATFORM
OS Android OS, v4.3 (Jelly Bean), planned upgrade to v5.1 (Lollipop)
Chipset Qualcomm MSM8974 Snapdragon 800
CPU Quad-core 2.2 GHz Krait 400
GPU Adreno 330
MEMORY
Card slot microSD, up to 64 GB (dedicated slot)
Internal 32 GB, 2 GB RAM
CAMERA
Primary 20.7 MP, autofocus, LED flash
Features 1/2.3" sensor size, geo-tagging, touch focus, face detection, HDR, panorama
Video 1080p@30fps, HDR
Secondary 2 MP, 1080p@30fps
SOUND
Alert types Vibration; MP3, WAV ringtones
Loudspeaker Yes
3.5mm jack Yes
- Active noise cancellation with dedicated mic
COMMS
WLAN Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot
Bluetooth v4.0, A2DP
GPS Yes, with A-GPS, GLONASS
NFC Yes
Radio Stereo FM radio, RDS
USB microUSB v2.0 (MHL TV-out), USB Host; magnetic connector
FEATURES
Sensors Accelerometer, gyro, proximity, compass
Messaging SMS (threaded view), MMS, Email, IM, Push Email
Browser HTML5
Java No
- ANT+ support
- MP4/H.264 player
- MP3/eAAC+/WAV/Flac player
- Document viewer
- Photo viewer/editor
- Voice memo/dial
BATTERY
Non-removable Li-Ion 3000 mAh battery
Stand-by Up to 600 h (2G) / Up to 620 h (3G)
Talk time Up to 15 h (2G) / Up to 15 h (3G)
Music play Up to 40 h
MISC Colors Black
SAR US 0.72 W/kg (head) 1.25 W/kg (body)
Price group 6/10
