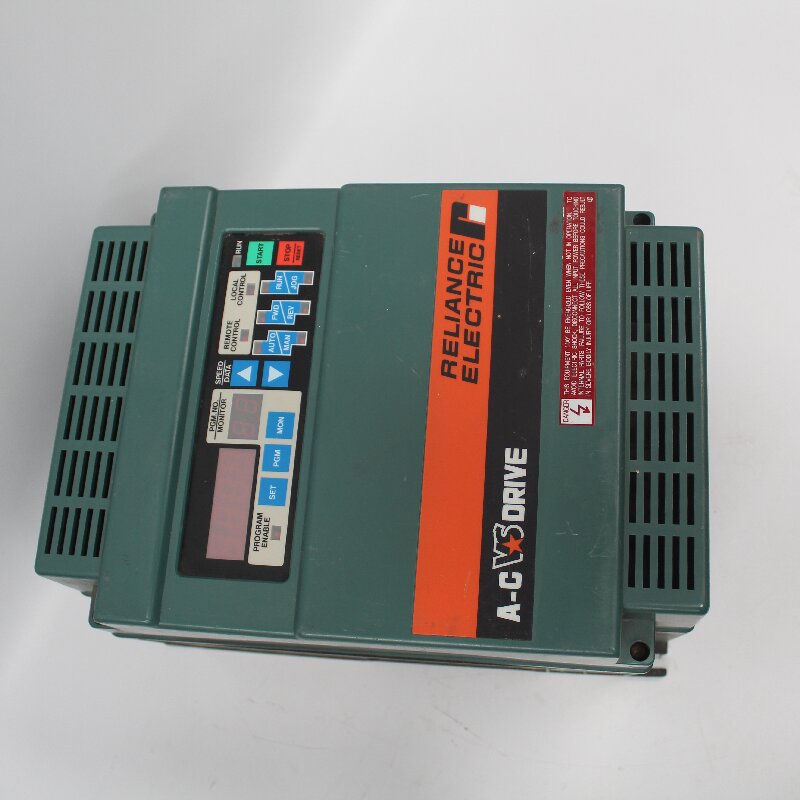

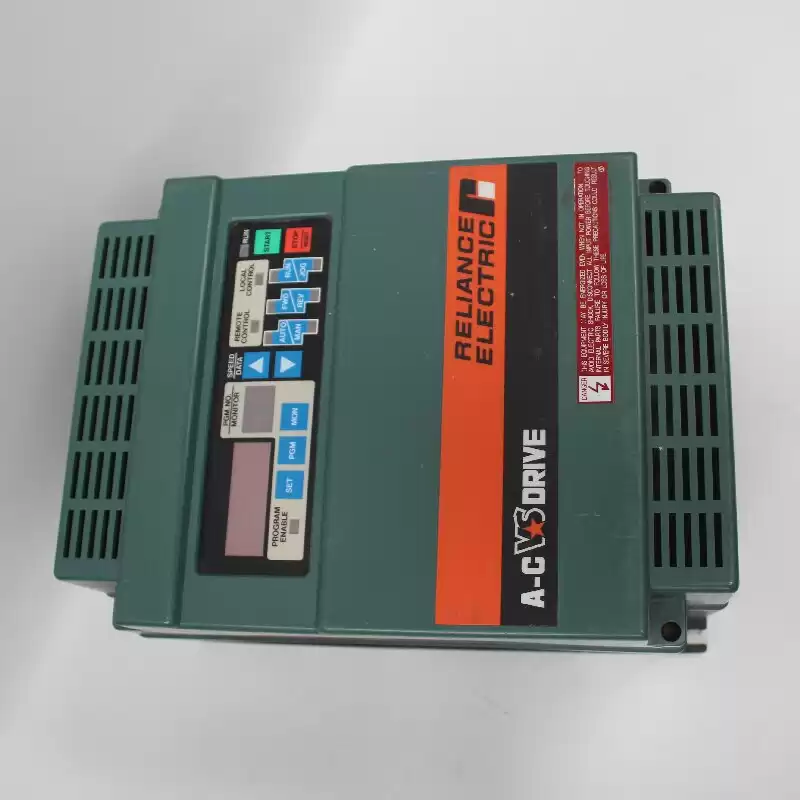

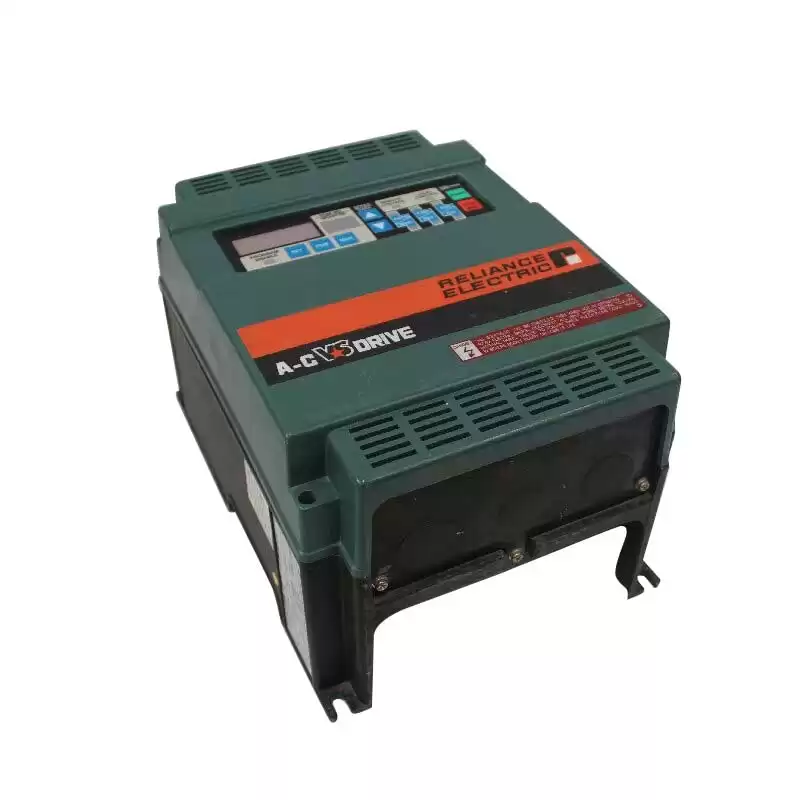

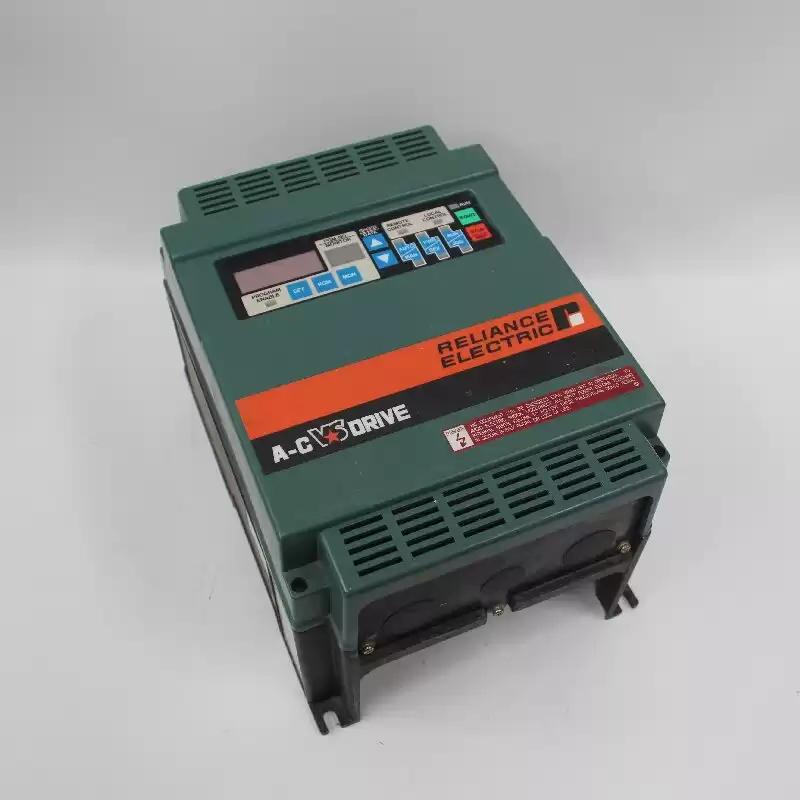

RELIANCE ELECTRIC 2GU21001-RS-016 Inverter

    Description:

• The 2GU21001-RS-016 is a 3-Phase AC V*S drive created by Reliance Electric.

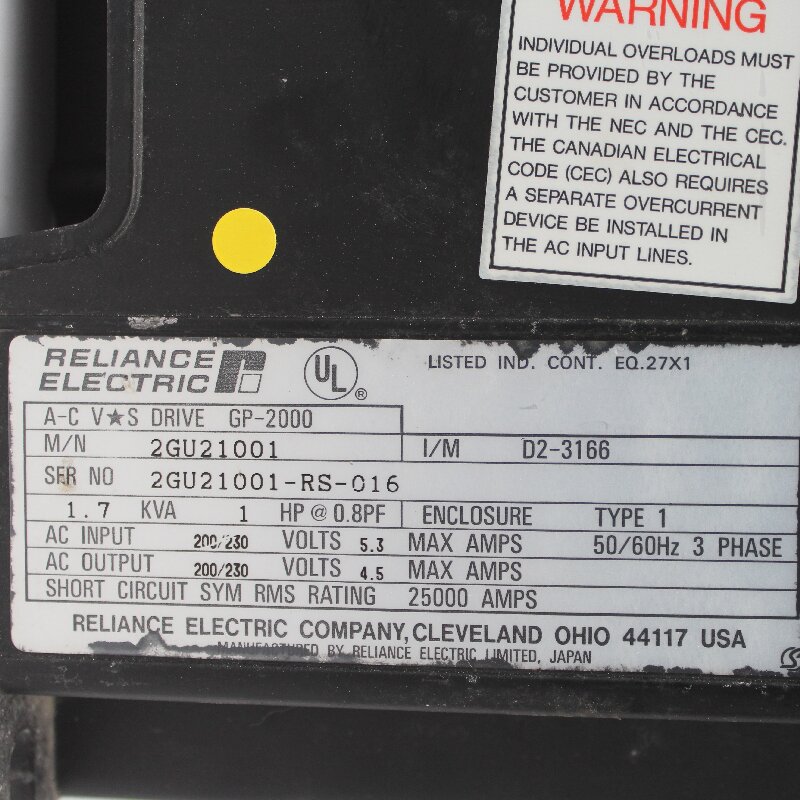

• The 2GU21001-RS-016 is a ¼-½ HP 230 VAC Output GP2000 series Drive. This drive is encased in a NEMA 1 chassis. It can operate at a 50/60Hz line frequency. This drive has a 3-phase power input, but it can be downshifted to using a single-phase 230 V AC input power. You still must use a 3-phase motor though when you do this. This drive has a 3-phase input power rating of 2.1 KVA input and a max input of 5.3 amps. It has a sine wave of 4.1 amps and a maximum 4.5 drive output. The ratings for a single-phase input power is different. It has a 1.1 KVA drive input and 4.6 max input in amps. It has a max motor sine wave of 2.3 maps and a drive output of 2.5 amps maximum.
• The 2GU21001-RS-016 has many features that comes standard will all GP2000 series drives. It has a limit on its current and regenerative voltage. It has a setting for full spectrum switching that can cut down on motor noise. It has the capacity to protect itself against short circuits in its line-to-ground and line-to-line output. It can make 57 different adjustments with the drive configuration.
