The 57C409 was originally created to be an AutoMax Multibus I/O System. It had an input rating of +/-1, 5, 10, and 20V. This part could allow two input channels to be used in its analog Input Mode. It had a four to twenty mA current range. The 57C409 had a program interruption and a 12-bit resolution with polarity. This module could use its software to select input filters and sampling rates. This system had the ability to convert analog to digital input values using the sample-and-hold circuits. You can reduce abnormal software signal noise by using a selectable feature on the low pass filters. Doing this will also allow you to have anti-aliasing for higher frequencies.
|
|
|
57C409 Data sheet
|

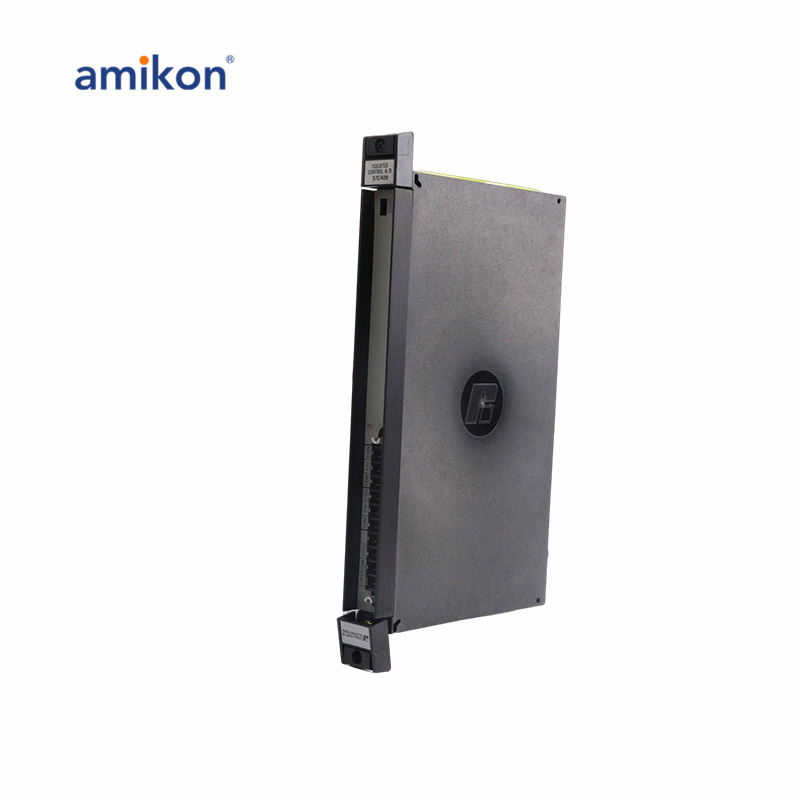

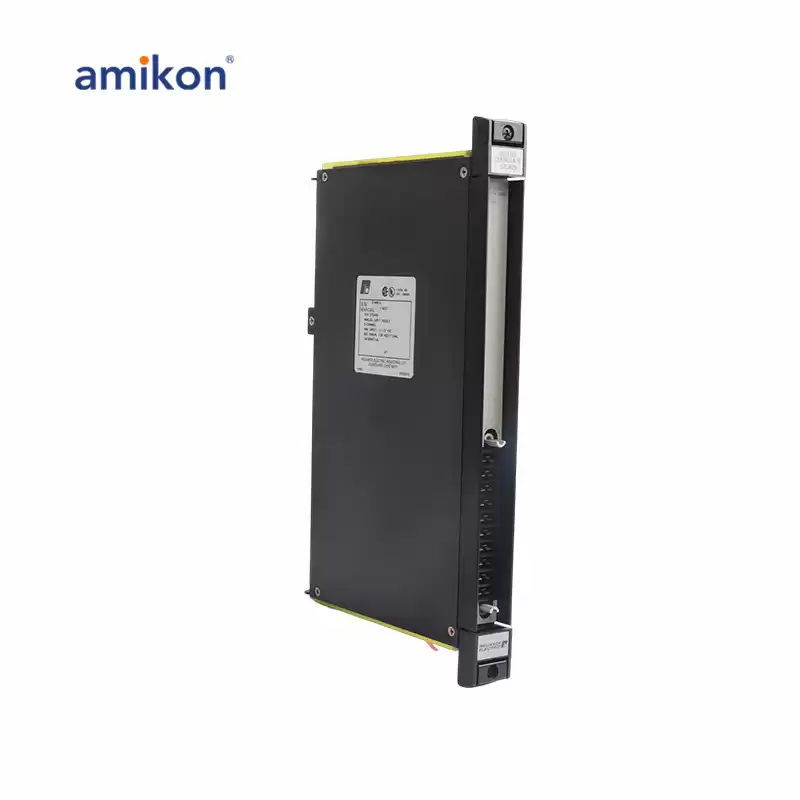

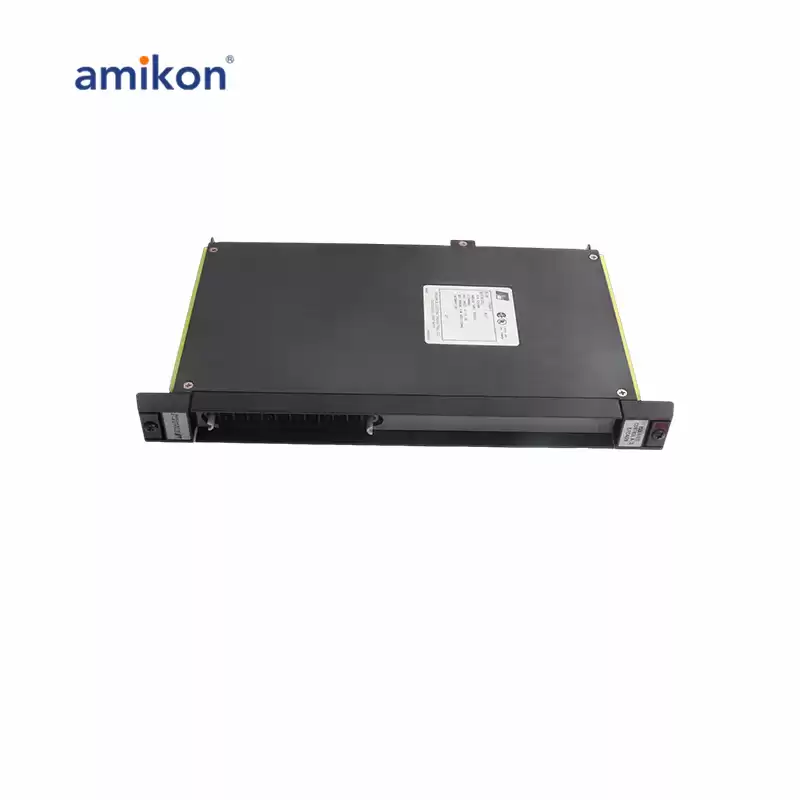

The 57C409 is comprised of a circuit board with a faceplate that is held in a protecting chassis. This card can be installed into an AutoMax rack to be stored with other modules and cards assigned to the AutoMax system.
|
|
This card can be slid into a card slot on the backplane of the rack and then properly secured using brackets and screws.
|
|
There are two brackets on the rack and two on the module. These brackets can also be used to remove the card safely from the rack
|
|
