Over view:
Hefei, China (Mainland)
Brand Name:EMI
Model Number:LXRY-40-200
Type:Helix woltman water meter , Turbine meters, dry dial,remote reading water meter
Keyword:remote reading water meter
Material:Ductile iron
Carliber diameter size:40mm-200mm

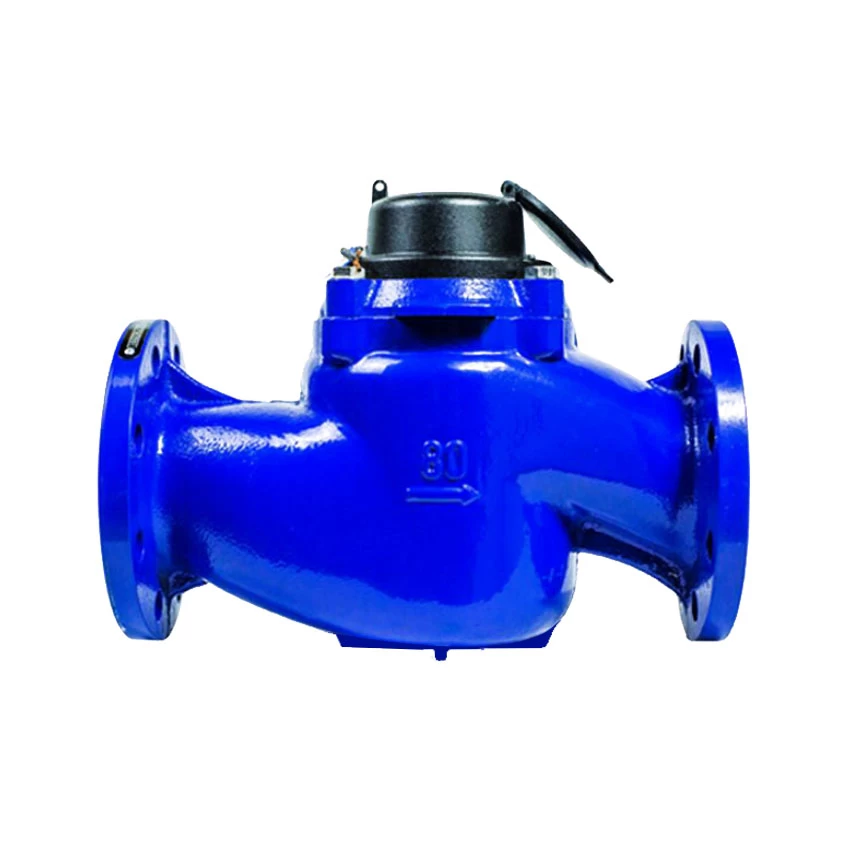

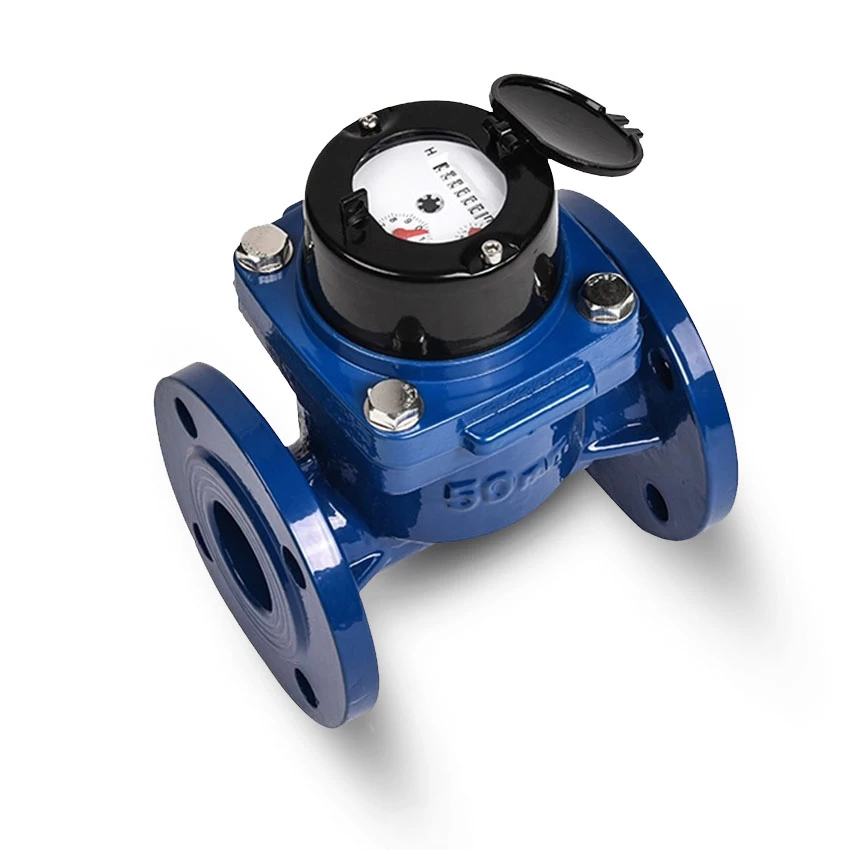

Name:woltman water meter
Feature:High Performance
Color:blue
Standard:ISO9001:2008 class B
Features:
Full flow detection, high precision measurement.
Wide range, suitable for large changes in traffic occasions.
Dry magnetic structure to ensure that the counter is clean and clearly displayed.

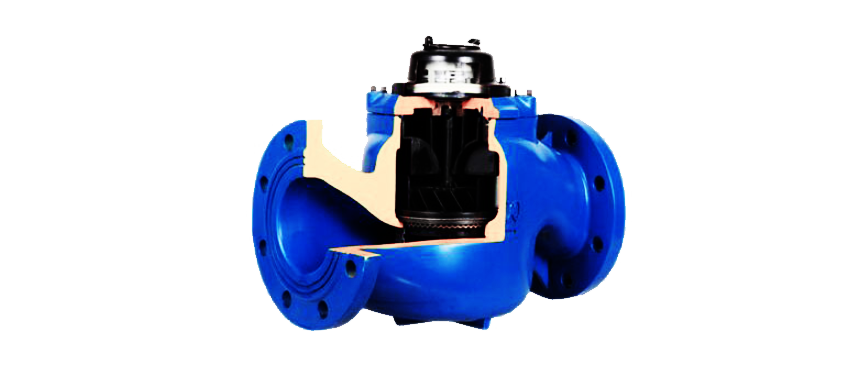

Removable measuring machine core structure, easy maintenance.
Internal adjustable structure to prevent unauthorized adjustment.
Digital wheel display reading increases by six digits, reading more clearly.
Built-in stainless steel filter can effectively protect the measuring mechanism.
High wear resistant bearing system (gem bearing + high wear resistant cemented carbide shaft) ensures long-term stability and reliability of the product, and significantly improves the maximum flow rate of the product.
No worm gear transmission mechanism, impeller direct drive counter, high transmission efficiency, low initial flow.
Stainless steel fasteners and epoxy powder are sprayed inside and outside the shell to maximize rust resistance and prolong the service life of the product.
Optional tamper-proof cover. (To prevent users from moving, damaging or changing the measurement structure without authorization, and to maximize the anti-theft effect).
Details reflects the qualtiy:

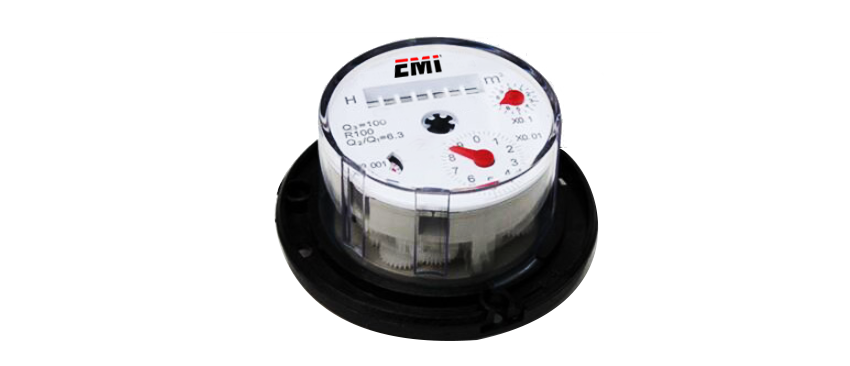

1. Counter: 5 kinds of counter
normal dry counter
dry anit scatch counter
copper seal dry counter
wet liquid seal counter
passive direct reading counter

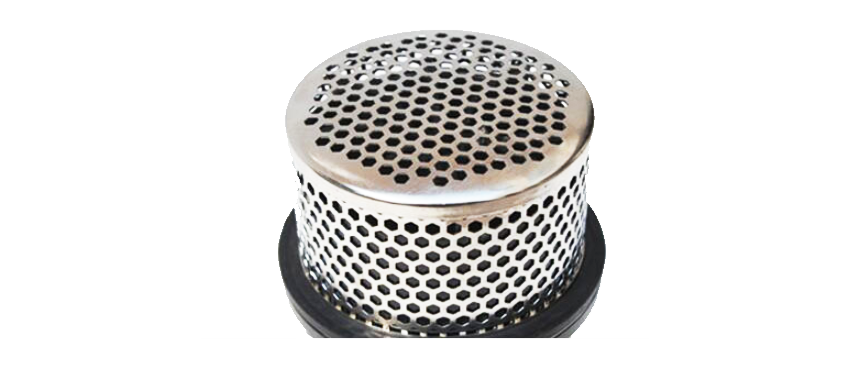

2.Filter
Thickness ss filter screem,hexagonal mesh,stable structure,water inlet from the circumference and bottom at the same time,low pressure loss ,easy to plug
3.Bearing
The special hard alloy shaft with corundum bearing has proven it's excellent wear resistance,can guarantee long-term accuracy of measurement

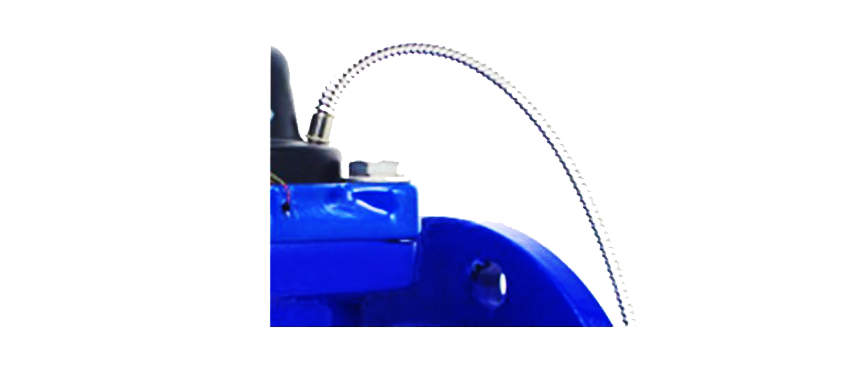

4.Out put
can be equipped with signal counter ,GPRS,a variety of pulse signal output
Working conditions:
Temperature: T30 for cold water meter, T90 for hot water meter
Water pressure grade:MAP10
Installation:horizontally
no requirement of straight pipe at inlet and outlet.
