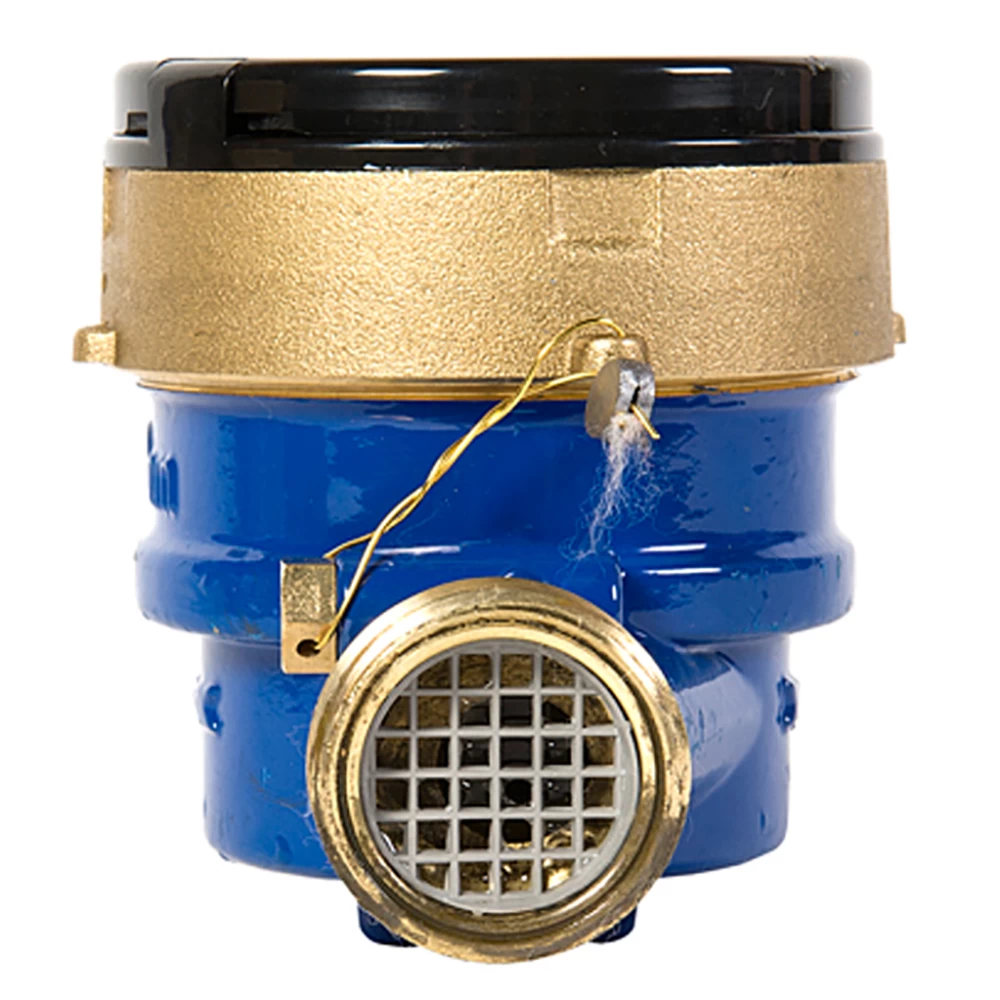

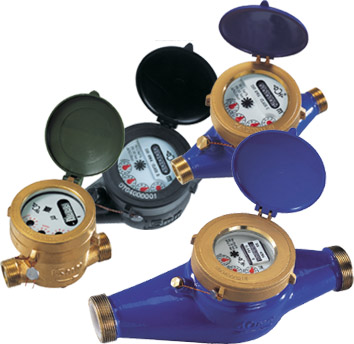

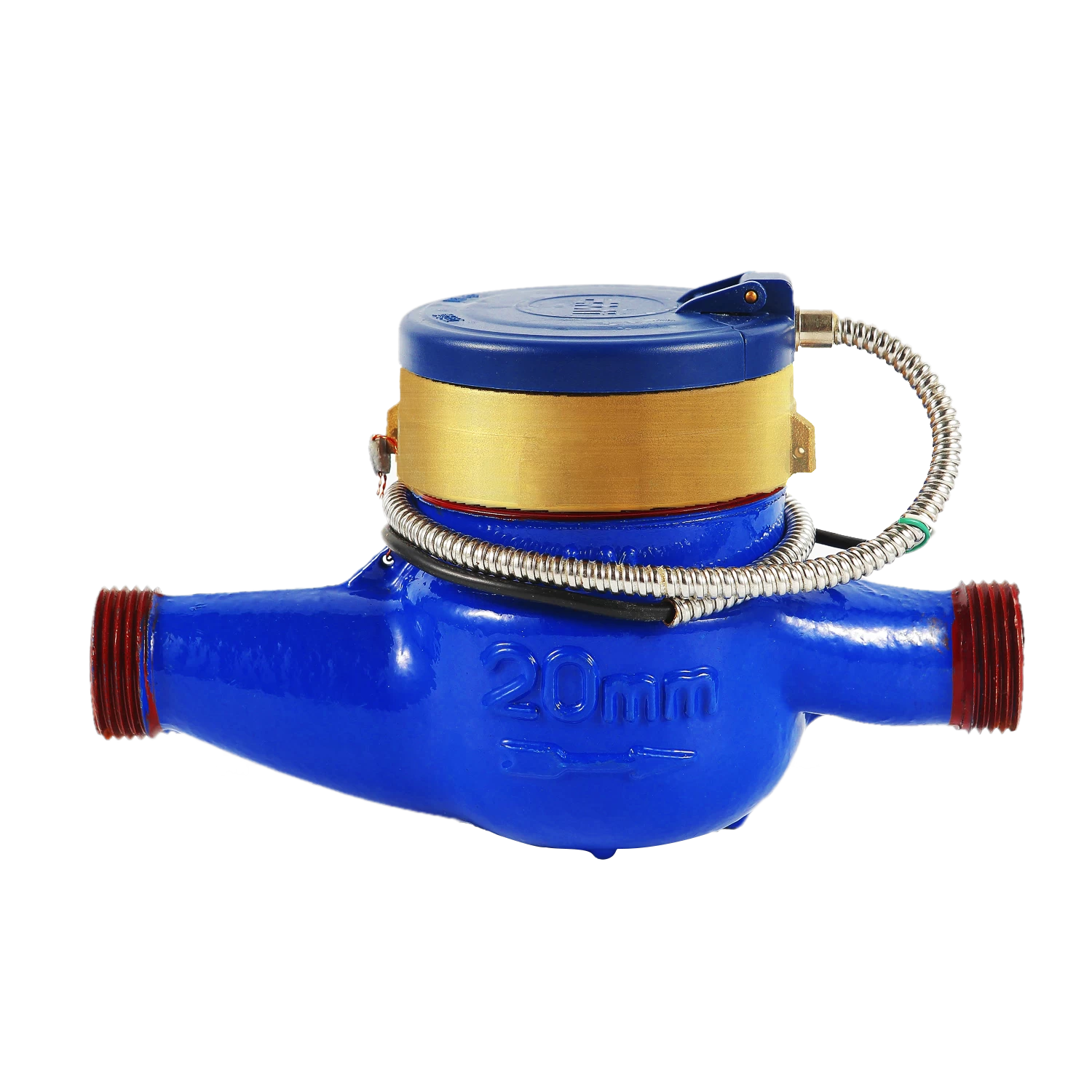

EMI residential multi jet water meter 1/2”- 3/4 ", dry-dial
Product description
Installation location: H - horizontal
Metrological class: B
Nominal size: DN 20 - DN 50
Max. operating pressure: PN = 1.6 MPa
Max. operating temperature: T = 30 st
Magnetic coupling
Key Features:
Multi jet, paddle and dry-water meter
Horizontal or vertical mounting position
Forged brass body/ cast iron body
Hermetically closed counter, sealed with "o" ring
Blade wheel mounted on a sapphire bearing
Stainless steel blade shaft
Rotary counter
Coarse dirt sieve on water meter inlet
Original design of a magnetic coupling with special magnets and magnetic shielding
Installation Requirements
The meter should be installed in horizontal position with the register face upwards
Pipeline must be flushed before installation
The meter should be constantly full of water during operation
Application
Measuring the volume of cold potable water passing through the pipeline
