Residential Solar System With Battery Storage

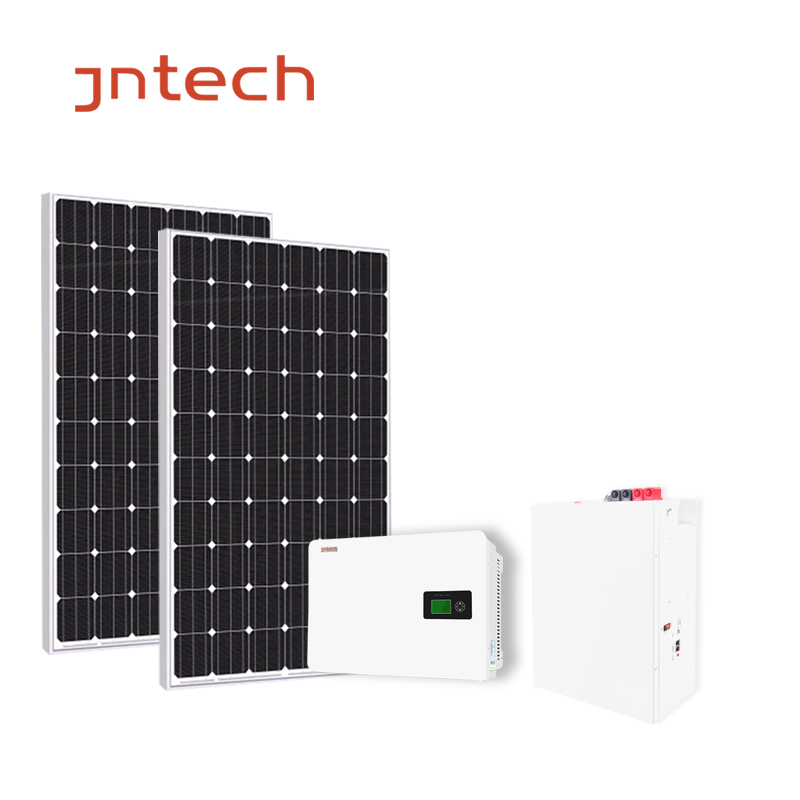

Residential Solar System:
- Photovoltaic Panels: Composed of multiple solar photovoltaic cells, these panels convert solar energy into direct current (DC) electricity.

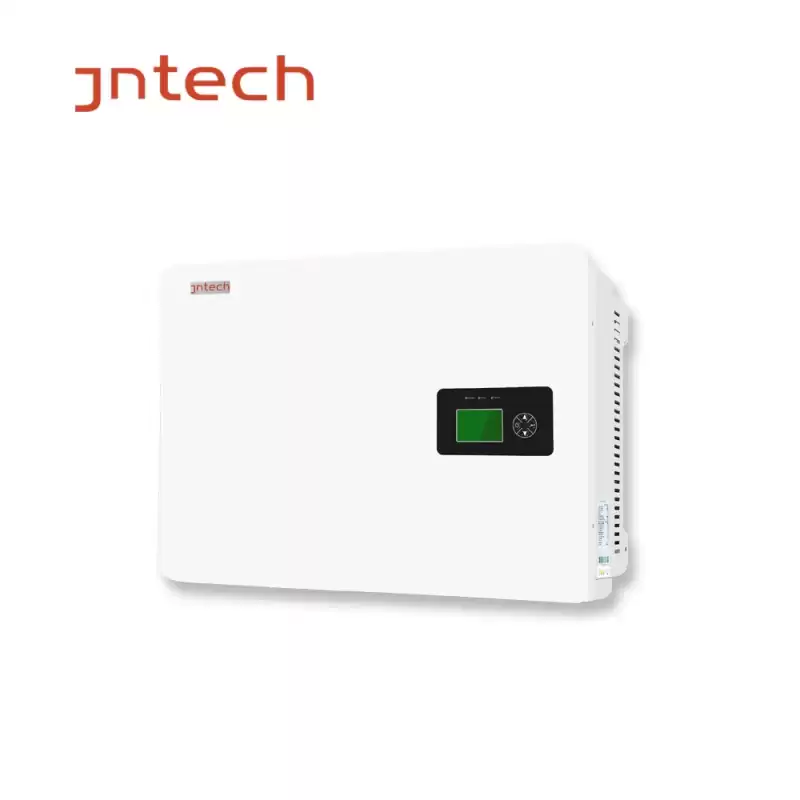

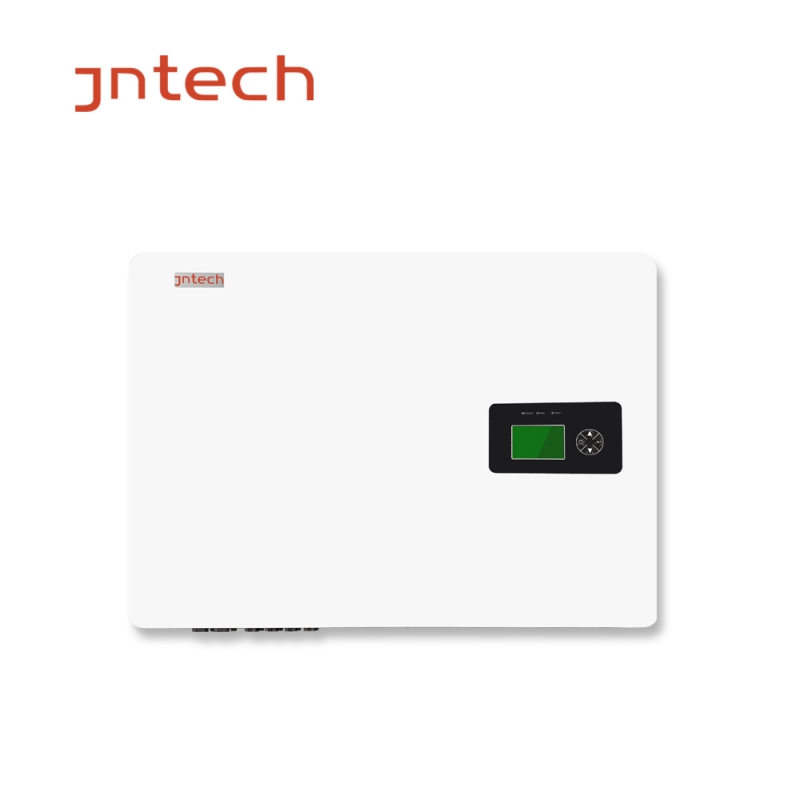

- Inverter: Converts the DC electricity into alternating current (AC) electricity, matching the voltage and frequency requirements of the grid.
- Circuit Protection Devices: Includes circuit breakers, grounding equipment, etc., to ensure electrical safety during system operation.
- Grid Connection Equipment: Connects the solar system to the grid, facilitating the transfer and exchange of electricity.
- Monitoring System: Real-time monitoring of the solar system's electricity generation, output power, and other parameters, as well as providing fault diagnosis and alarm functions.
