Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable

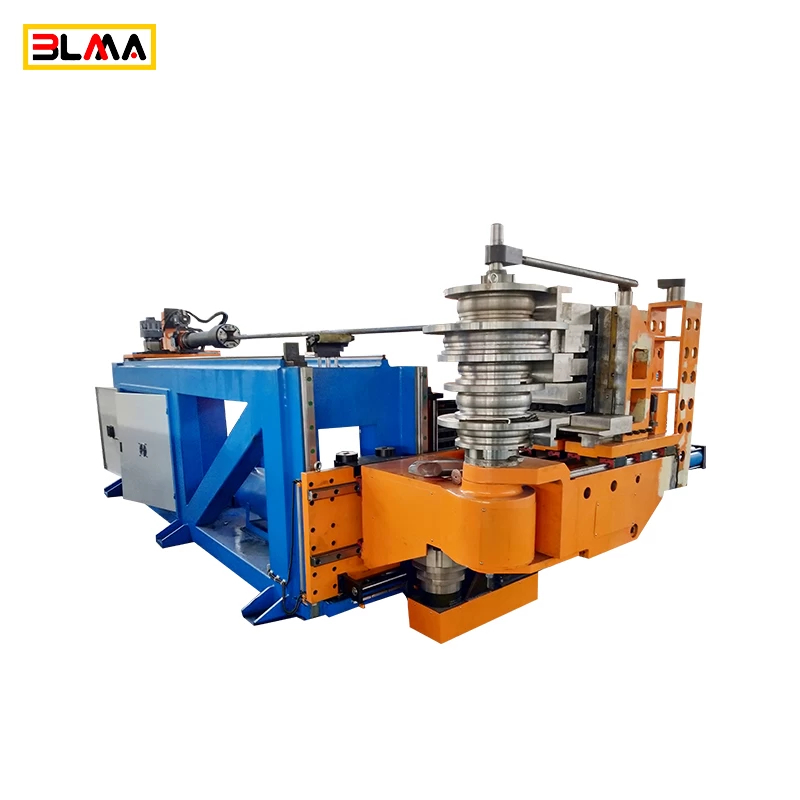

TProduct name: Retangle Tube Bending CNC GI Metal Pipe Bending Machine
Metal pipe bending machine Bending arm (C-axis) by servo motor;
Feeding (Y-axis) by servo motor;
Rotary (B-Axis) by servo motor;
Tooling shift left and right by servo motor;
Tooling shift up and down by servo motor;
Gi pipe bending machine Pressure die (guide die) by hydraulic, clamping die by hydraulic, Collet die by hydraulic, Mandrel by hydraulic;
Large diameter pipe bending machineOptional industrial PC assorted with touch screen display, capable of 3D preview and automatic programming.
The components of cnc bending pipe machine:
|
Name
|
Brand
|
|
PLC
|
Japan Mitsubishi
|
|
Touch screen
|
Taiwan Winview
|
|

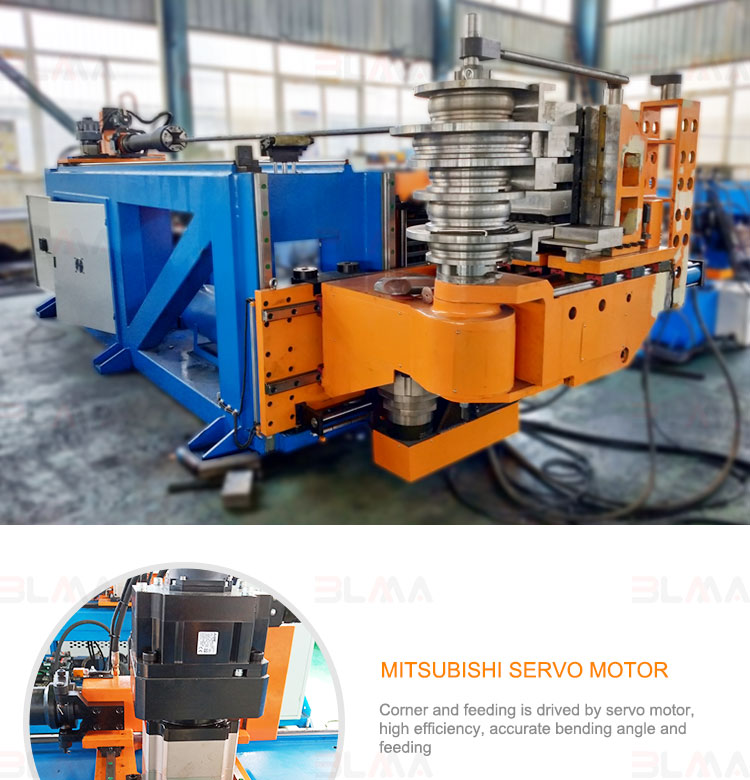

Servo motor
|
Japan Yaskawa/Mitsubishi
|
|
Servo driver
|
Japan Yaskawa/Mitsubishi
|
|
Reducer
|
Taiwan RV/Xingxing
|
|
Main electrics
|
France Schneider
|
|
Hydraulic motor
|
Taiwan Yuanbang
|
|
Valves
|
Taiwan Seven Ocean
|
|
Vane pump
|
Taiwan Kaida
|
|
Sealing element
|
Taiwan Dingji
|
|
Rack
|
Germany Atlanta
|
|
Linear guideway
|
Taiwan Hiwin
|
