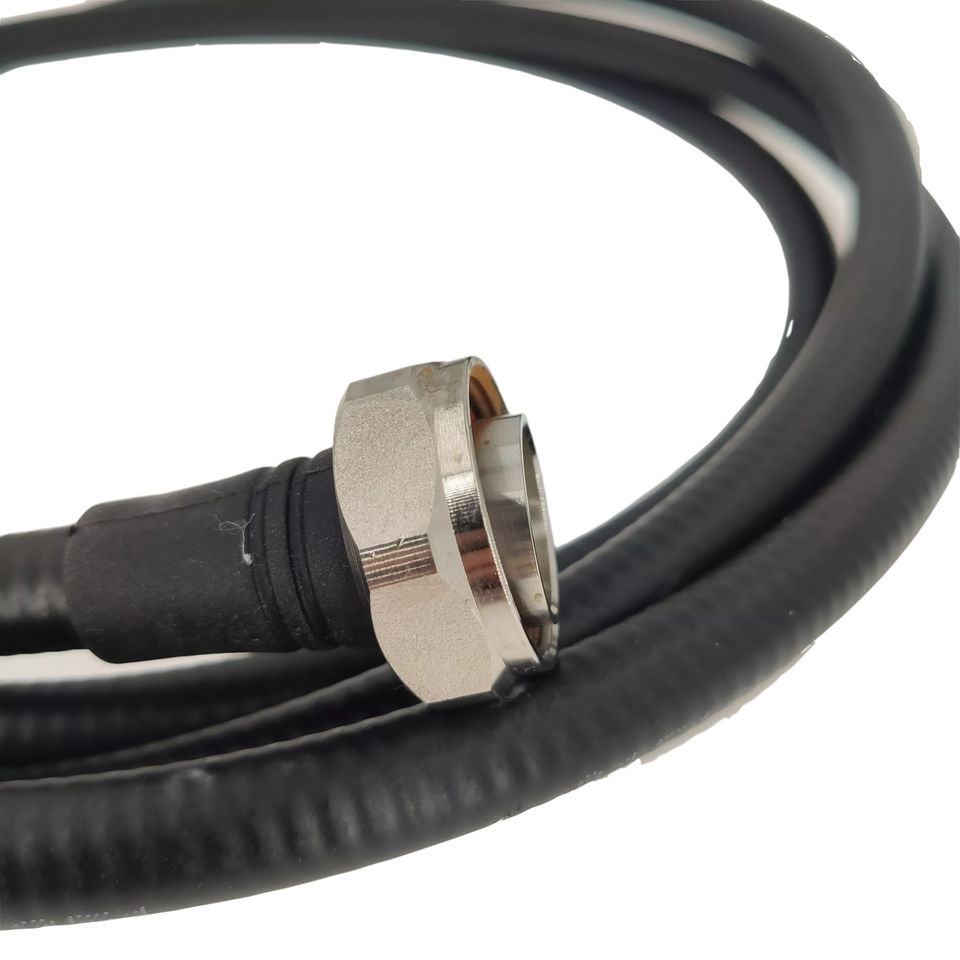

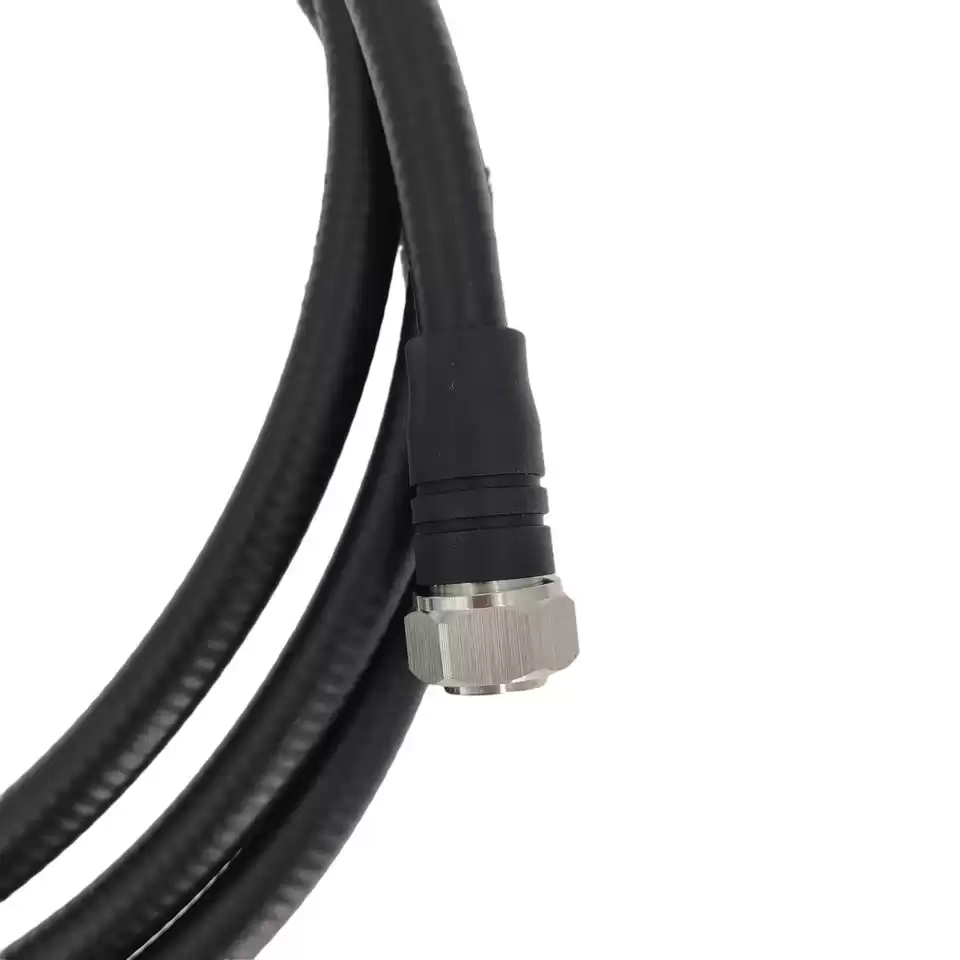

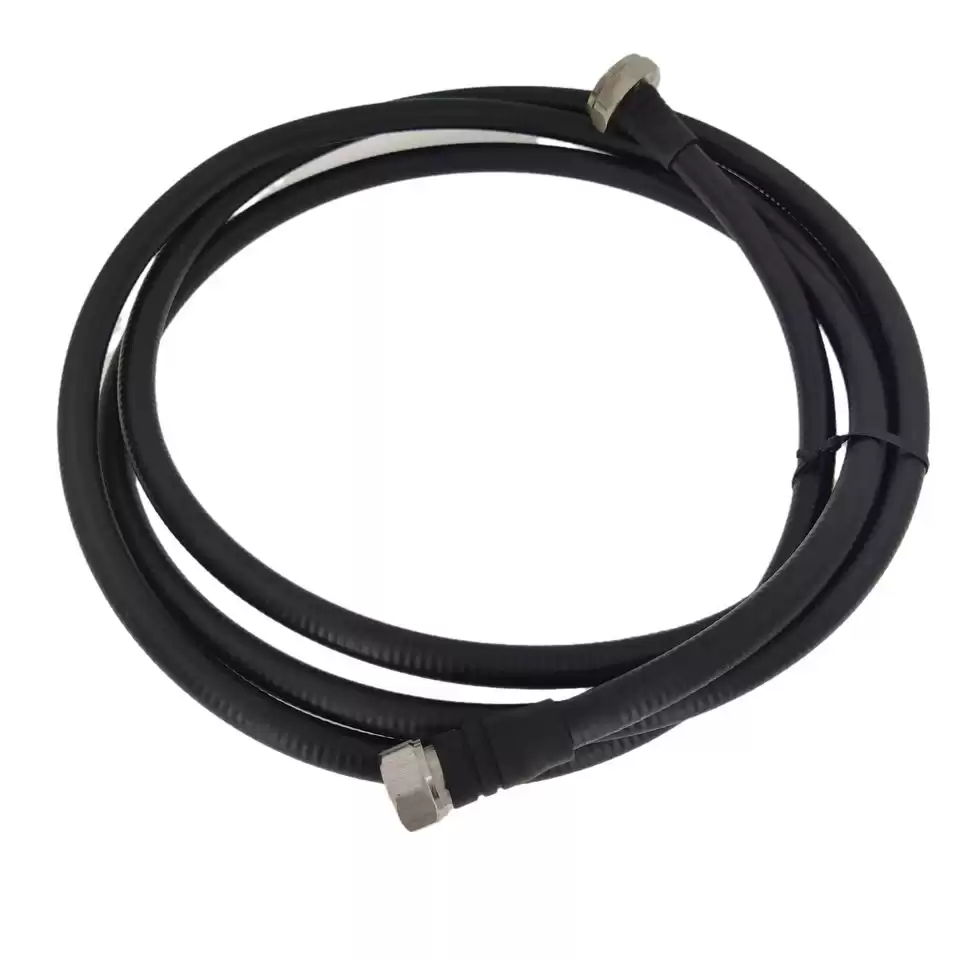

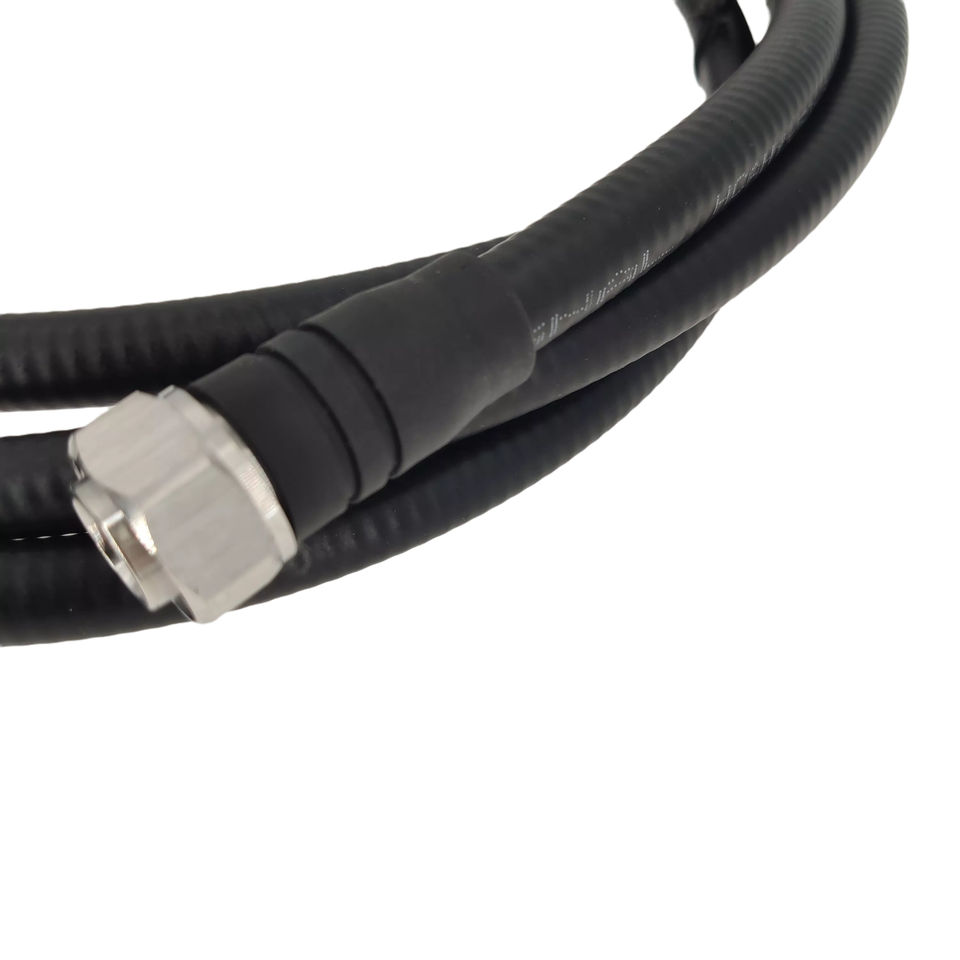

RF 1/2" 3m DINM-DINM LCF 1/2 Lm Flexible Jumper Cable for BTS
Product Description
|
Product Name
|
Jumper Cable / Cable Assembly
|
|
Part number
|
CA-12SF-DMDM-3000
|
|
Impedance
|
50Ω
|
|
Connector
|
N plug to N plug
|
|
Cable
|
1/2" SF Cable
|
|
Frequency
|
DC-3GHz
|
|
Return loss
|
23dB
|
|
Insertion loss
|
0.6dB@3GHz
|
|
PIM
|
-160dBc@2×20W
|
|
Power handling
|
500W
|
|
DC breakdown voltage
|
2500V RMS
|
|
Length
|
3 meters
|
|
Packing
|
1pcs/bag
|
|
Operating temperature range
|
-30°C to +70°C
|
|
Storage temperature range
|
-40°C to +85°C
|
|
Relative humidity
|
5%- 95%
|
|
Barometric pressure
|
55KPa -106KPa
|
|
Weight
|
0.6kg
|
Specification:
1 RF coaxial connector:
1.1 Material and Plating
Inner conductor: brass, plated with silver, Plating thickness: ≥0.003mm
Insulation dielectric: PTFE
Outer conductor: brass, plated with ternary alloy, Plating thickness≥0.002mm
1.2 Electrical & Mechanic Feature
Characteristics impedance: 50Ω
Frequency range: DC-3GHz
Dielectric strength: ≥2500V
Contact resistance: inner conductor≤1.0mΩ, Outer conductor≤0.4mΩ
Insulator resistance: ≥5000MΩ (500V DC)
VSWR: ≤1.15 (DC-3GHz)
PIM: ≤-155dBc@2x43dBm
Connector durability: ≥500 cycles
2 RF coaxial cable: 1/2” Super Flexible RF Cable
2.1 Material
Inner conductor: aluminum wire covered with copper (φ3.60mm)
Insulation dielectric: polyethylene foam (φ8.90mm)
Outer conductor: corrugated copper tube (φ12.20mm)
Cable jacket: PE (φ13.60mm)
2.2 Feature
Characteristics impedance: 50Ω
Standard capacitor: 80pF/m
Transmission rate: 83%
Min. single bending radius: 50mm
Tensile strength: 700N
Insulation resistance: ≥5000MΩ
Shielding attenuation: ≥120dB
VSWR: ≤1.15 (0.01-3GHz)
3 Jumper cable
3.1 Cable Component Size:
Total length of cable assemblies:
1000mm±10
2000mm±20
3000mm±25
5000mm±40
3.2 Electrical feature
Frequency Band: 800-2700MHz
Characteristics Impedance: 50Ω±2
Operating Voltage: 1500V
VSWR: ≤1.11 (0.8-2.2GHz), ≤1.18 (2.2-2.7GHz)
Insulation voltage: ≥2500V
Insulation resistance: ≥5000MΩ (500V DC)
PIM3: ≤-150dBc@2x20W
Insertion Loss:
Frequency
1m
2m
3m
5m
890-960MHz
≤0.15dB
≤0.26dB
≤0.36dB
≤0.54dB
1710-1880MHz
≤0.20dB
≤0.36dB
≤0.52dB
≤0.80dB
1920-2200MHz
≤0.26dB
≤0.42dB
≤0.58dB
≤0.92dB
2500-2690MHz
≤0.30dB
≤0.50dB
≤0.70dB
≤1.02dB
5800-5900MHz
≤0.32dB
≤0.64dB
≤0.96dB
≤1.6dB
Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition I
Moisture Resistance Test Method: MIL-STD-202F, Method 106F
Thermal Shock Test Method: MIL-STD-202F, Method 107G, Test Condition A-1
3.3. Environment feature
Waterproof: IP68
Operation temperature range: -40°C to +85°C
Storage temperature range: -70°C to +85°C
