7/16 DIN is a high power RF connector widely used in antenna systems or base stations that supplies better performances concerning interference and intermodulation rejection. The inner contact on the 7/16 DIN connector measures 7mm while the outer contact on the connector measures 16 mm.

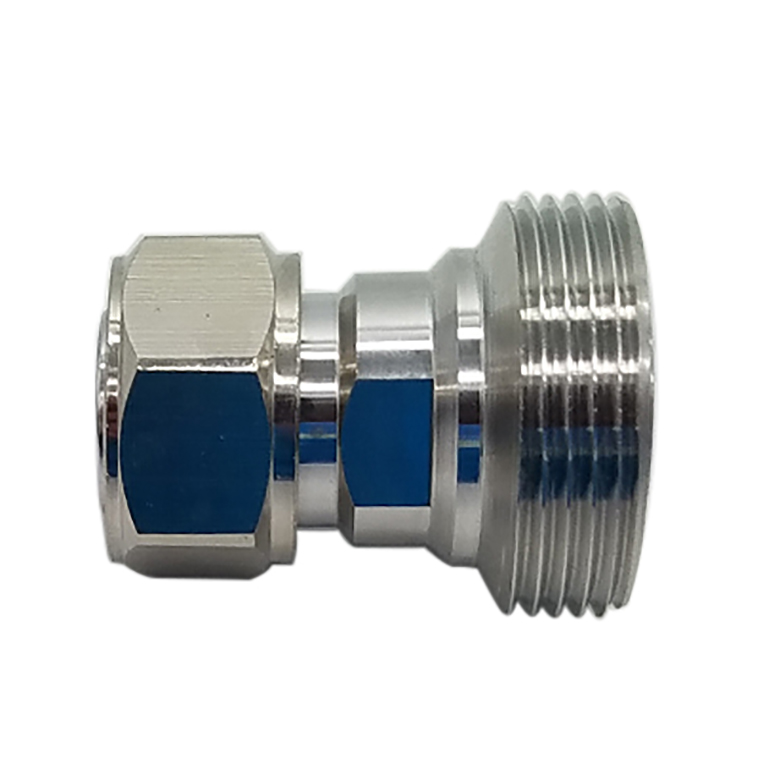

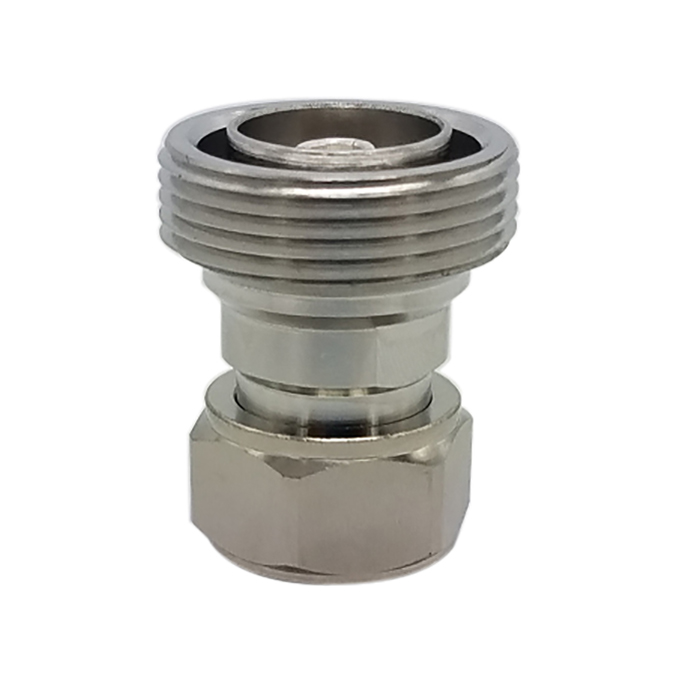

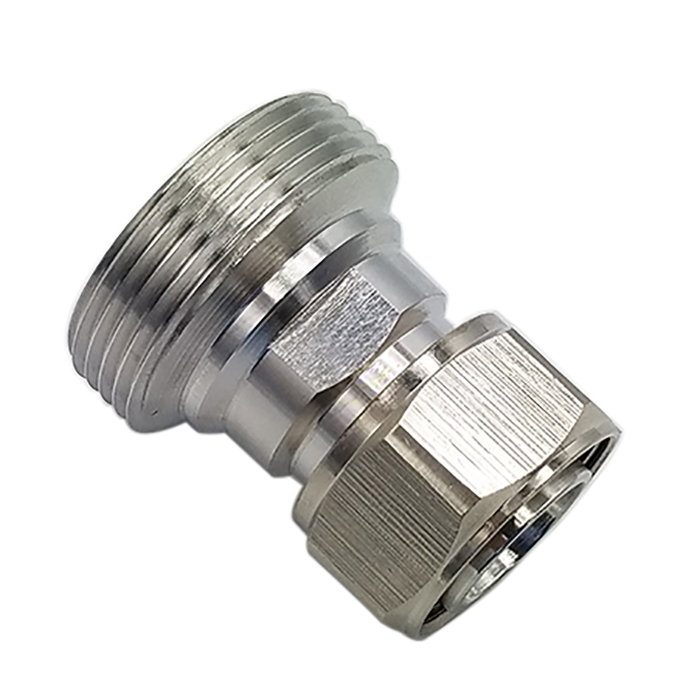

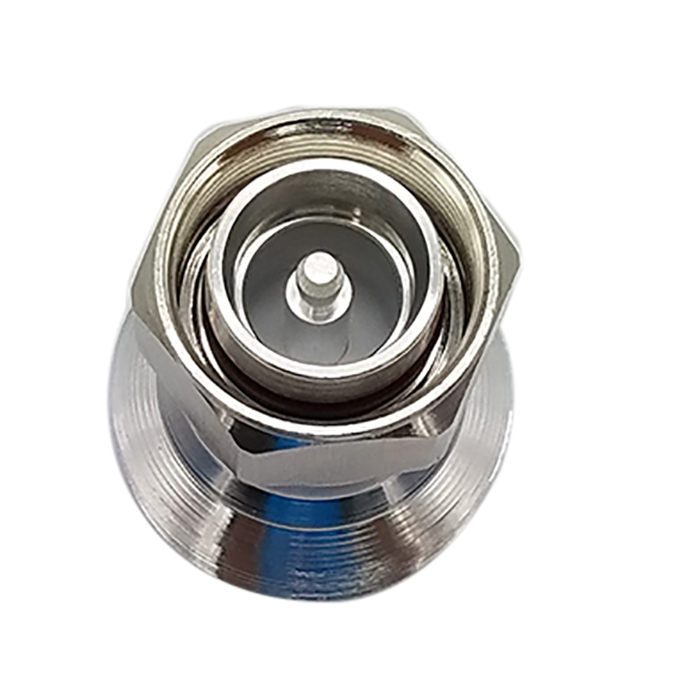

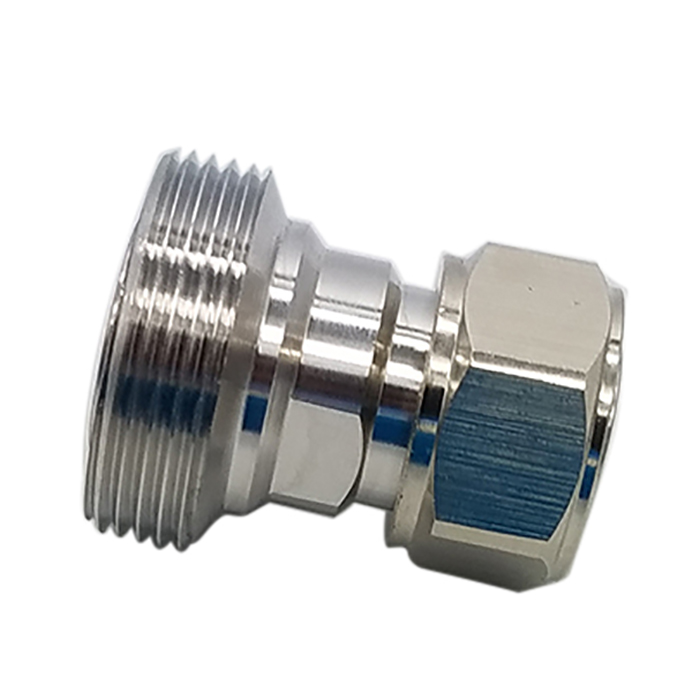

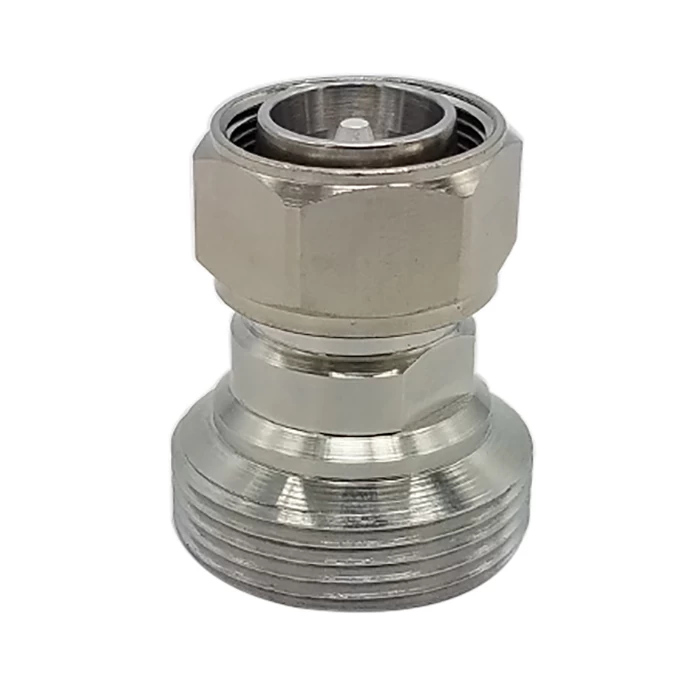

RF Coaxial Adapter 4.3/10 Male Connector to Female 7/16 Connector have below features:
Designed to minimize signal distortion from inter modulation;
Screw on coupling ensure high durability and allow toolless application;
Excellent performance up to 5.2GHz frequency.
Product Features
RF Adapter, DIN Female to 4.3-10-Male Adapter is Low VSWR and excellent impedance matching
Technical &Mechanical Specifications
|
Model No.
|
MPRC-DF-41M
|
|
Interface
|
According to IEC 60169-4
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-3GHz
|
|
Dielectric withstanding Voltage
|
≥4000V RMS,50Hz,at sea level
|
|
Dielectric Resistance
|
≥10000M ohms
|
|
Contact Resistance
|
Center Contact≤1.0M ohms
Outer Contact≤0.3M ohms
|
|
VSWR
|
≤1.10
|
|
Mechanical
|
Durability
|
Mating cycles≥500
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-40~+85
|
Mechanical Drawing (mm)
