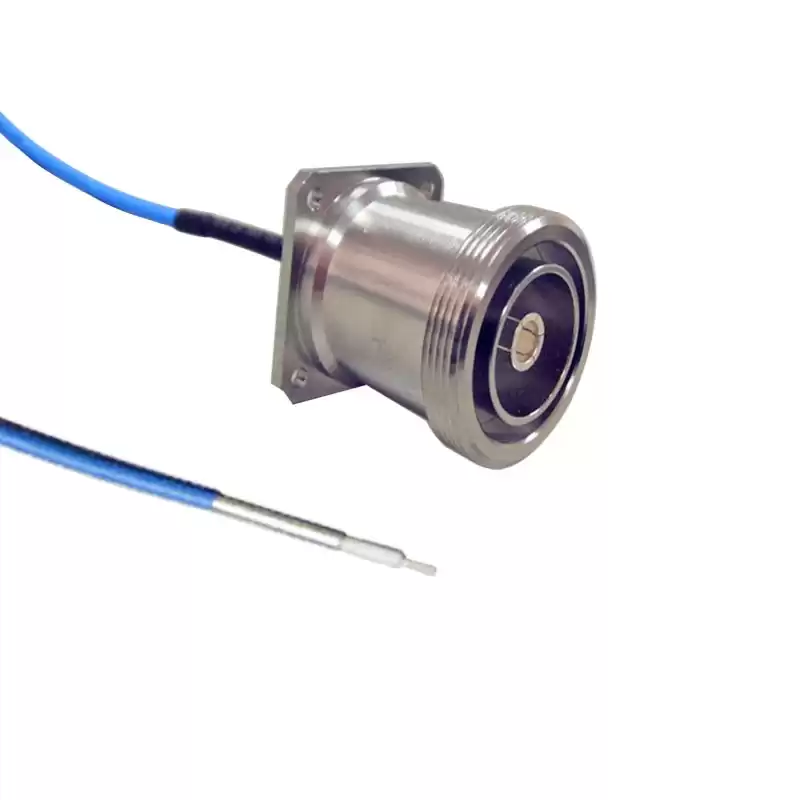

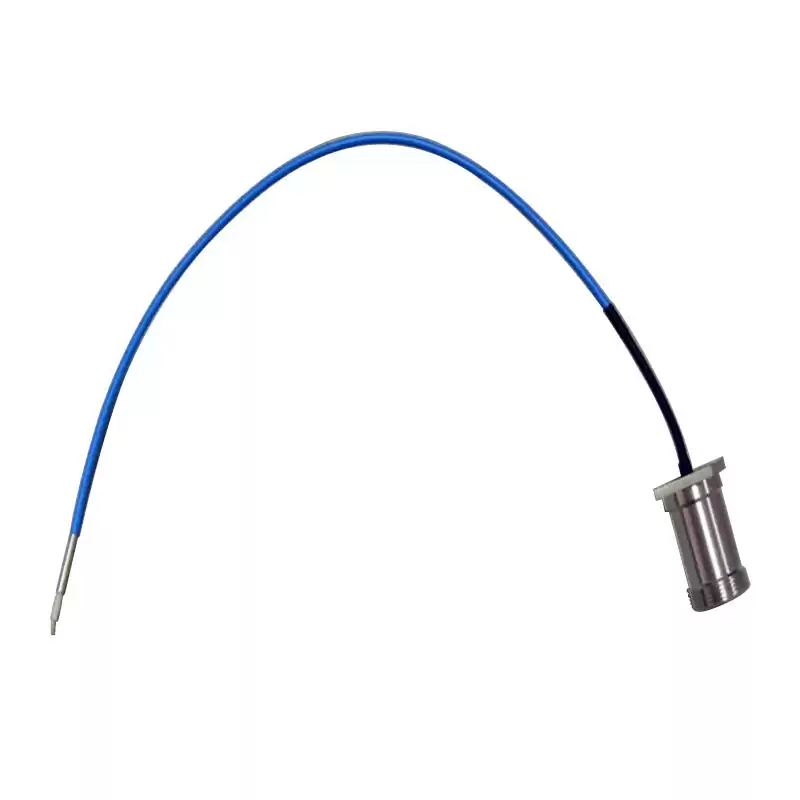

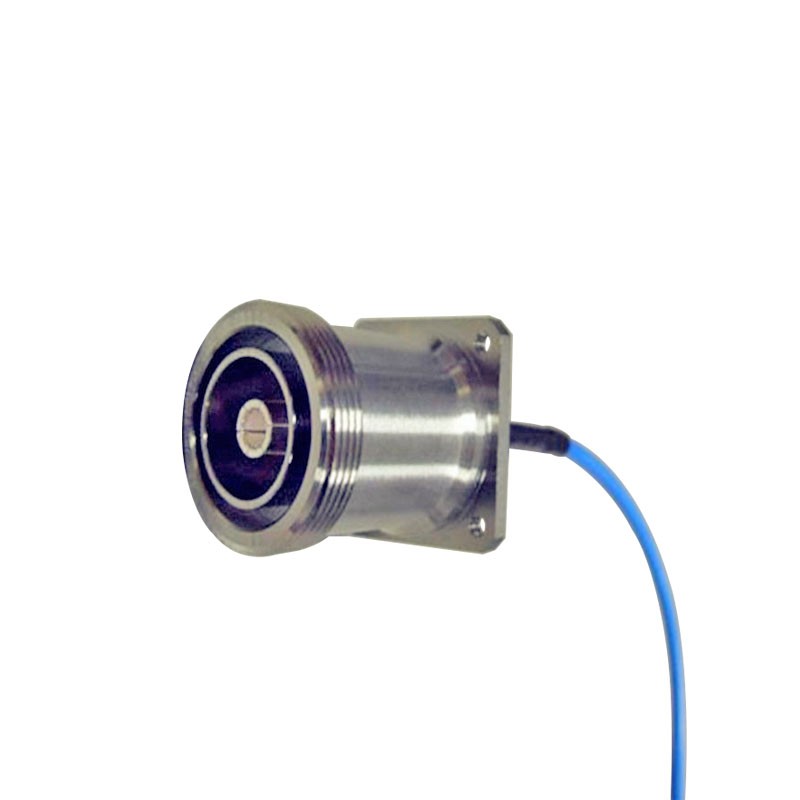

RF Coaxial 7-16 DIN Female 4 Hole Flange Connector with .086" Cable Assembly
The 7-16 DIN with cable assembly can use flexible or corrugated coaxial cable such as TFT402, LMR-240 and 1/4" Superflexible; the body of 7-16 DIN with cable assembly is right angle or straight connectors which is female with cable or male with cable. ROHO's 7-16 DIN with cable assembly is a low PIM cable. This 7-16 DIN male to N male cable assembly uses a 50ohm straight 7-16 DIN for connector 1 and a 50ohm Straight 7-16 DIN type for connector 2, Cable is 50ohm .086".
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
7-16 DIN |
| Connector 1 Style |
Str Female |
| Cable Type |
.086" Cable |
| Connector 2 Series |
- |
| Connector 2 Style |
- |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
6 GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Multi-Carrier Communication Systems
- Low PIM Applications
- Distributed Antennas Systems (DAS)
- Outdoor Installations
