Product Name

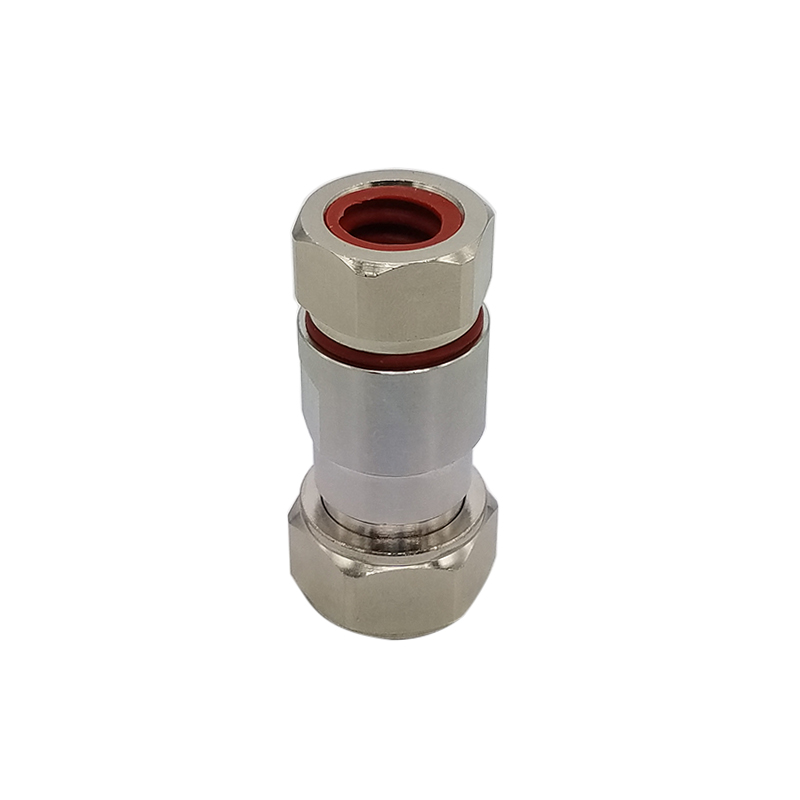

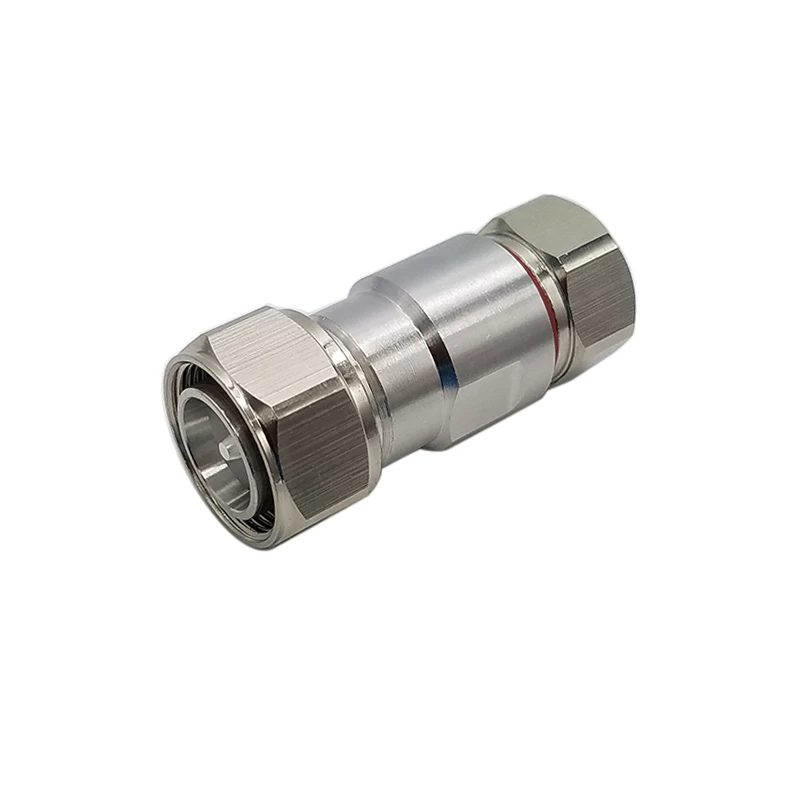

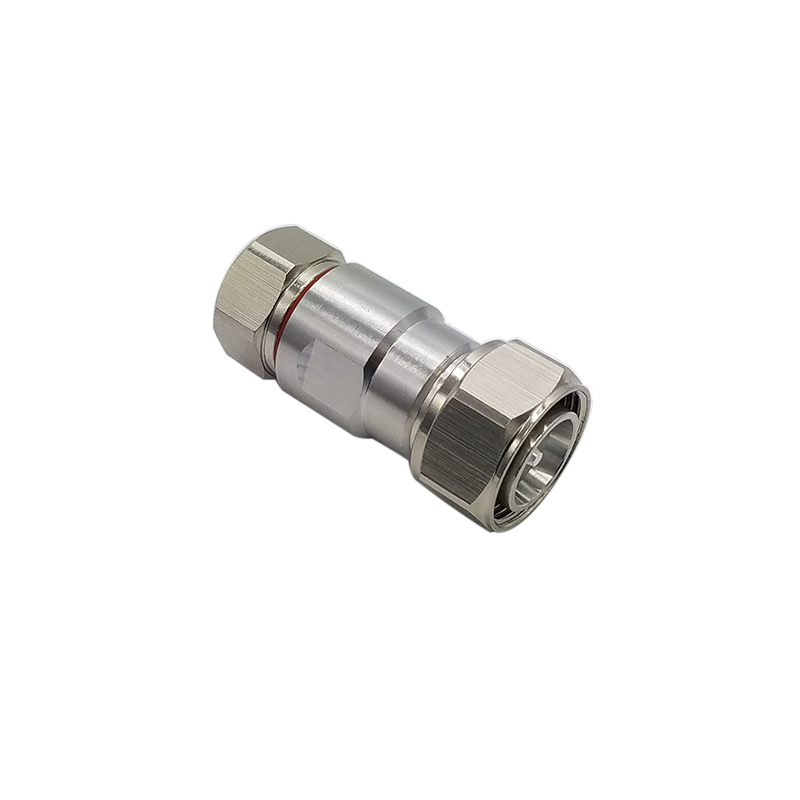

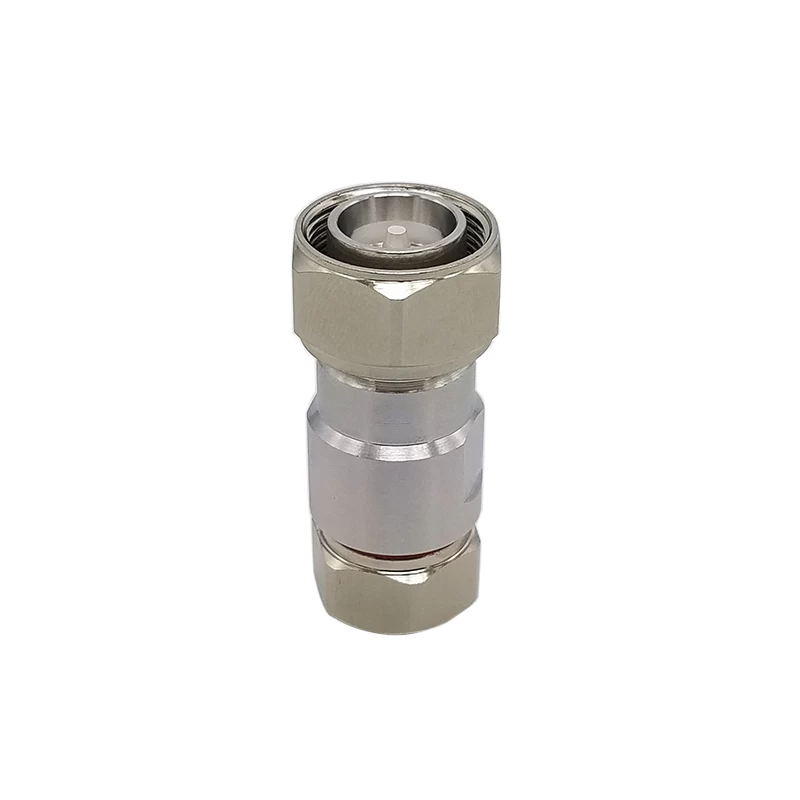

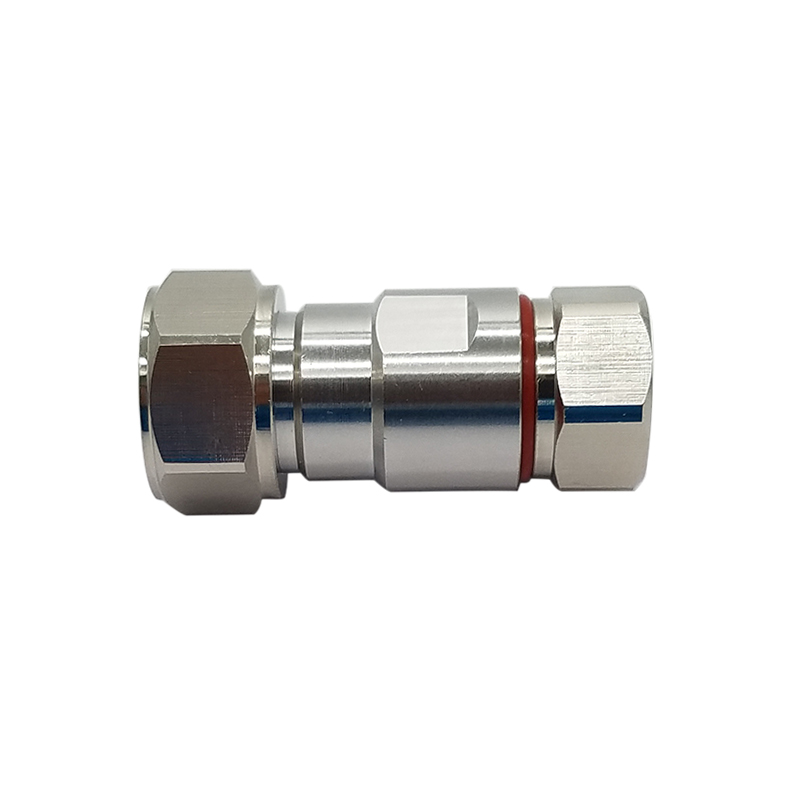

4.3-10-Male connectors designed for the wireless market and are ideal for applications of DAS/Base Stations/Wireless Infrastructure, which requiring low passive intermodulation, or PIM.
4.3-10-Male RF Coaxial connectors offer the same, robust design as 7/16 connectors but are smaller and up to 40% lighter, allowing for much more dense, lighter weight applications. Separate electrical and mechanical components yield very stable PIM performance regardless of coupling torque, allowing for easier installation. Silver plated contacts and White Bronze plated bodies offer a high-degree of conductivity, corrosion resistance, and durability.
Product Features
1. Save installation time, small size, stable Third-order Intercept Point, low cost
2. Excellent electrical performance
3. Very low PIM
Technical &Mechanical Specifications
|
Model No.
|
MN-C-41M
|
|
Interface
|
According to IEC 60169-4
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-3GHz
|
|
Dielectric Withstanding Voltage
|
≥4000V RMS,50Hz,at sea level
|
|
Dielectric Resistance
|
≥10000M ohms
|
|
Contact Resistance
|
Center Contact≤1.0M ohms
Outer Contact≤0.3M ohms
|
|
VSWR
|
≤1.10
|
|
PIM
|
≤-150dBc@2*43dBm
|
|
Mechanical
|
Durability
|
Mating cycles≥500
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-40~+85
|
|
Waterproof
|
IP65
|
Mechanical Drawing (mm)
