Product Name
N connectors are available with the impedance of 50Ω and 75Ω.The frequency range extends to 18GHz,depending on the connector and cable type.The screw-type coupling mechanism provides a sturdy and reliable connection.RF Coaxial Connector styles are available for flexible,conformable.semi-rigid and corrugated cable types.Both crimp and clamp cable termination processes are used for this series.
Product Features

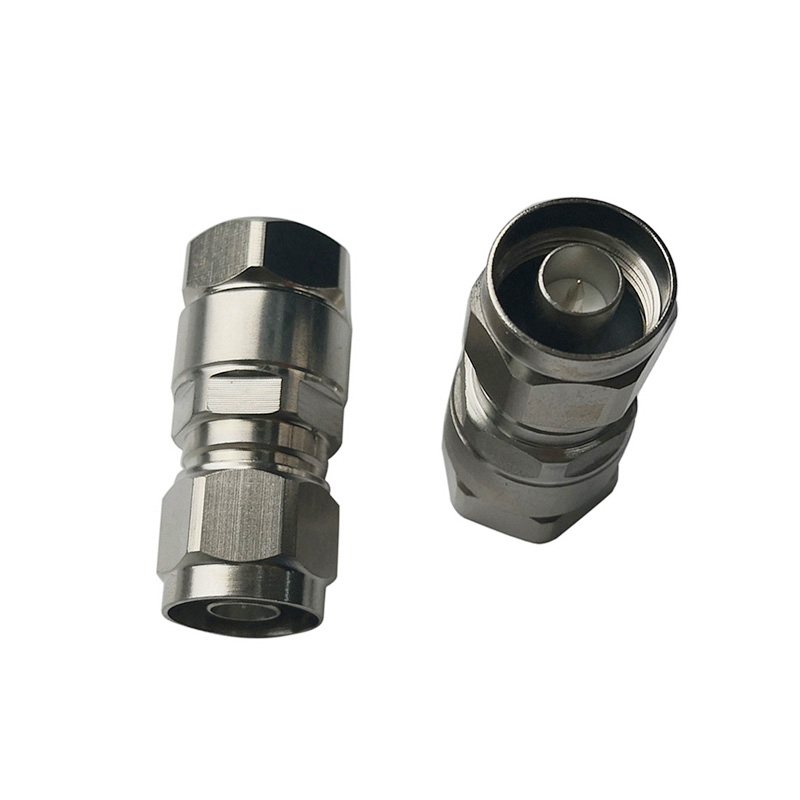

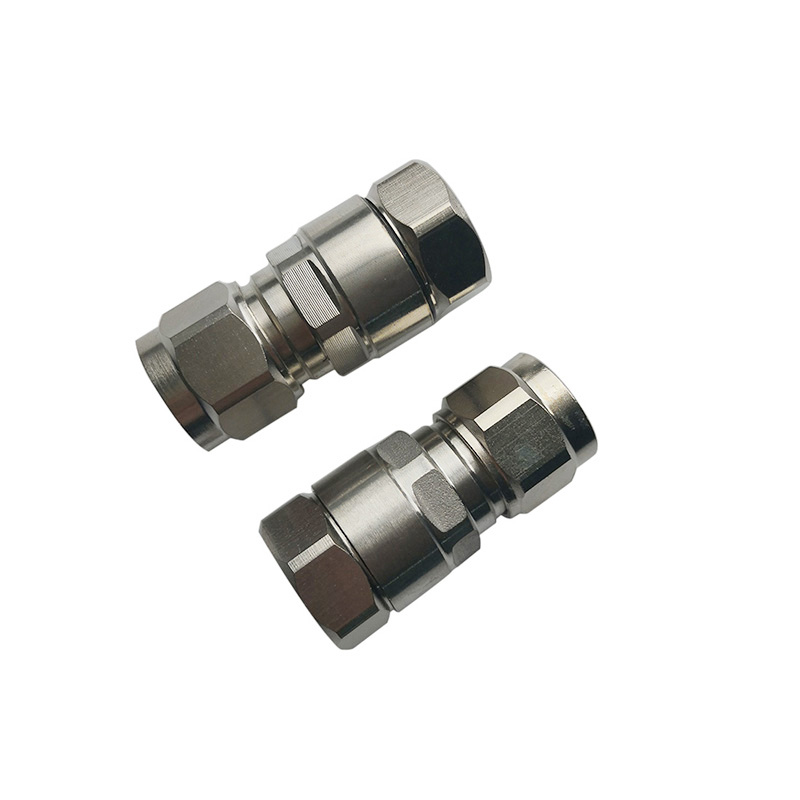

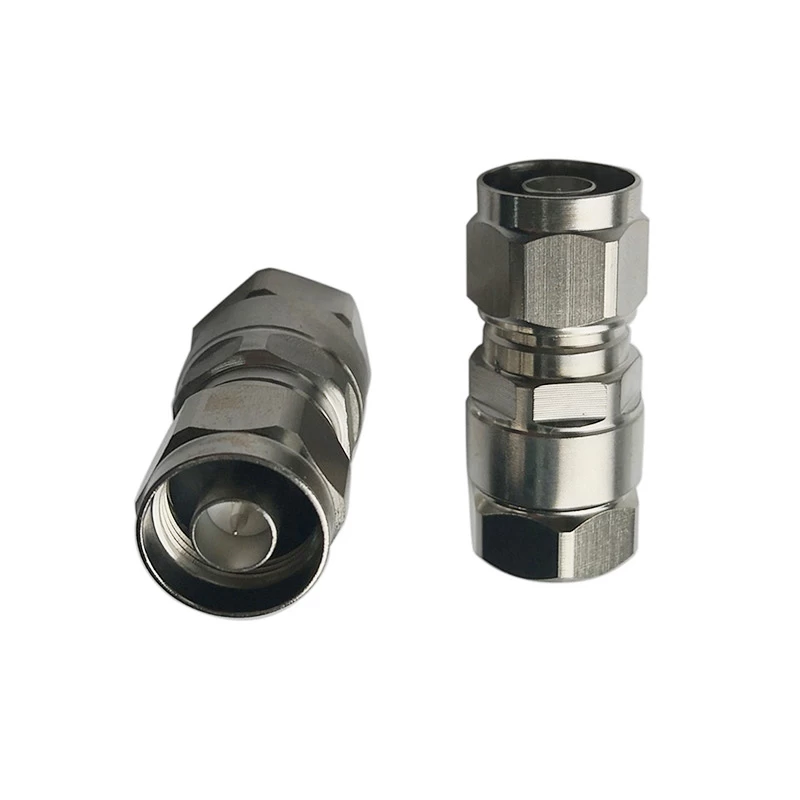

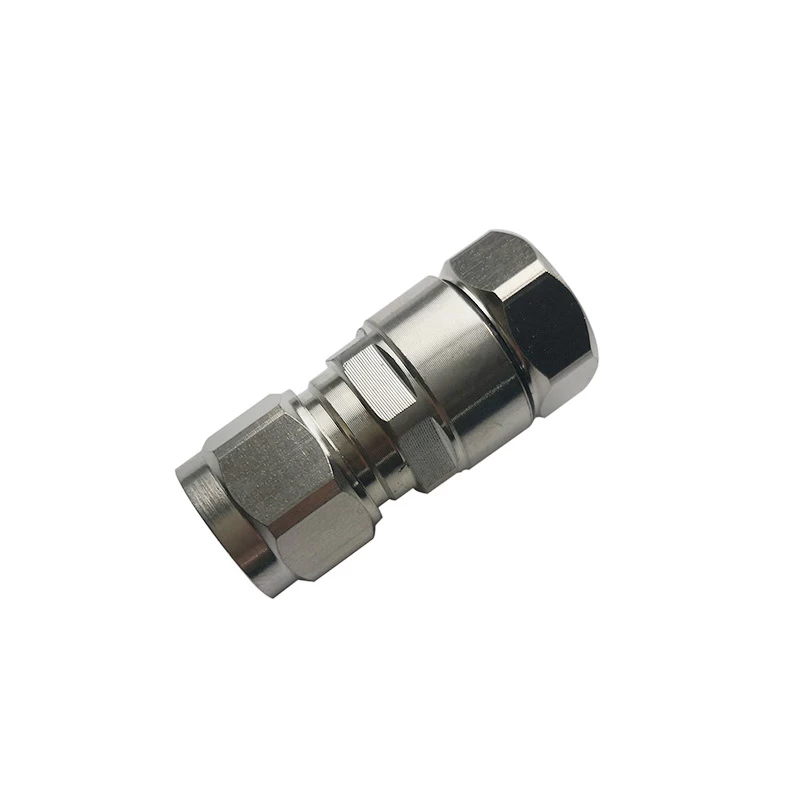

RF coaxial connector, N male connector for 1/2 cableis Low VSWR and excellent impedance matching,supports-105/-120/-150dBc PIM Rating.
Technical &Mechanical Specifications
|
Model No.
|
MNC-1/2-NM
|
|
Interface
|
According to IEC 61169-16
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-3GHz
|
|
Dielectric Withstanding Voltage
|
≥1500V RMS,50Hz,at sea level
|
|
Dielectric Resistance
|
≥10000M ohms
|
|
Contact Resistance
|
Center Contact≤1.0M ohms
Outer Contact≤0.3M ohms
|
|
VSWR
|
≤1.15
|
|
PIM
|
≤-150dBc@2*43dBm
|
|
Mechanical
|
Durability
|
Mating cycles≥500
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-40~+85
|
|
Waterproof
|
IP65
|
Mechanical Drawing (mm)
