RF RA MCX Male to Bushing with RG316 Cable Assembly

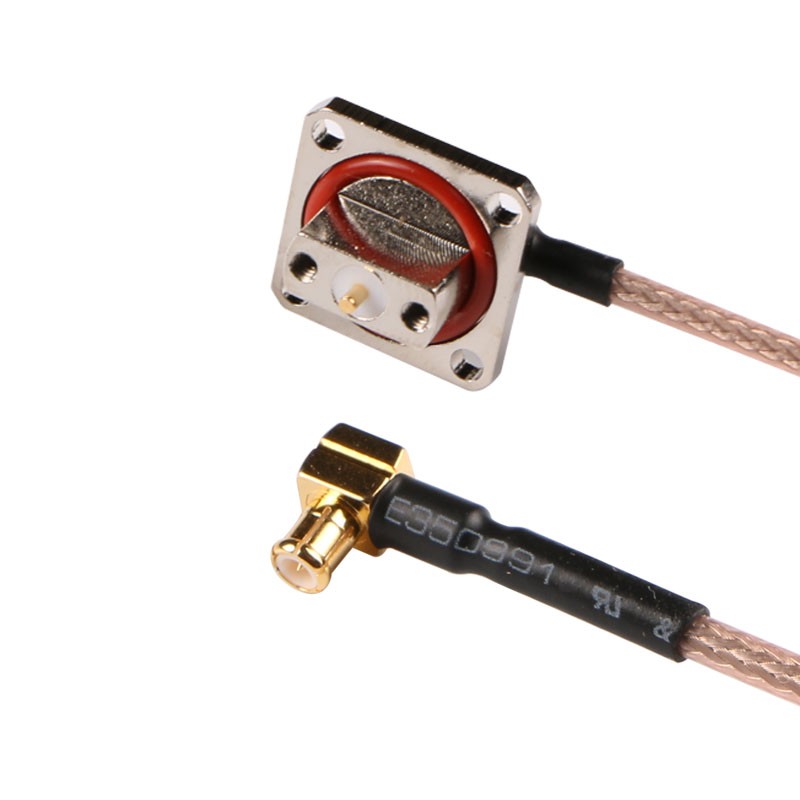

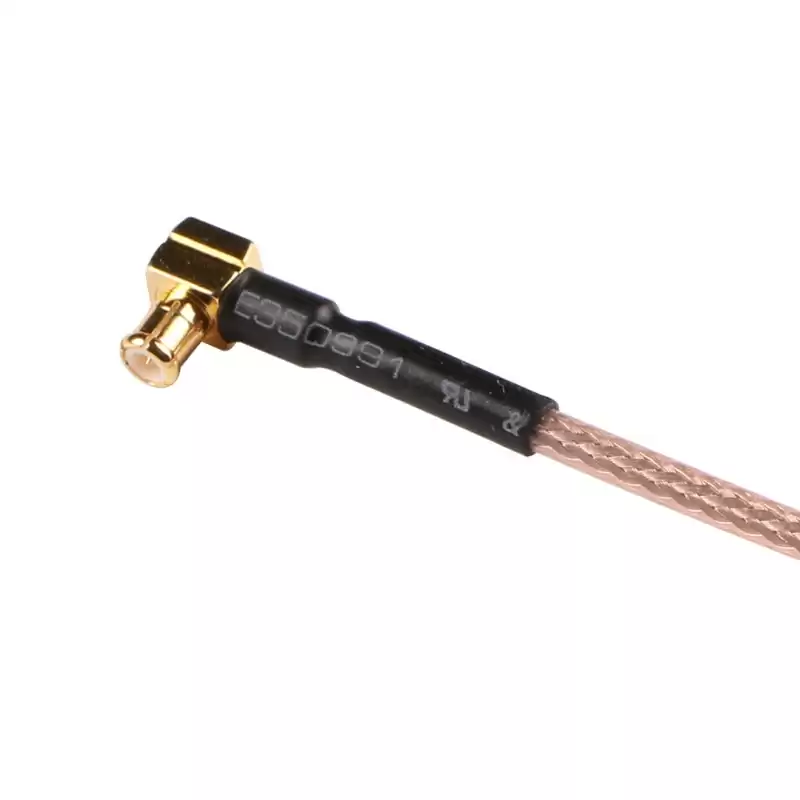

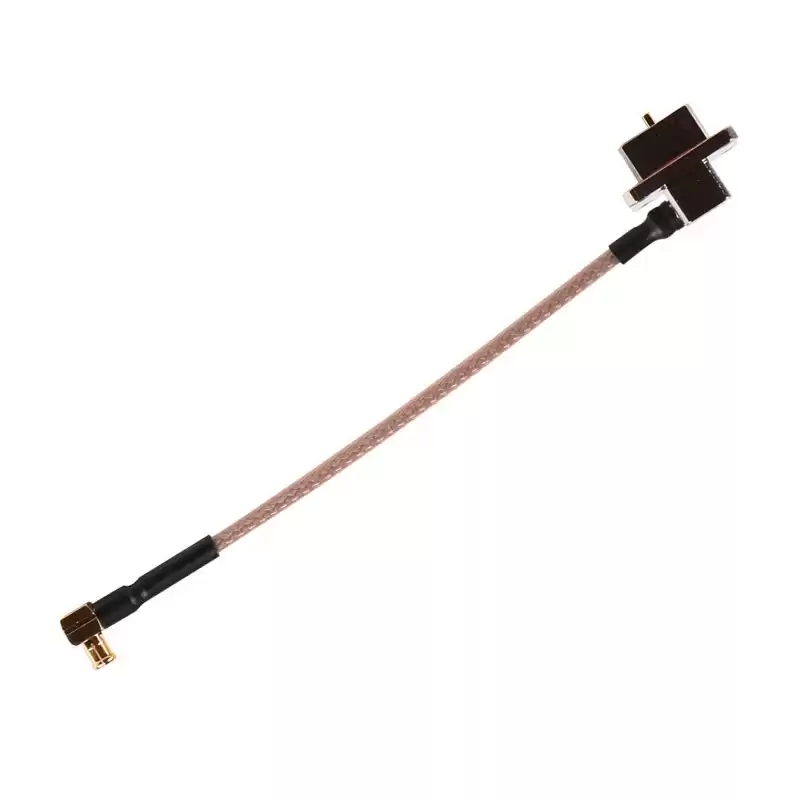

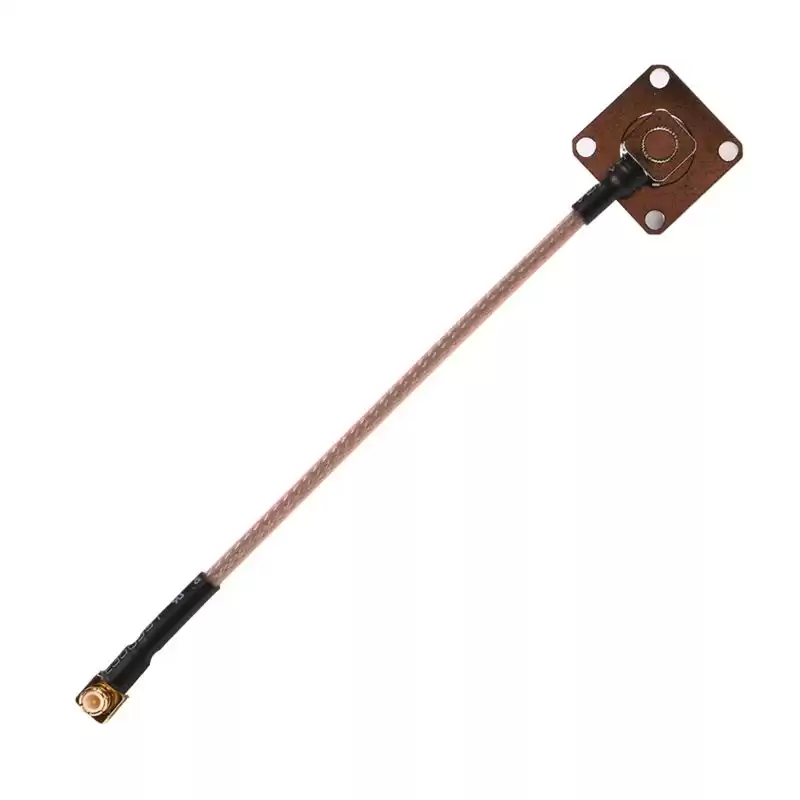

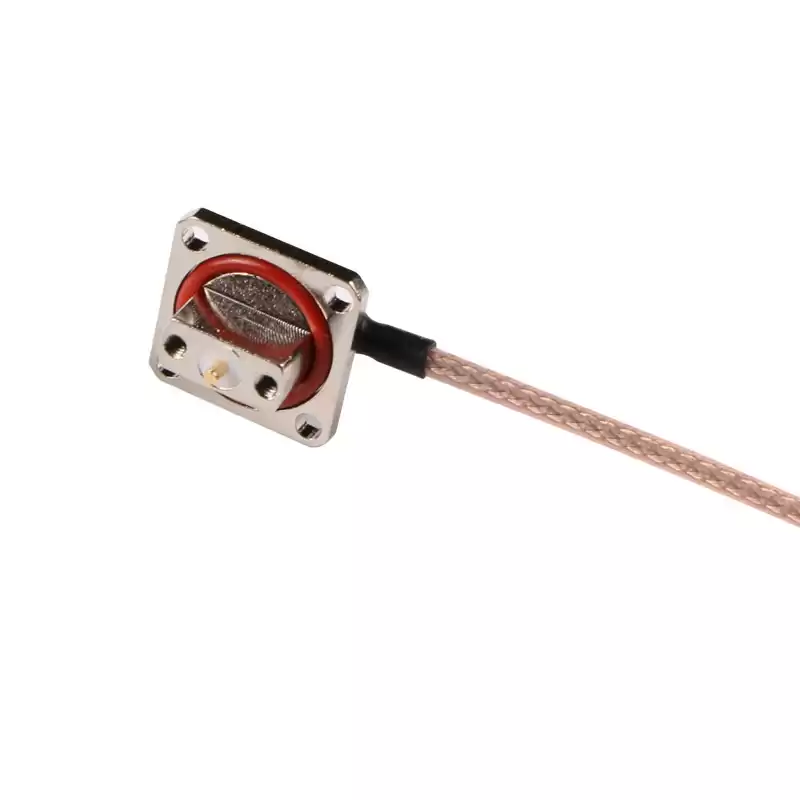

The MCX cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as RG174, RG178, RG188, RG196, RG316 or RG400 cable; the body of MCX to Bushing cable assembly is right angle or straight connectors which is plug to plug gender. This MCX male to Bushing cable assembly uses a 50ohm right angle MCX for connector 1 and a 50ohm 4 hole panel bushing for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
MCX |
| Connector 1 Style |
Right Angle Male |
| Cable Type |
RG316 |
| Connector 2 Series |
Bushing |
| Connector 2 Style |
/ |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
NO |
| Max Frequency |
3 GHz |
| Working Temperature |
-65°C to +165°C |
| ELECTRICAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Aerospace,Defense
- Telecom,Broadcast
- Industrial,Medical
- Instrumentation
