Advantages

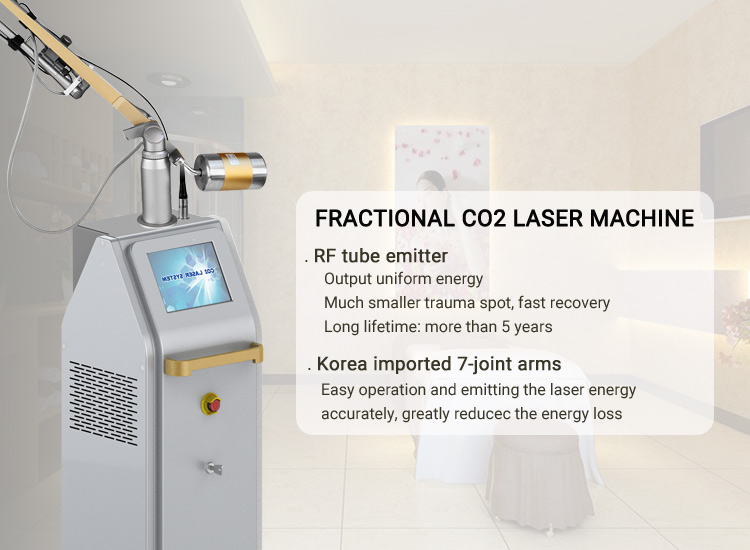

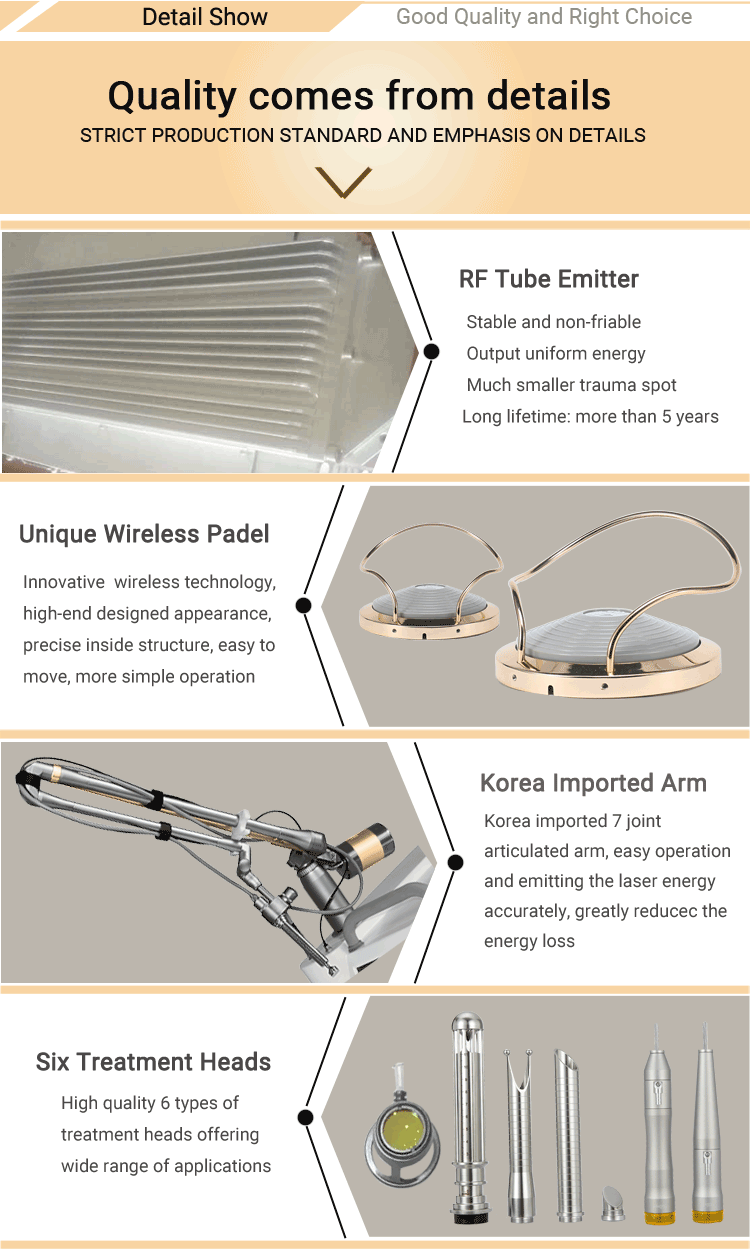

1. Using stable and non-friable RF tube emitter
- Stable and non-friable
- Output uniform energy
- Much smaller trauma spot
- Long lifetime: more than 5 years

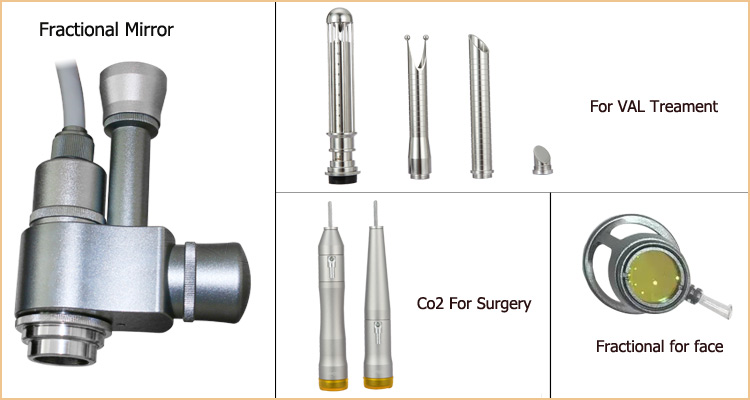

2. 3 in 1 System and six treatment heads, one machine offering wide range of applications
- Fractional CO2 Laser for skin rejuvenation and scar removal
- Normal CO2 laser for surgery operation
- Vaginal mode for vaginal tightening and vaginal health

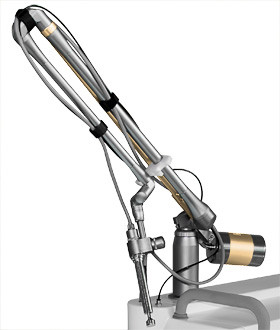

3. Korea imported 7 joint articulated arm,easy operation and emitting the laser energy accurately, greatly reduce the energy loss
4. Friendly operation system, density, depth, and shape, all can be adjusted, very convenient.
5. Use scanning field lens instead of focusing lens for better evenness for scan in a flat. The diameter of spot only 0.1mm.
6. Adopting Germany imported scan mirror, so the accuracy of the treatment is very high and the light refracting speed is fast
Working Parameters
|
Laser Type
|
Fractional co2 laser
|
|
Laser Wavelength
|
10.6µ m
|
|
Machine power
|
300w
|
|
Laser Energy
|
15w
|
|
Light Conduction Arm
|
Korea imported 7 joint-arm
|
|
Tube Type
|
RF Tube Emitter
|
|
Working Modes
|
Fractional scan & ordinary & normal & virginal
|
|
Number of Scan Graphics
|
6
|
|
Scan mode
|
4
|
|
Dots quantity
|
Maximum 400
|
|
Laser Pulse width
|
0.02-0.99 s
|
|
Cooling System
|
water cycle cooling system + wind air
|
|
Beam divergence angle
|
0.4 mrad
|
|
Screen
|
8 inch LCD color touched screen
|
|
Machine Material
|
Metal
|
Parameter of Korea imported 7 joint-arm
|
|
Name
|
CO2 Weight Pole Arm
|
|
Color
|
Metallic Silver & Rich Gold
|
|
Handpiece Arm
|
7 Joints, 360 free rotation
|
|
Delivery Length
|
about 1500mm
|
|
Clear Aperture
|
10.8mm
|
|
Energy
|
30W/cm2
|
|
Original area
|
Korea
|
|
Accessories
|
F-50/F-10 Surgical Handpiece, Aiming Set.
|
|
Packing Dimension
|
905mm x 305mm x 160mm
|
Treatment advantages
1. Minimally invasive, virtually painless treatment
2. Comfortable treatment for controlled safety and accuracy
3. Maximum precision with CO2 laser, the proper wavelength and perfect pulse
4. Quick and efficient delivery of fractionated laser energy split into micro pixels
6. Excellent patient satisfaction and long term clinical success
7. The lasting effect of skin resurfacing can be an improved quality of life and deeply enhanced self esteem.
8. Safe, Accurate and Remarkably Effective

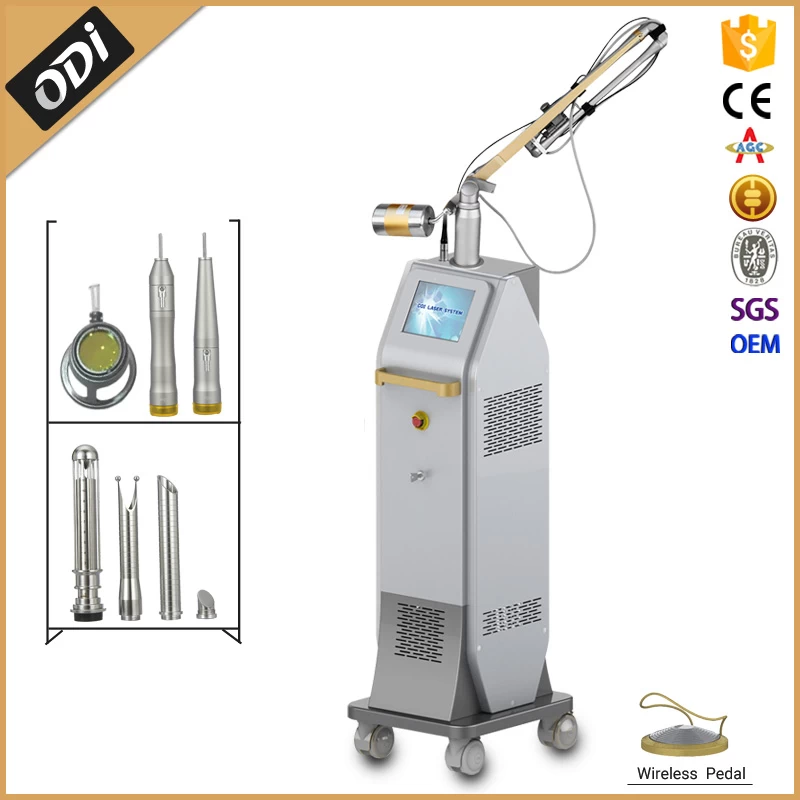

Applications of ODI RF Tube Fractional CO2 Laser Machine
Vaginal Treatment:
Vaginal Tightening, Vaginal Rejuvenation: pigment eliminate, Vaginal Moist: Increase Secretion
Other Treatment:
1.Wrinkles removal and fine lines
2.Skin resurfacing and renewing;
3.Clear up sun-damaged skin
4.Decrease appearance of acne scars
5.Shrinking the appearance of pores
6.Wart removal and Stretched mark removal
7.Smooth burnt scars surgery scars and dermabrasion etc;
8.Sun damage recovery
Contrast Pictures
Working Principle

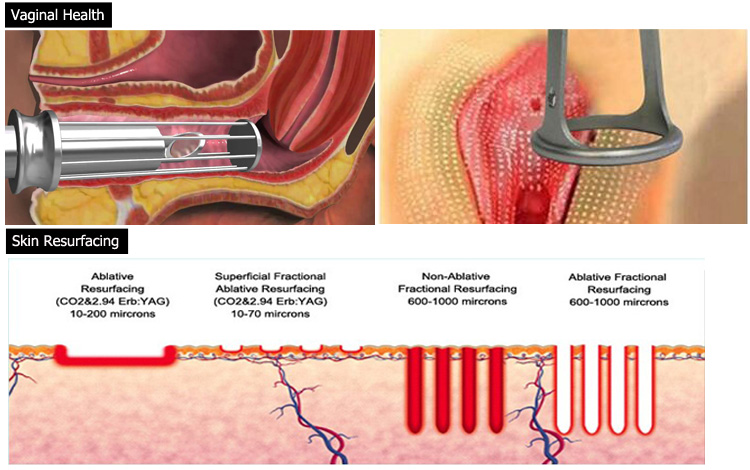

CO2 Fractional Laser System emit a laser beam which is divided into numbers of microscopic beams, forming small dot or fractional treatment areas within the selected targeted area only. Thus the energy of laser only permeate deeply into the fractional damaged area. It can make the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a plenty of collagen is generated for skin rejuvenation, eventually the skin will look much healthier and younger.
Adopt an vaginal health treatment head with automatically 360°C rotation technology, producing heat in 50-70°C at a controlled depth inside the vaginal mucosa - stimulates collagen contraction, restructuring and regeneration; promotes collagen fiber proliferating, remodeling; improves vaginal mucosa microcirculation; increases cell secretion and dynamic reaction function; corrects PH value of vaginal inside; improves the inside environment; achieve female private parts to significant lasting firming, nourishing and restoring harmonious sexual life.
Treatment Tips
