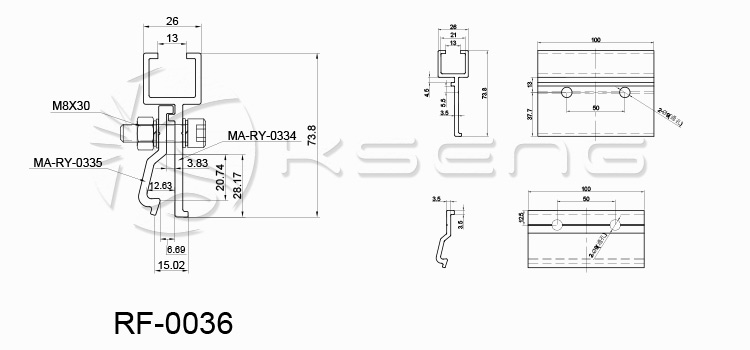

RF0036 Special Solar Roof Clamps for Roof Mounting Systems
Install rail-less systems requires extra focus on alignment. Not all roofs have a completely straight slope, so vertical alignment of roof mounts is important, especially since there isn’t a guiding rail to compensate for an uneven roofing surface.

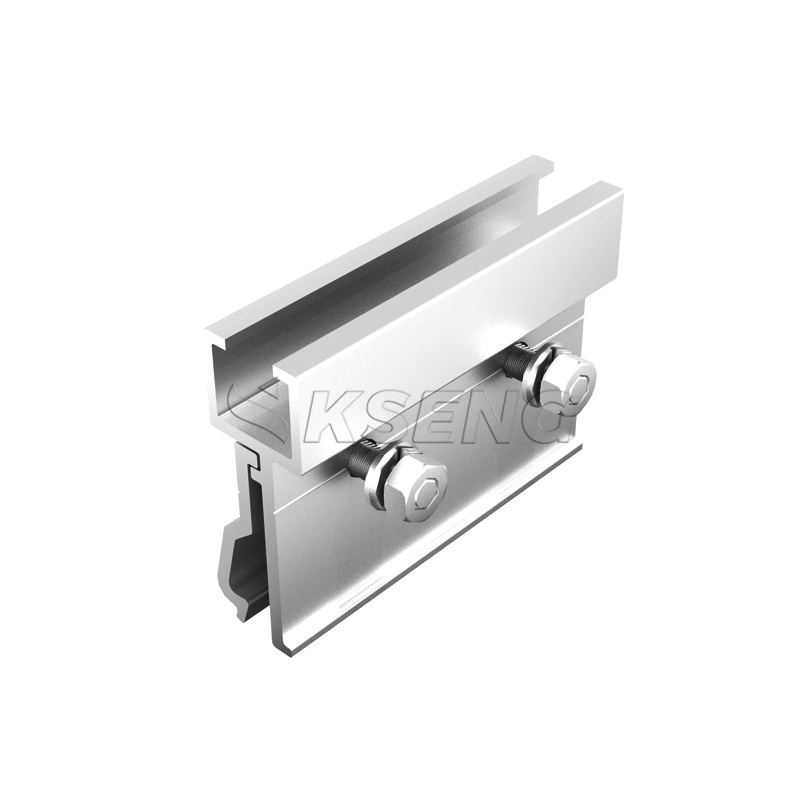

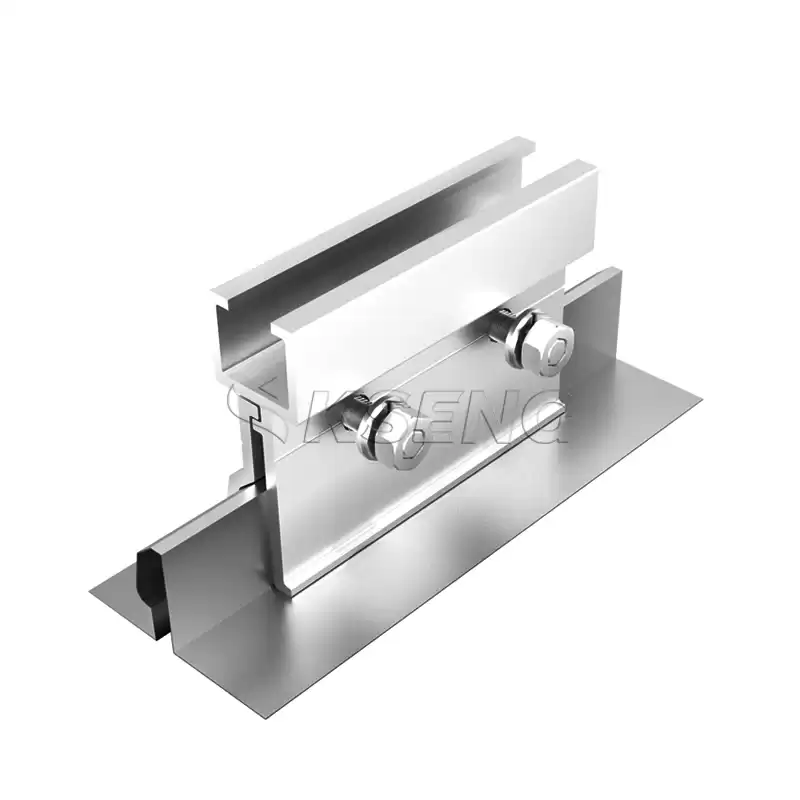

The RF0036 solar roof clamps are simply attached to the standing seams and offer a secure fastening without penetrating the roof sheets.
Each of the kits utilize our non-penetrating roof clamps to help protect the roof panel from installation damage by eliminating the rotational force exerted on the panel by typical fixing screws.
Kseng solar mount component features:
1.Without penetrating the roof surface.
2.Enables simple, fast and cost-effective installation.
3.Al6005-T5. High class anodized aluminium.
4.Fasteners and rall nut confignrated to save extra parts purchasing.
|
Product Name:
|
Solar Roof Clamps
|
|
Material:
|
Aluminum 6005-T5/SUS Stainless Steel
|
|
Size:
|
According to Actual Situation
|
|
Surface Treatment:
|
Anodized
|
|
Color:
|
Sliver
|
|
Application:
|
Rooftop Solar Panel Mounting
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Certification:
|
ISO9001/CE/UL
|
|
Delivery:
|
7 Days after Payment Received
|
