RF0041 Solar Panel Mounting Clamp Metal Clip For Tin Roof

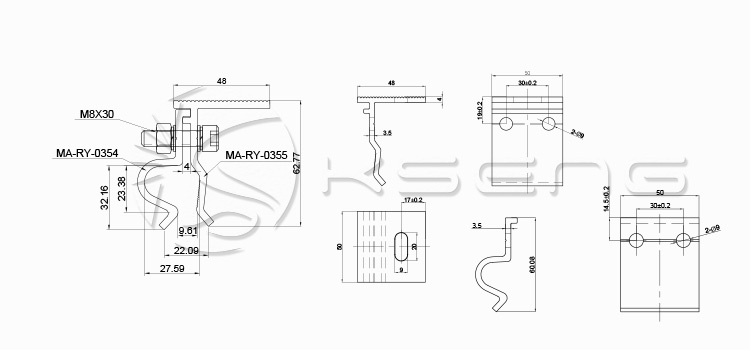

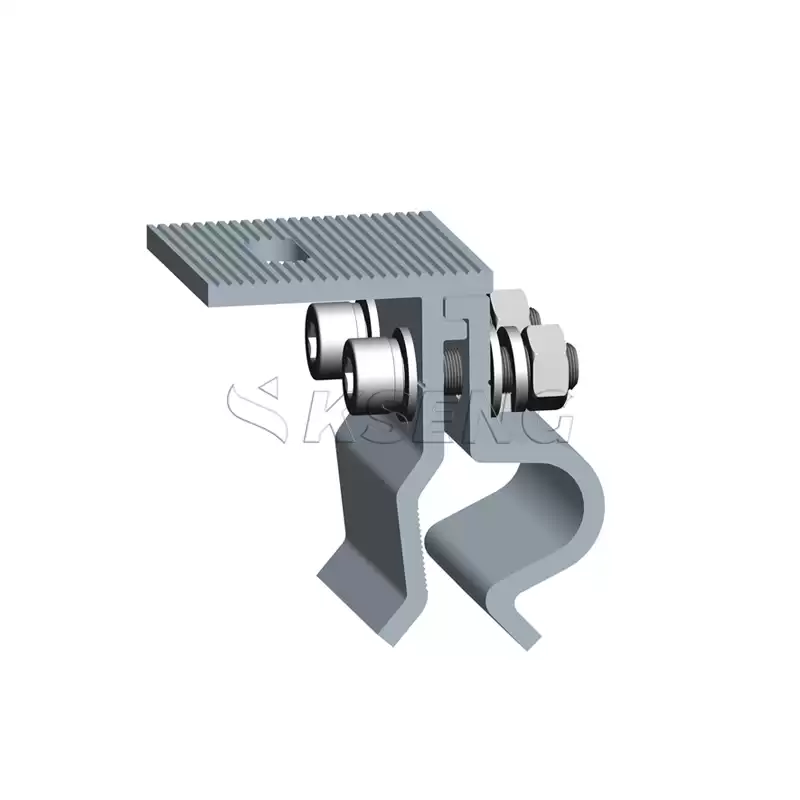

Standing seam roof clamp is for tin/metal roof solar rooftop mounting. The standing seam roof clamps makes mounting on folded seam roof particularly easy. The clamps are simply attached to the standing seams and offer a secure fastening without penetrating the roof sheets, ensuring great stability with minimum weight. The variety of system combinations allows it to be connected quickly to all rail components. It can also fix panels directly with solar panel clamps.
Each of the kits utilize our non-penetrating roof clamps to help protect the roof panel from installation damage by eliminating the rotational force exerted on the panel by typical fixing screws.
Kseng solar mount component features:
1.Without penetrating the roof surface.
2.Enables simple, fast and cost-effective installation.
3.Al6005-T5. High class anodized aluminium.
4.Fasteners and rall nut confignrated to save extra parts purchasing.
|
Product Name:
|
Solar Roof Clamps
|
|
Material:
|
Aluminum 6005-T5/SUS Stainless Steel
|
|
Size:
|
According to Actual Situation
|
|
Surface Treatment:
|
Anodized
|
|
Color:
|
Sliver
|
|
Application:
|
Rooftop Solar Panel Mounting
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Certification:
|
ISO9001/CE/UL
|
|
Delivery:
|
7 Days after Payment Received
|
