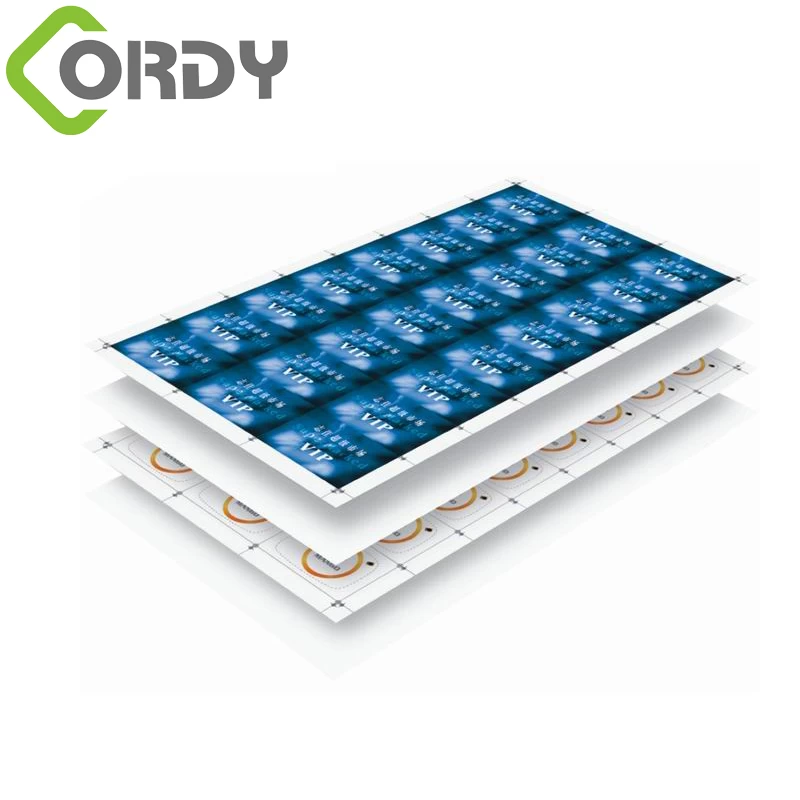

Description
Material: PVC, PET;
Contact IC chip
RF Frequency: 125KHz or 13.56MHz or 915MHz;
Operation temp: -15°C~+55°C
Spare number: 0.1%
Format: 5x5, 3x7, 3x8, 4x5, 4x8, 4X10, etc.
Thickness:
Contact IC: normal 0.45mm
LF: thinnest 0.42mm, normal 0.55mm
HF copper antenna: thinnest 0.42mm, normal 0.50mm
HF etching antenna: thinnest 0.35mm
UHF: thinnest 0.20mm
Chip option:
LF 125KHz: TK4100, EM4200, EM4305, ATAT5577, etc.
HF 13.56MHz: Fudan FM11RF08, Topaz, TI256, TI2048, SR176, LRI2K, INSIDE 2K etc.
For NXP MIFARE® chips, click to learn more
http://www.smartcardrfidtag.com/NXP-MIFARE-_p147.html
For NXP chips, click to learn more
www.smartcardrfidtag.com/nxp-mifare_c11
Application
Smart card patch, RFID tag, smart card Kernel etc.
Advantage
Shorten your card production process
Customers can produce smart cards at a lower cost with our high quality RFID inlay.
