Specification
|
Card Size:
|
85.6 x 54 x 0.84 mm(0.76mm, 0.92mm or 0.98mm)
|
|
Material:
|
PVC, PET, PET- G, ABS, PAPER
|
|
Frequency:
|
125KHz + 13.56MHz/ 125KHz + 915MHz/ 13.56MHz + 915MHz
|
|
Chipset:
|
Common used: TK4100 + FM11RF08, TK28 + FM11RF08, TK4100 + Alien Higgs 3， FM11RF08 + Alien Higgs3
|
|
Protocol:
|
ISO11784/ ISO11785, ISO18000- 2, ISO/ IEC14443A, ISO/ IEC15693, ISO/ IEC18000-6C, ISO/ IEC18000-6B
|
|
Technologies:
|
· Overlay/ lamination(Available to continue print by card printer)
· Off-set printing, Silk-screen printing, Digital printing(photo)
· Magnetic stripe(Hi. Co 2750oe or 4000oe, Lo. Co 300oe or 650oe)
· Bar-code(code 3 of 9, code 128)
· Scratch-off panel or signature panel
· Any other finishing, please contact our staff: sales@smartcardrfidtag.com
|

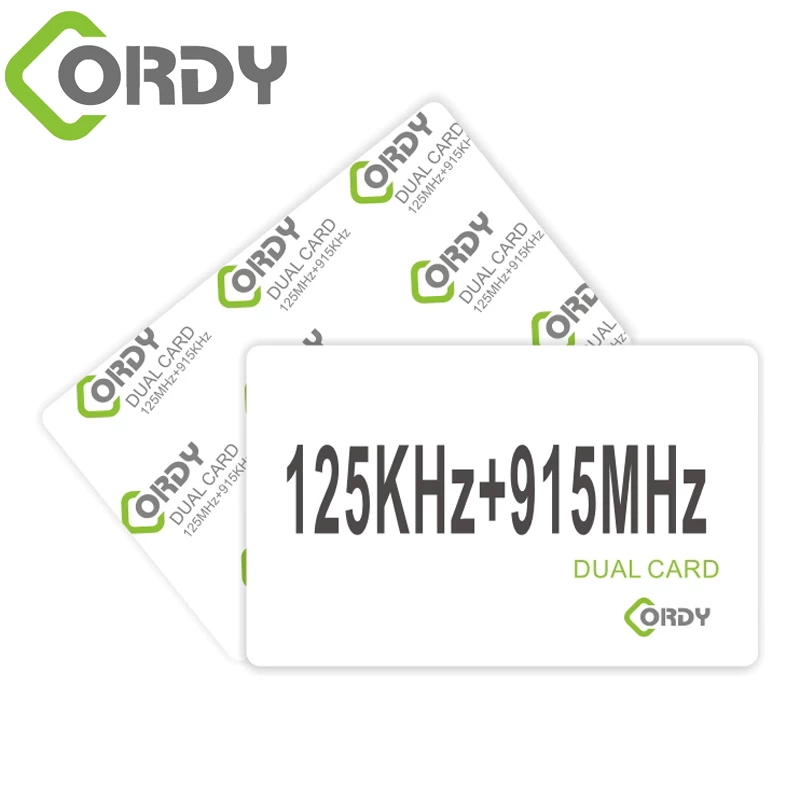

Hybrid Card(ISO, Credit card size), 2 chipsets in 1 card, the application is more widely.
For NXP MIFARE® chips, click to learn more
www.smartcardrfidtag.com/nxp-mifare_c11
Application
Access Control
Time Attendance
Hotel Key Card
Public transportation
Event ticketing
Gaming & identity
Patrol System
