Product Name:Rfid Dual Frequency PVC Inlay For Cards
Description

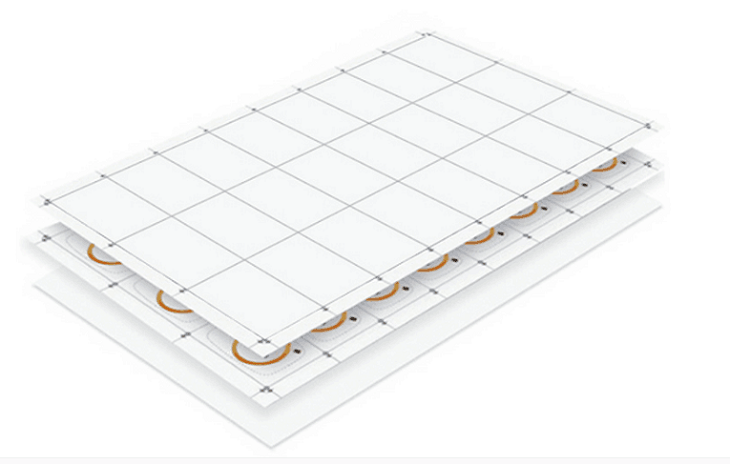

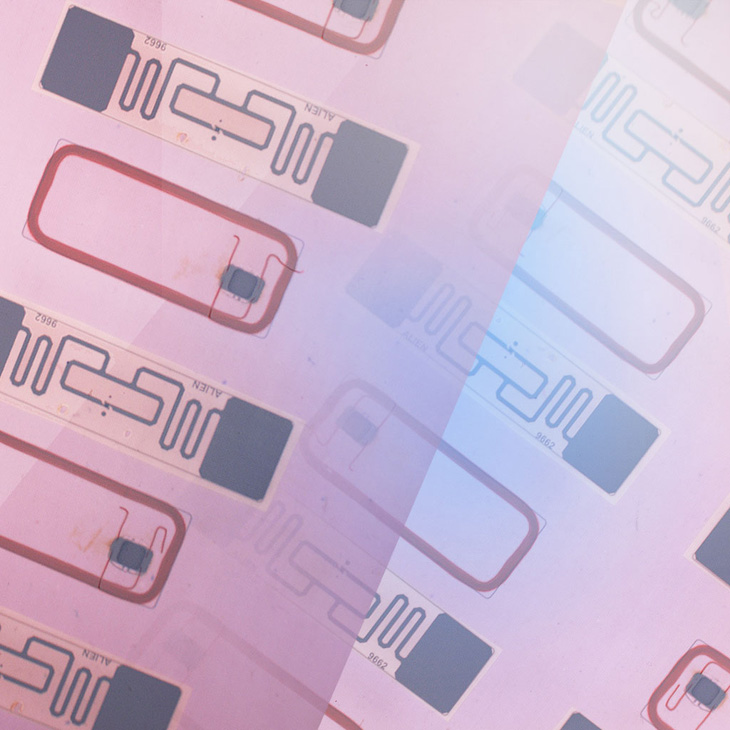

A prelaminated sheet which combines LF and HF chip technologies with UHF (Ultra High Frequency) technology,availbel types:LF+HF,HF+UHF,LF+UHF,LF+HF+UHF,we can also custom the shaped inlay depend on your requirement.
Specification
1.Materials: PVC, PETG, PC
2.Surface: finishing Glossy/matte/frosted/transparent
3.Frequency: HF+UHF
4.Color: White or Transparent
5.Layout: 2*5, 4*5, 5*5,4*6, 4*7, 4*8,3*6, 3*7, 3*8, 6*8, 6*10, or customized
6.Dimension: 310*468mm, 520*420mm, A4 210*297mm, etc.
7.Weight: 50g±1g or Customized
8.Protocol: 14443A,14443B,15693,11784,11785,18000,18000-2,ISO/IEC 18092,Legic RF,EPC class 1 Gen2,etc
9.Thickness: HF: normal 0.45mm, 0.5mm, min.0.3mm
LF: normal 0.6mm, Min. 0.5mm
UHF: 0.6mm, 0.5mm
Or customized
10.Antenna: HF: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding
LF: Pre-winding Copper Coli, AL Etching
UHF: AL Etching
11.Bonding: LF: Wire Bonding
HF: FlIP Chip, Wire Bonding, MOA2
UHF: FlIP Chip
12.Working Temperature: -25℃ ~ +55℃
13.Store Temperature: -25℃ ~ +65℃
14.Samples: Free samples are available upon request
Our Advantage
Our inlays are very robust and boast unequaled torsion / bending characteristics, extreme durability and optimized read / write performance. The inlays have a completely flat finish and bring numerous benefits to card manufacturers.
We make the card manufacturer’s job easier without sacrificing quality.
Application
Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc.
