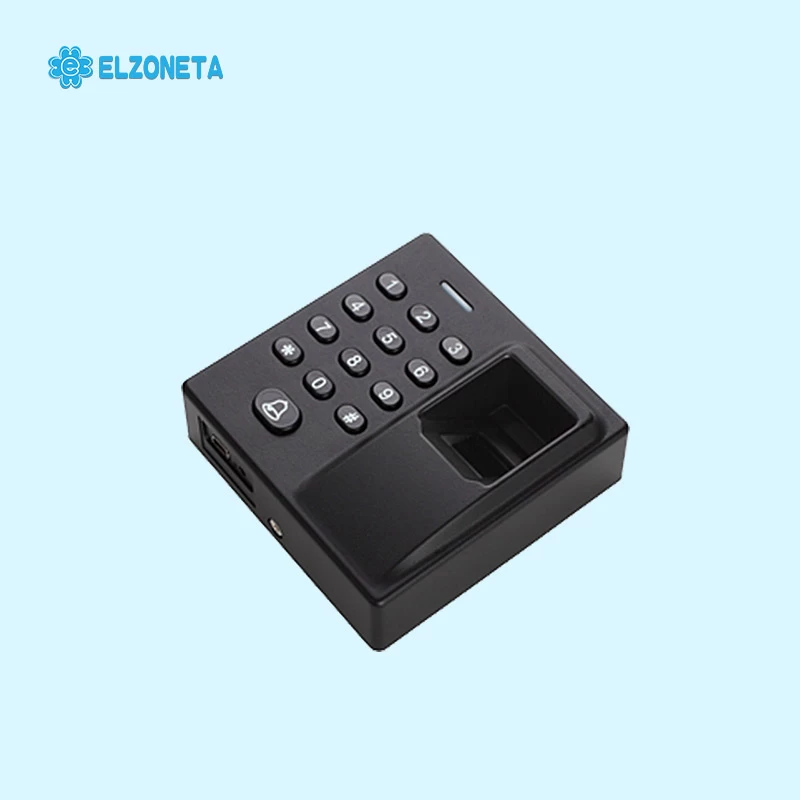

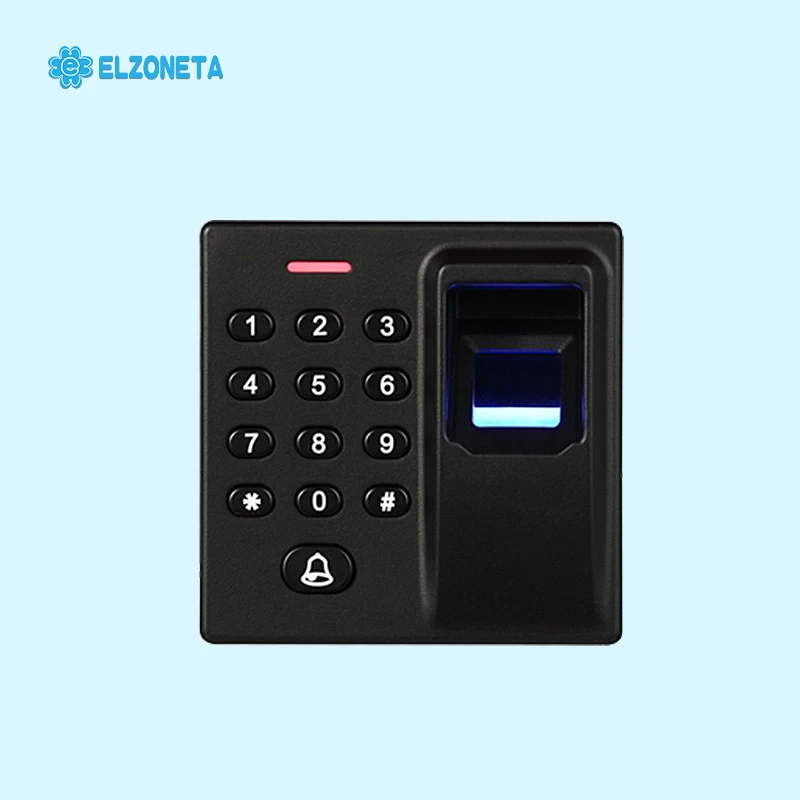

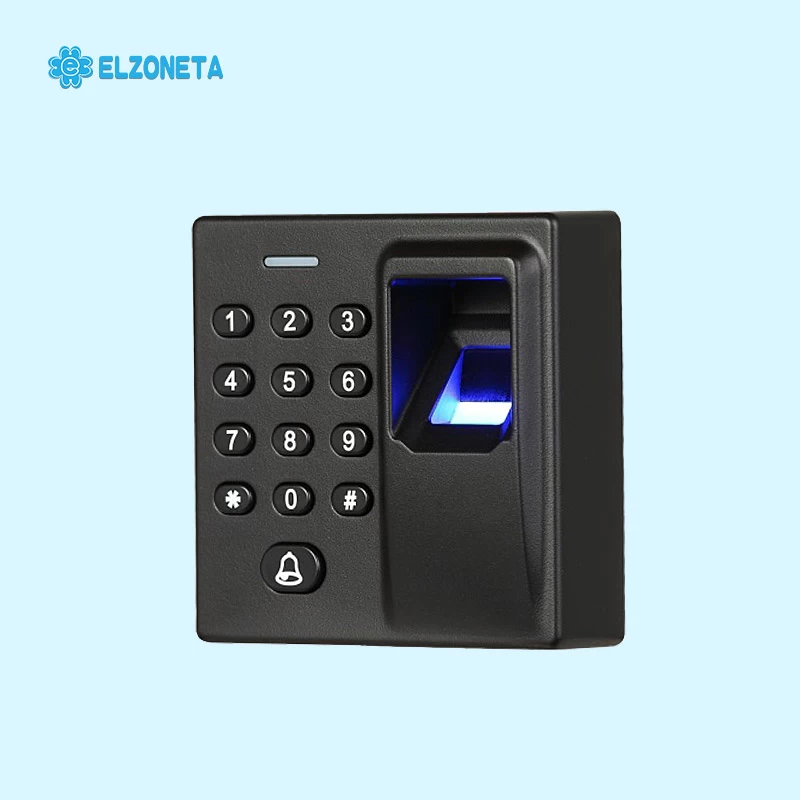

EC-ACS-FRP01 Fingerprint Biometric Access Control System
What is Biometric Access Control System?
Biometrics access control security systems are designed to restrict access for only authorized users.
Biometrics technology is a combination of various biometric sensors and biometric principles. It uses the inherent physiological characteristics of the human body (such as fingerprints, palms, irises, veins, etc.) and behavioral characteristics (such as handwriting, sound, and steps etc.) to perform personal identity authentication techniques. Biometrics are more secure, confidential, and convenient than traditional identification methods. The advantages of biometric identification technology include not being easily forgotten, having good anti-counterfeiting performance, being difficult to forge or stolen, being carried anywhere, and being used anytime, anywhere.
Features:
• One relay
• 500 fingerprint, 500 card and 500 PIN
• 3 access modes: fingerprint, EM card, PIN
• Pulse mode, toggle mode
• PIN length: 4~6 digits
• Wiegand 26 bits output
• Door bell
Specifications:
|
User Capacity Fingerprint Card PIN |
1500 500 500 500 |
|
Operating Voltage Idle Current Active Current |
12V DC < 50 Ma < 100 Ma |
|
Fingerprint Reader Resolution Identification time FAR FRR |
Optical fingerprint Module 500 DPI < 1S < 0.0001% < 0.01% |
|
Proximity Card Reader Radio Technology Read Range |
Industry Standard 26 bit 125KHz Industry Proximity EM Card 1 ~ 5 cm |
|
PIN Reader |
4~ 6 digits PIN |
|
Wiring Connections |
Relay output, exit button, alarm, Wiegand output, Door bell |
|
Relay Adjustable Relay Output Time Lock Output Load Alarm Output Load |
One (NO, NC, Common) 1 ~ 99 Seconds (5 seconds default) 2 Amp Maximum 5 Amp Maximum |
|
Wiegand Interface |
Wiegand 26 bits output |
|
Environment Operating Temperature Operating Humidity |
-20 oC ~ 50 oC (5 oF ~ 140 oF) 20% RH ~ 90% RH |
|
Physical Dimensions Unit Weight Shipping Weight |
ABS Enclosure 8.8L x 8.8W x 3.0H (cm) 350g 400g |

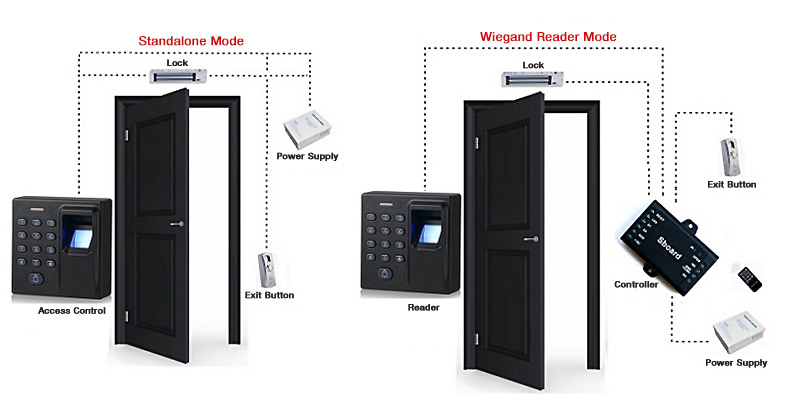

Working Mode:
