Product Name:Rfid Thermal Roll Jewelry Barcode Printable Tag
Description

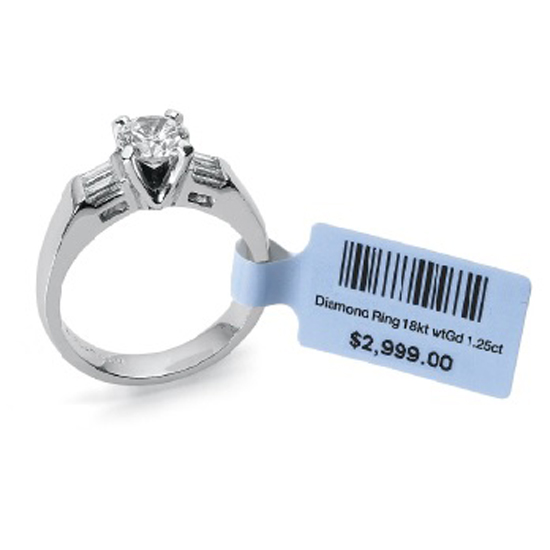

Jewelry label is divided into two kinds of materials in general: white film and silver, mainly reflected in the white and silver, for LOGO standard can be printed or bronzing / silver way to deal with.
Specification
1.Frequency: 860-960Mhz/13.56Mhz
2.Standard/Protocol: ISO18000-6C/1443A
3.Chip type: Alien H3/FM1108(Customized)
4.Memory: TID 64bit
5.Reading range:1-20CM(relates with the chip,reader and working environment)
6.Dimension:106*15mm/Folded size 53*13mm(customized)
7.Surface material:Pearl paper/Coated Paper/PET
8.Printing craft:Silkscreen printing,Rotary printing,Offest printing
9.Date retention time: 10 years
10.Reading/Writing endurance:100.000 times
11.Operating temperature:-20 β~+65 β
Different Types
According to the coating area, there are two main categories:
First: the whole plastic, it is divided up and down fold and left and right fold, style and size of some difference.
Second: no glue area, it is divided on the side with a stick and the right with a bar, a wide range of styles.
According to the label material, can be divided into four categories:
First: copper + transparent PET;
Second: copper + pearl Asian silver;
Third: copper + pearl PET
Fourth: bright white PET
According to the label tied to the way, can be divided into three categories:
First;
Second: no holes;
Third: with a stick
