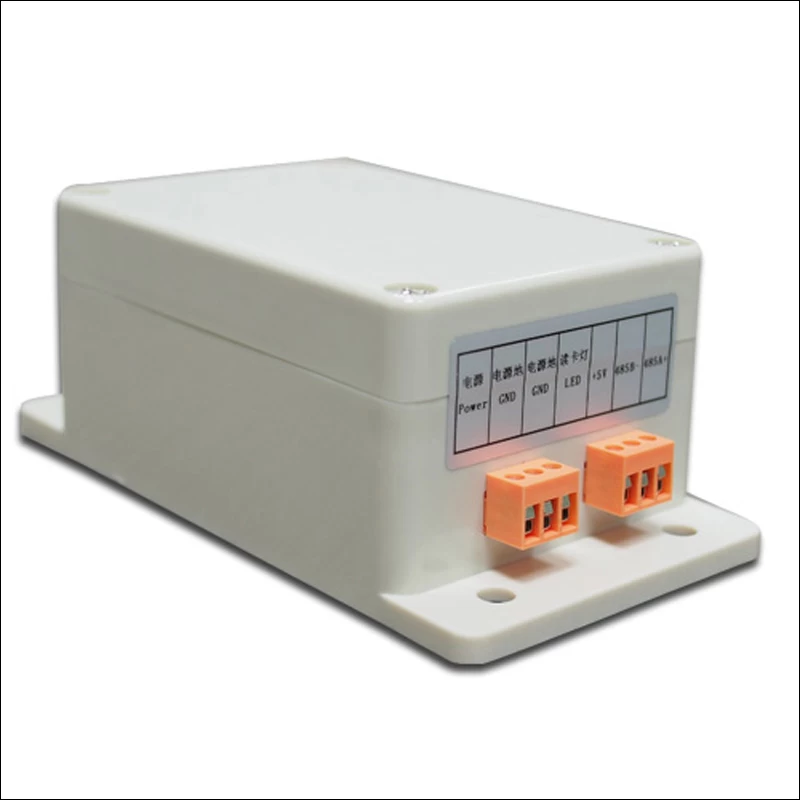

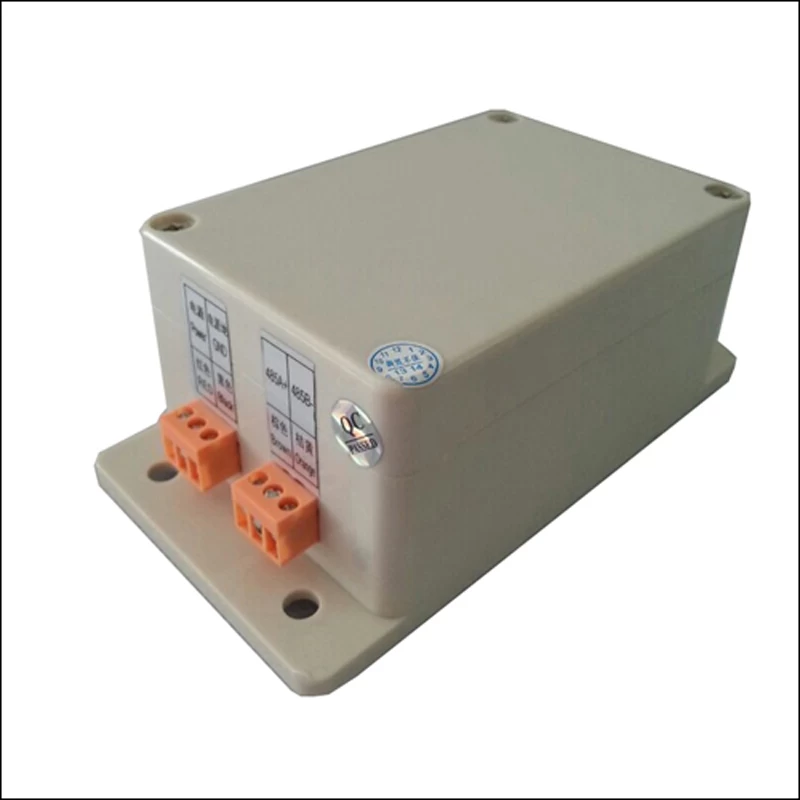

UHF AGV RFID Reader

JT-7200

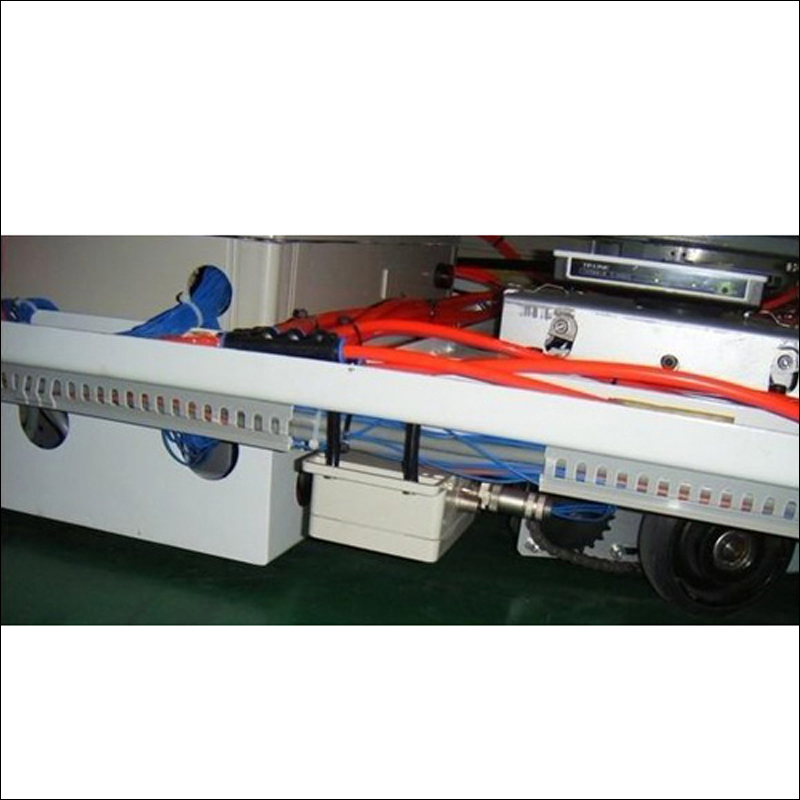

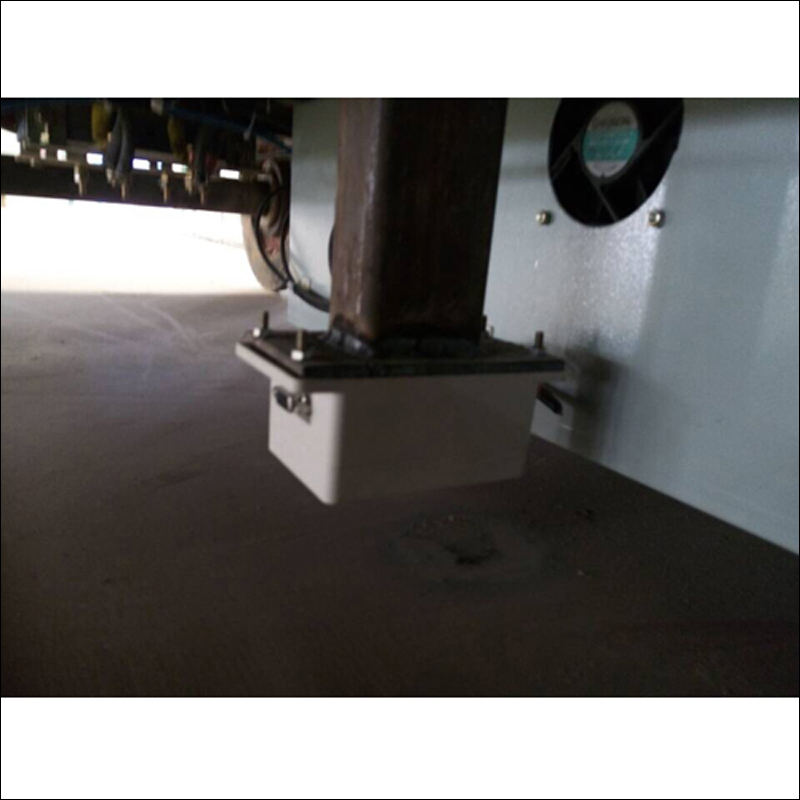

This reader support EPC C1 C2/ISO18000-6C protocol, compliant with related rules of 800/900MHz RFID and American FCC, in-built antenna, RS485 communication, located in high protection, middle range reading and etc., such as production line.



Be immune from corruption, can be used in bad industrial environment;

Housing material: ABS

IP65 Protection Level.


Support Protocol

EPC Global Class1 Gen2/ISO18000-6C

Frequency

920.625 MHz ~ 924.375 MHz (interval 250 KHz)-China

902.75 MHz ~ 927.25 MHz(interval 500 KHz) - American

Frequency Mode

Hopping/fixed

Output Power

0~23+/-1 dBm

Reading Range

1 m(with 9662 tag), 30 cm for writing tag

Antenna Port

Inbuilt 1 ceramic antenna

Communication Interface

RS485, RS232

Working Mode

Continuously

Working Power

DC 12~28 V, @24 V/100 mA

Working Temperature

-20℃~75℃ , 68℉~167℉

Storage Temperature

-40℃~85℃ , 104℉~185℉

Working Humidity

 5% ~ 95%

Size/Net Weight

100*68*50 mm / 300 g
