/Products Features/

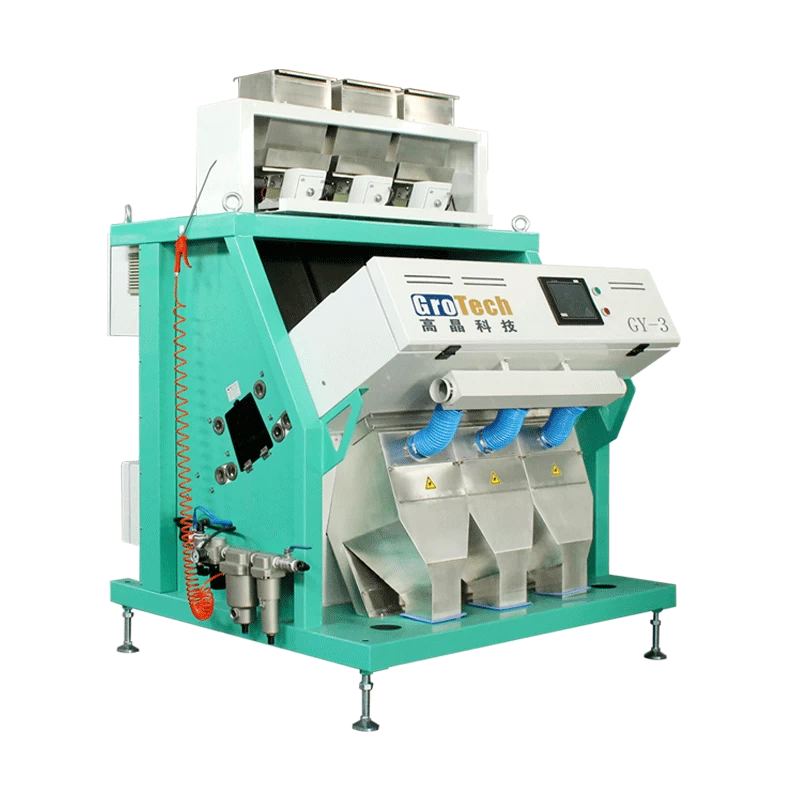

RGB Color Sorter Machine for PP, PET, PVC,ABS Recycling Industries
*Optical Sorting With Professional Industrial Wide View Camera Lens,Top Chromatic CCD Sensor,High Reliability And Long Life Source ,American Super Speed FPGA Processor;
*Color Sorting,Shape Sorting And Material Sorting Functions Combined;
*With High Frequency And Big Capacity Ejectors Suitable For Wide Range Of Materials,Higher Efficiency;
*Intelligent System, Self-Learning Function,Easy Operation;
*RGB Camera Identification, Higher Accuracy,New SteadyTemperature Light Source
*Unique Bionic Technology Camera,Cloud Computing ,Massive Data Analysis
/Parameter Table/
|
Model
|
GY1
|
GY2
|
GY3
|
GY4
|
GY5
|
GY6
|
GY7
|
GY8
|
GY10
|
GY12
|
|
Executing Unit
|
64
|
128
|
192
|
256
|
320
|
384
|
448
|
512
|
640
|
768
|
|
Throughput(T/H)
|
0.2-0.5
|
0.3-0.8
|
0.5-1.0
|
0.6-1.5
|
0.6-2.0
|
0.8-2.0
|
1.0-3.0
|
1.5-3.0
|
2.0-4.0
|
3.0-6.0
|
|
Voltage(V)
|
|
|
110-250V（50-60HZ）
|
|
Power(KW)
|
1
|
1.4
|
1.8
|
2.2
|
2.6
|
3
|
5
|
6
|
7
|
8
|
|
Weight(KG)
|
210
|
350
|
600
|
750
|
880
|
1050
|
1150
|
1250
|
1400
|
1650
|
|
Dimension(L*W*H/mm)
|
960*1630*2050
|
1340*1630*2050
|
1610*1630*2050
|
1965*1630*2050
|
2225*1630*2050
|
2595*1630*2050
|
2980*2116*1990
|
3068*1630*2050
|
2980*2116*1990
|
2980*2430*1990
|
|
Sorting accuracy(%)
|
|
|
≥99.99
|
|
Rejection rate(%)
|
|
|
≥8:1
|
|
Air consumption（L/min)
|
400-800
|
600-1000
|
800-1600
|
1000-1800
|
1300-2200
|
1500-3000
|
1800-3600
|
2200-4000
|
2400-4500
|
2700-5000
|
|
Notes
|
Subject to different impurities of raw materials,parameters listed in above table will charge to some extent
|
/Sorting Results/
/Sorting Samples/
