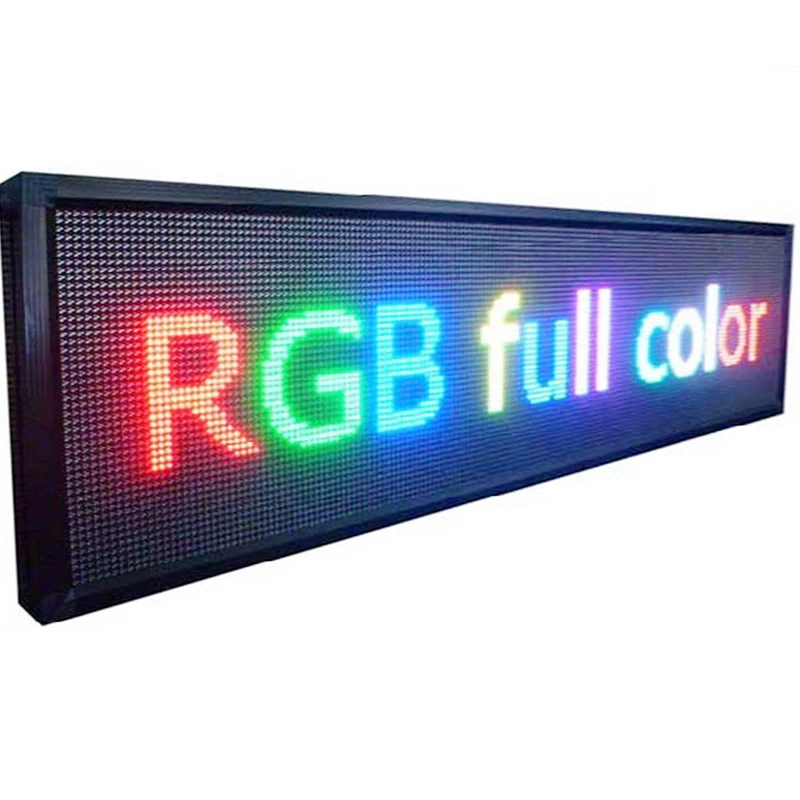

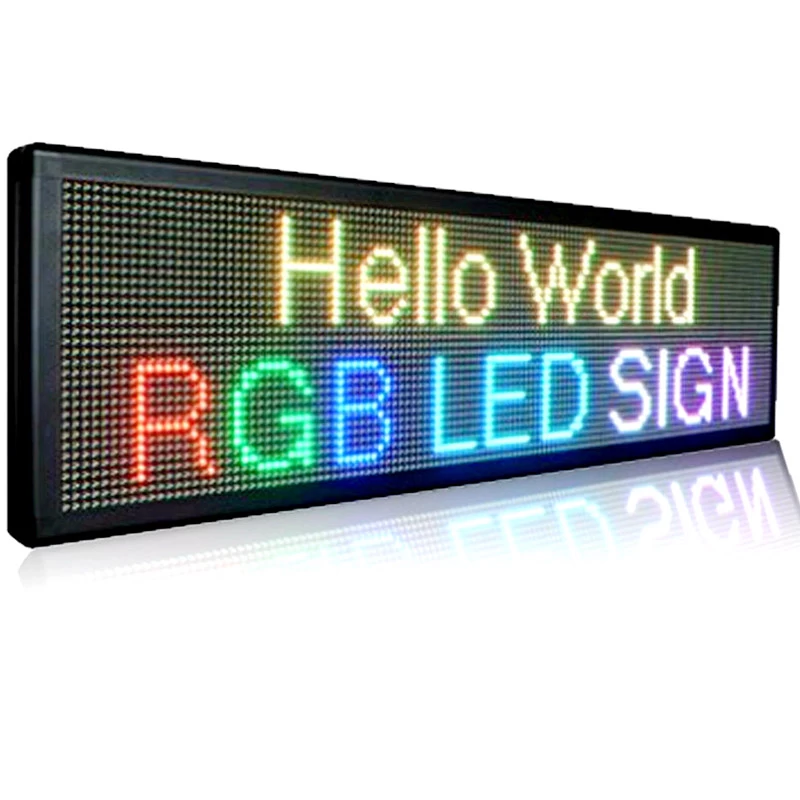

RGB P10 LED module for Advertising media LED Display

P10 type is SMD,Display Function:Date,Text, Temperature,Pixel:10 mm,high refresh rate IC ;Size is 36x260 cm . Display speed adjustable, word size adjustable, various display effects optional.



With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.



• Display English or Other languages characters as well as graphic symbols.

• kinds of methods of displaying your message (Open to Center, Open from Right, Open from left,Cyclic,etc.)

• Built-in real time clock. Customized time/date format are also available

•  programmable display speeds

• Segmented display capability to allow separate control of sections of the display

• Duplex function allows user read data from one sign by a PC and copy it to another sign

• Interface of the managing software can be in multiple languages

• Low consumption

• Fixing methods: desk, wall or ceiling

• Display Real Temperature (optional)




Package including


*LED sign 1 PCS (size 260x36cm / 102x 14 inch)

*Signal connection cable

* Professional installation bracket

*USB with free software and English user manual


Feature & Function

P10 LED Module model
Color RGB
LED Type SMD
Module Resolution W32 X H16
Module Size(MM) W320 x H160
Driving Method 1/4 scan
Led display parameter
Voltage 220V or 110V ±10%
Material Outdoor Aluminum Frame Waterproof (IP45)
Cabinet Size (mm) W2600 x H360 MM (102x14 Inch)
Power Consumption Max (w/set) 100 Watt
Brightness(CD/㎡) ≥5500
Viewing Angle  120º/70º
Theoretic LED Working Life More than 100000 hours
Control Method USB control(network port,WIFI ,optional)
Display function Date, Text, Picture, Logo
