Color Sorting Machine Working Principle
Parboiled rice color sorter works on the principle of optical sorting. It uses advanced digital image processing technology to detect and sort out impurities and foreign objects from the rice grains. The machine is equipped with a high-resolution camera that captures images of the rice grains. The images are then analyzed by a powerful computer system which identifies any foreign objects or impurities in the grain and then triggers an air jet to blow them away from the good grain.

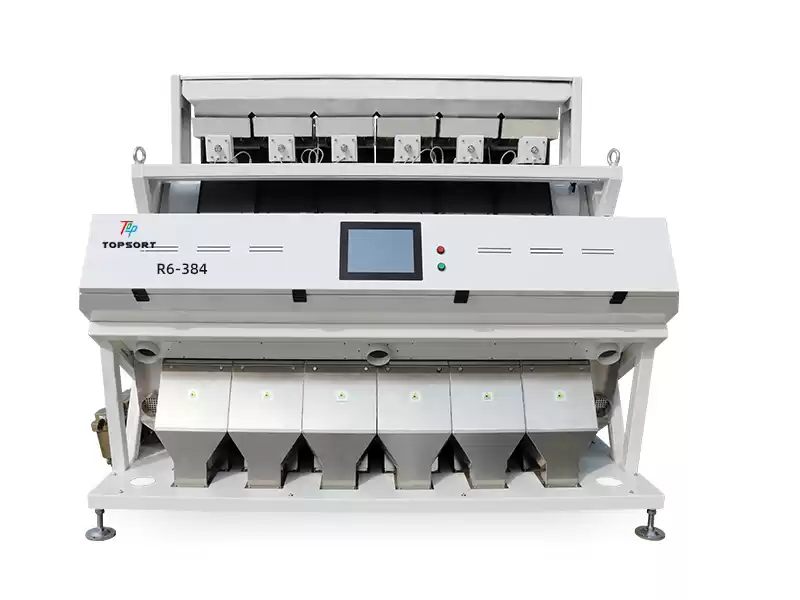

6 chutes Rice Color Sorter Machine Features
1.Automatic calibration and adjustment of sorting parameters to ensure optimal sorting performance.
2.Multi-level sorting capability for different grain sizes and shapes.
3.High resolution cameras to detect subtle color differences in the grains.
4.Advanced software algorithms to identify and separate grains based on their color, size, shape, and other characteristics.
5.Ability to store and recall multiple sorting programs for different types of grains.
6.Integrated dust collection system to keep the machine clean and reduce waste.
7.Real time monitoring of sorting performance with detailed reports.
8.User friendly interface with intuitive controls for easy operation
6 Chutes Rice Color Sorter Machine Technical Parameters
| Model |
R6-384 |
| Channles |
384 |
| Power |
3.6kw |
| Weight |
1000kgs |
| Dimensions |
2658*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
4000-6000kg/h |
| Air consumption |
<5.5m3/min |
| Air pressure |
0.6-0.8Mpa |
Superb Rice Sorting Sulotions
Our Color Sorter Machine Core Advantages
Sucessful Cases
Why Choose TOPSORT Color Sorter
Top technology
Adopt high-speed FPGA digital image processing technology, faster detection speed, higher recognition rate and high sorting accuracy.we have CCD color sorter and infrared color sorter for different sorting requests.
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
A wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .

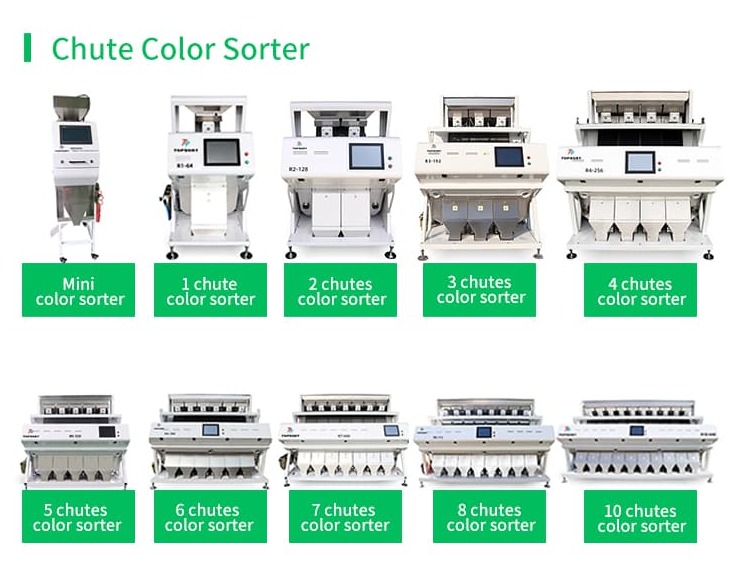

More models you can choose
Technical Parameters
| MODEL |
POWER |
VOLTAGE |
AIR PRESSURE |
AIR CONSUMPTION |
DIMENSIONS (MM) |
WEIGHT (KGS) |
| MINI-32 |
0.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜0.5m³/min |
420*1100*1820 |
100 |
| R1-64 |
0.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
880*1504*1760 |
300 |
| R2-128 |
1.3KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜2.0m³/min |
1314*1504*1760 |
400 |
| R3-192 |
1.9KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜3.0m³/min |
1650*1504*1760 |
500 |
| R4-256 |
2.4KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜4.0m³/min |
1986*1504*1760 |
650 |
| R5-320 |
3.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.0m³/min |
2322*1504*1760 |
800 |
| R6-384 |
3.6KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.5m³/min |
2658*1504*1760 |
1000 |
| R7-448 |
4.1KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.0m³/min |
2994*1504*1760 |
1200 |
| R8-512 |
4.7KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.5m³/min |
3330*1504*1760 |
1400 |
| R10-640 |
5.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜8.0m³/min |
3666*1504*1760 |
1800 |
Note:Capacity upon material type,impurity rate,so it needs to determine according to the actual sorting materials.
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
