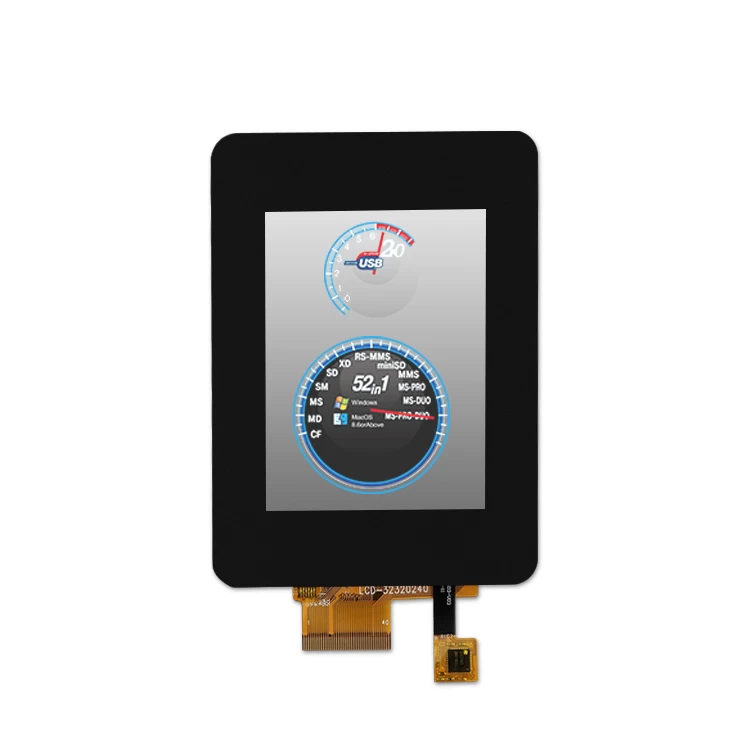

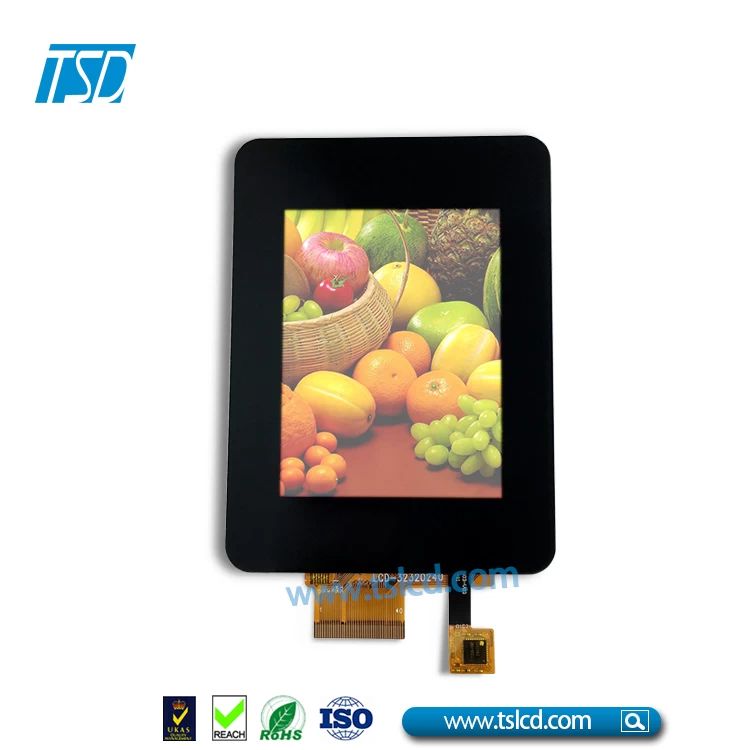

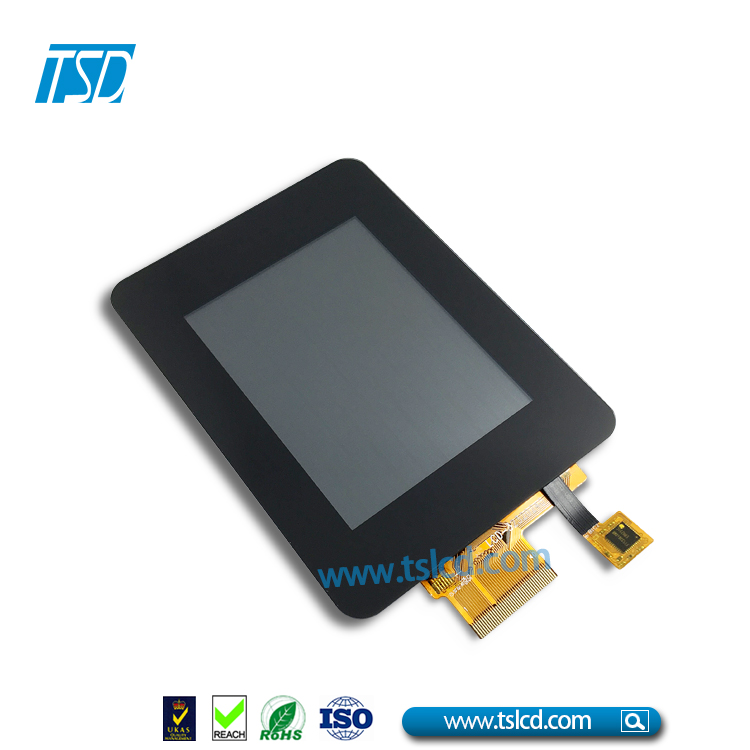

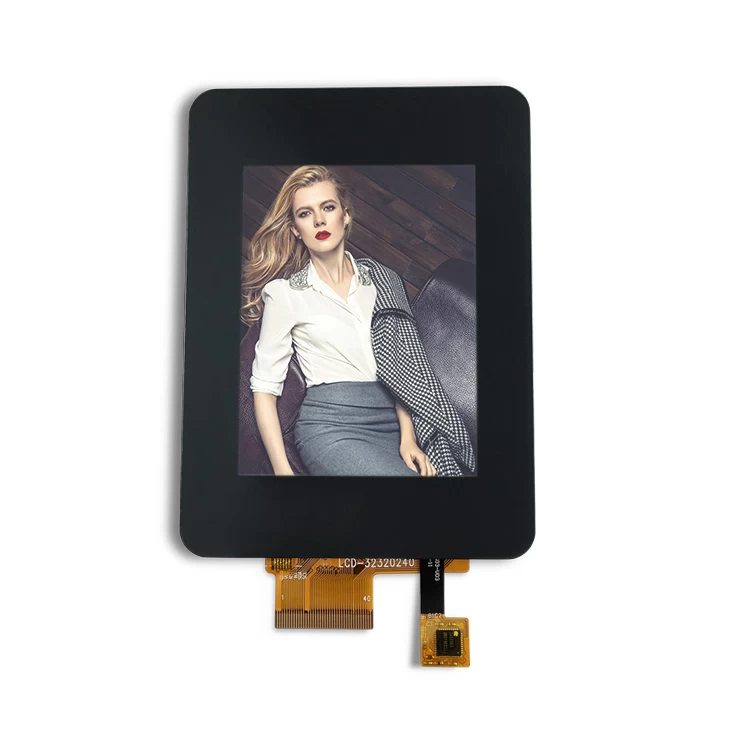

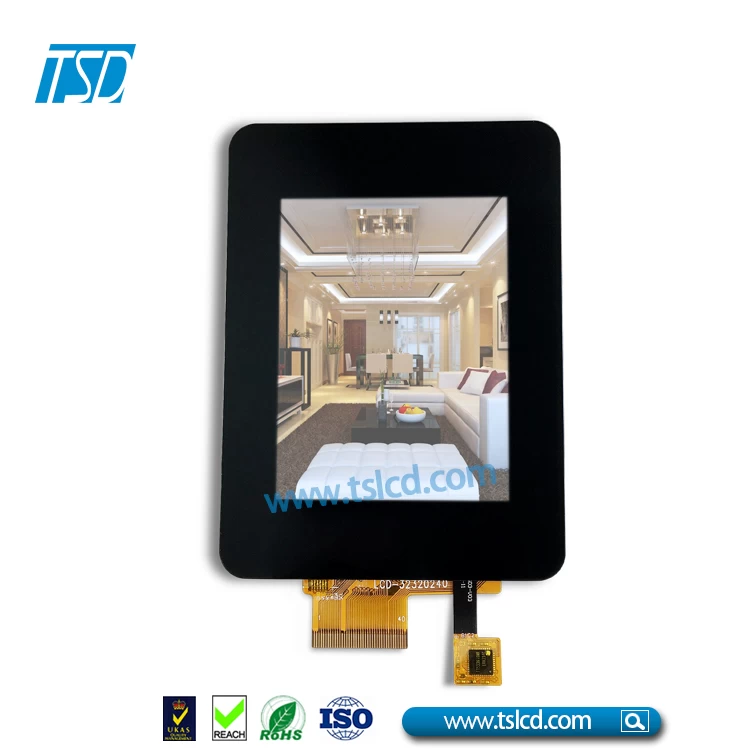

RGB Vertical stripe 3.2inch 240x320 TFT LCD with CTP

3.2inch 240x320Res TFT LCD with RGB Vertical stripe with touch panel

resistance & capacitive touch panel available

MCU interface

Facebook Twitter Pinterest LinkedIn 分享
Specification
LCD type 3.2 inch TFT,Transmissive
Display type 3.2 inch TFT, 262k color, normal white
Description 3.2 inch tft lcd ili9341 with touch
Driver element a-si TFT Active matrix
Outline Dimension(mm) 55.04x77.7x4.45 (with touch panel)
A.A.(mm) 48.6x64.8
Driver IC ILI9341
Resolution QVGA 240*RGB*320
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Operating Voltage 2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 5 LEDs, White
Weight(g) TBD
System Interface  8 bit 8080 system Parallel interface
Touch panel 4 wire resistive TP
Module lifetime(Hours) 50,000-100,000
