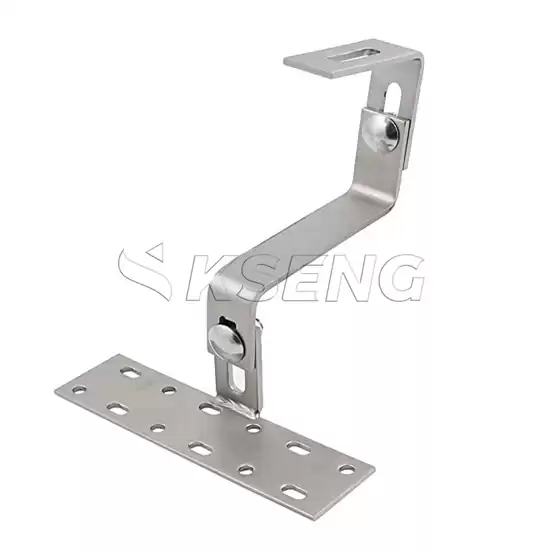

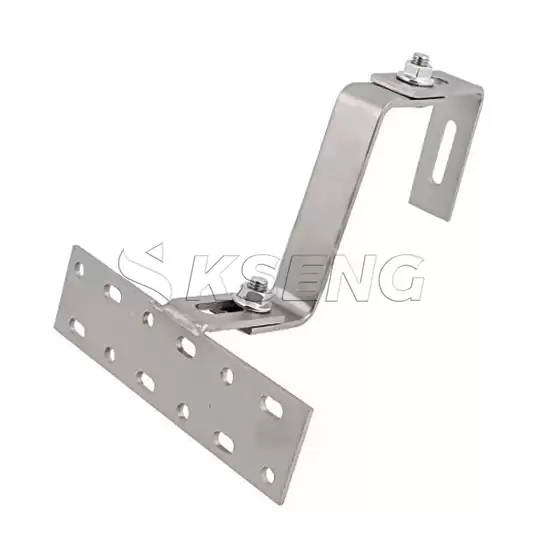

Double Adjustable Height Flat Tile Stainless Steel SUS 304 Hook
Adjustable double flat tile hook provide a fast and easy way to install solar on tile roofs. The solar tile hook is made by stainless steel 304, tile arm and base thickness can customized as per your request.

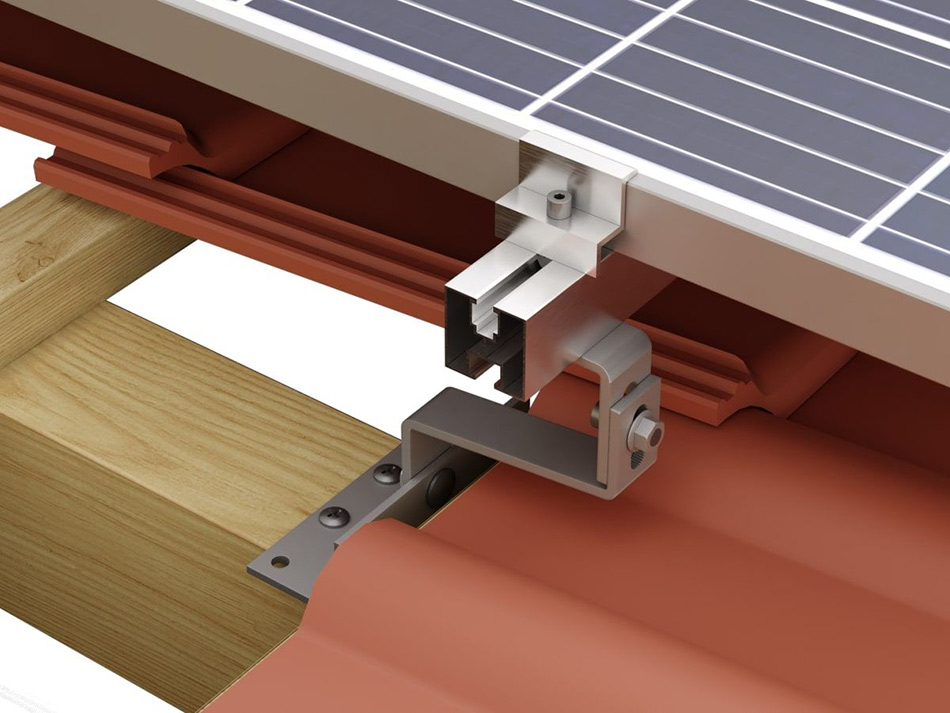

The tile roof solar mounting system provides a perfect solution for installation on tile roofs. The roof is fixed using high-strength stainless steel roof hooks, which is suitable for almost all Spanish tiles. The system fully complies with international standard wind and snow loads, making it suitable for a variety of climate zones.
Characteristic:
-It's meeting for different types of PV solar panels
-It's made from high quality SUS304, A2-70 material
-Easy and fast installation
-No need to drill into tile
-Slotted for easy adjustment
-Double adjustable
-Suitable for Roman/ curved tile roofs
-Suitable for common rails
-No tile cutting, no penetration of the roof
-high corrosion resistance
|
Product Name:
|
Double Adjustable Tile Roof Mounting Hook
|
|
Material:
|
SUS 304 Stainless Steel
|
|
Standard:
|
AS/NZS 1170
|
|
Certification:
|
ISO9001/CE/UL
|
|
Wind Load:
|
60M/S
|
|
Snow Load:
|
1.4KN/M2
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Application:
|
Solar Tile Roof
|
|
Delivery:
|
7 Days after Payment Received
|
