RHD beiben 2638 dump truck

kenya Beiben 2638 dumper, 20 cbm capacity common cargo box, beiben 380hp engine dump truck chassis, 6*4 drive system, with right hand drive steering system, beiben NG80B cabin, fast 9 shift transmission, 3850+1450 mm wheelbase, 12.00R20 tyre.


  • Production time50 days
  • Payment termsT/T, L/C

                                                             beiben 2638 dump truck

beiben 2638 dump truck



 Applications:



Beiben 2638 dumper, also called as beiben 2638 tipper truck, north benz 2638 dumper, beiben china 2638 dumping truck, north benz 2638 dump truck, kenya beiben 2638 dumper, is designed for loading, transporting and discharging construction material, also can be used in for mine rock delivery.



We are premium beiben 2638 dump truck manufacturer in china, can produce right hand drive beiben 2638 dump truck, right hand drive 2634 dump truck ,Tanzania 2638 dump truck, our goal is to supply the best quality beiben 16 cbm dump truck, beiben 20 cbm cargo box dump truck for africa customer.



The beiben dump truck  Box material optional: Manganese steel & Carbon steel, which is safe and durable.



 Key Features:



---- North benz chassis, perfect performance

---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Dumper body capacity from 15 to 25 CBM .

---- China famous lifting device easy operation and maintenance.

---- Front lifting & middle lifting are available.



 Specifications:



Beiben 2638 Dump Truck  (40 T)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Beiben

Overall Dimension

8500*2490*3340 mm

GVW / Kerb Weight

25,000 kg / 14,800 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

380 HP (270 KW)

Displacement

9726 ml

Emission Standard

Euro  3

Chassis

Drive Type

6X4, (left hand drive)

Transmission

FAST 9 speed levers with 1 reverse

Wheelbase/No. of axle

3800+1450 mm / 3

Tire Specification

12.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body Capacity

16 CBM

Tilting Device

Front lifting device

Hydraulic Cylinder

China brand

Discharging model

Rear discharging

Dump Body Dimension
5600*2300*1500 mm

Thickness

Side Board: 8mm

Floor Board: 10 mm

Control panel

English or Your language

All standard accessories: basic tool kit, English manual……

Optional

** Cabin color can be white, orange, red, blue.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

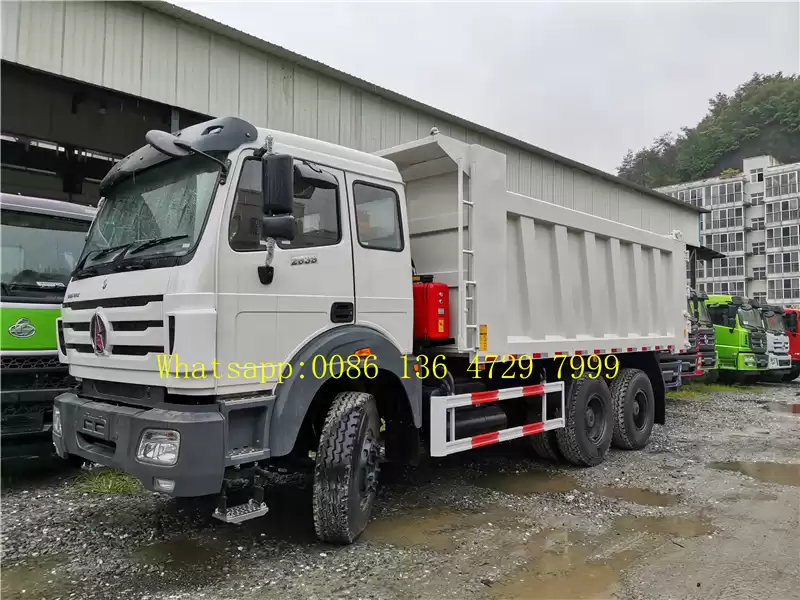

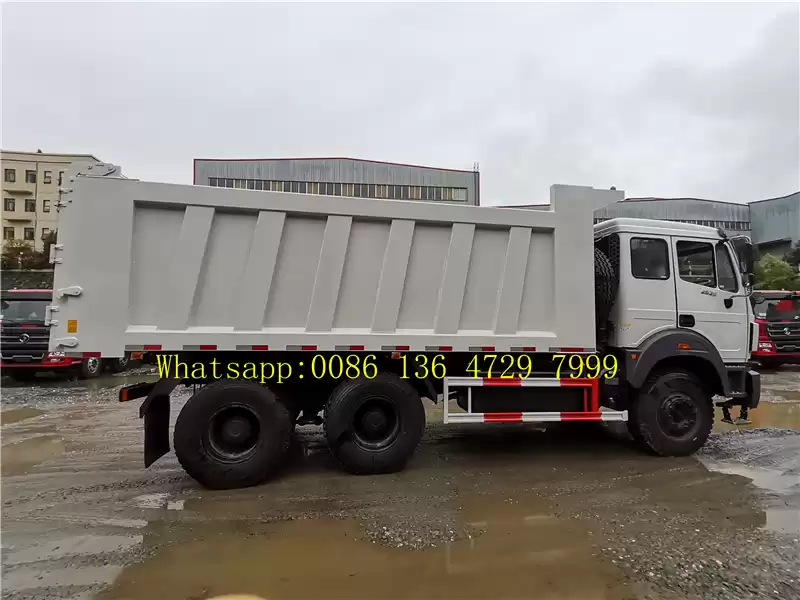

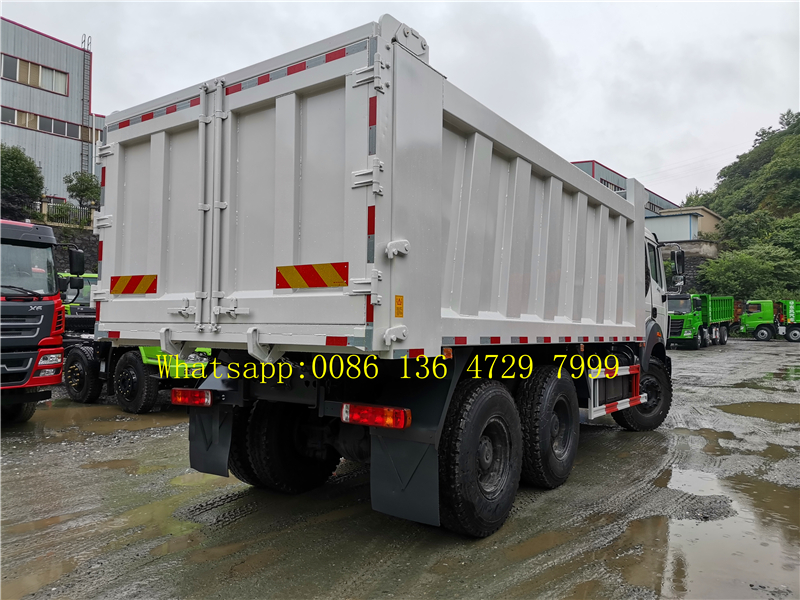

china beiben 2638 dump trucks

beiben 2638 classis NG80B cabin, with 20 cbm capacity cargo box .

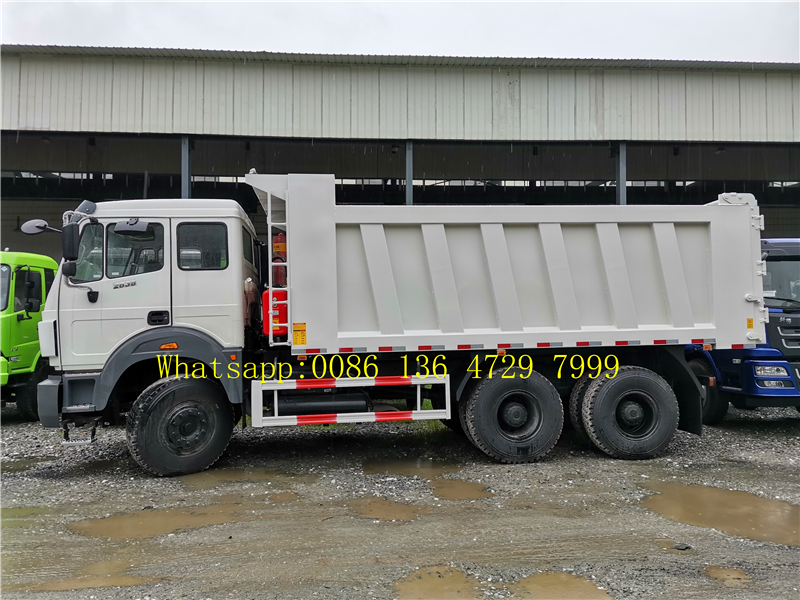

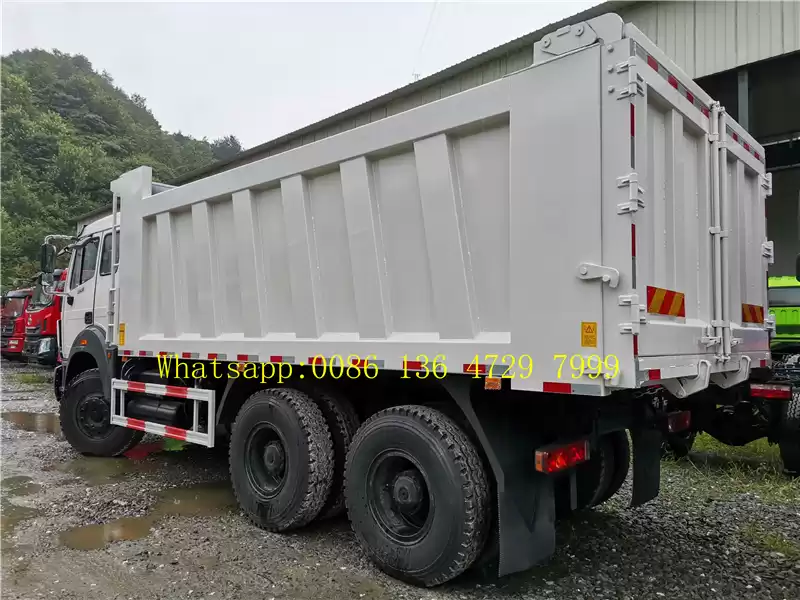

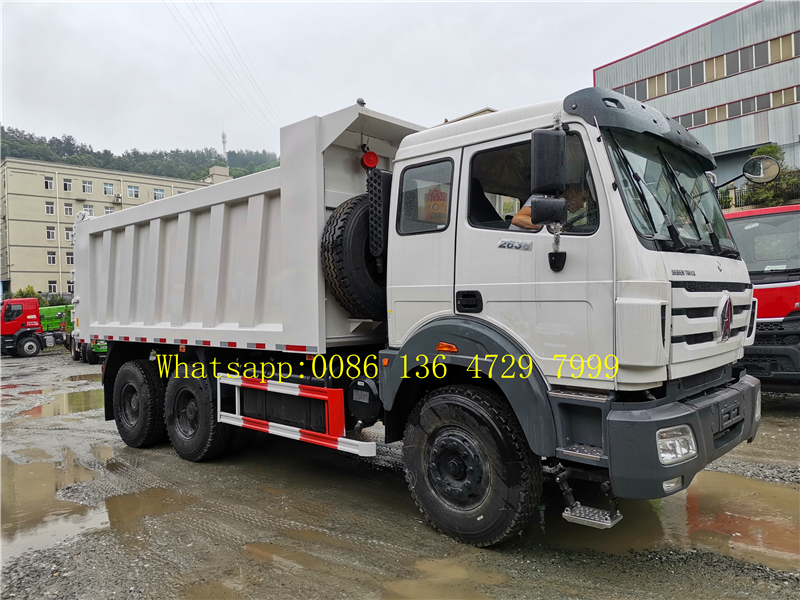

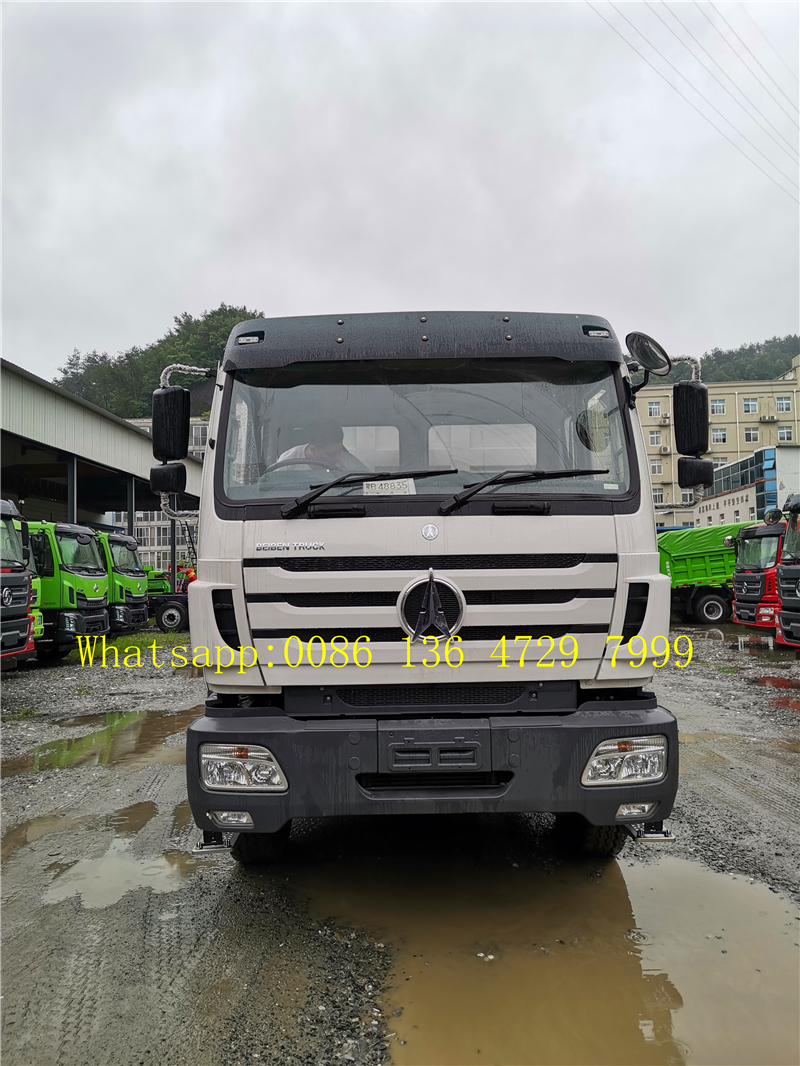

beiben 2638 dump truck

normal beiben 2638 dump truck, china beiben 2638 dump truck.



-
