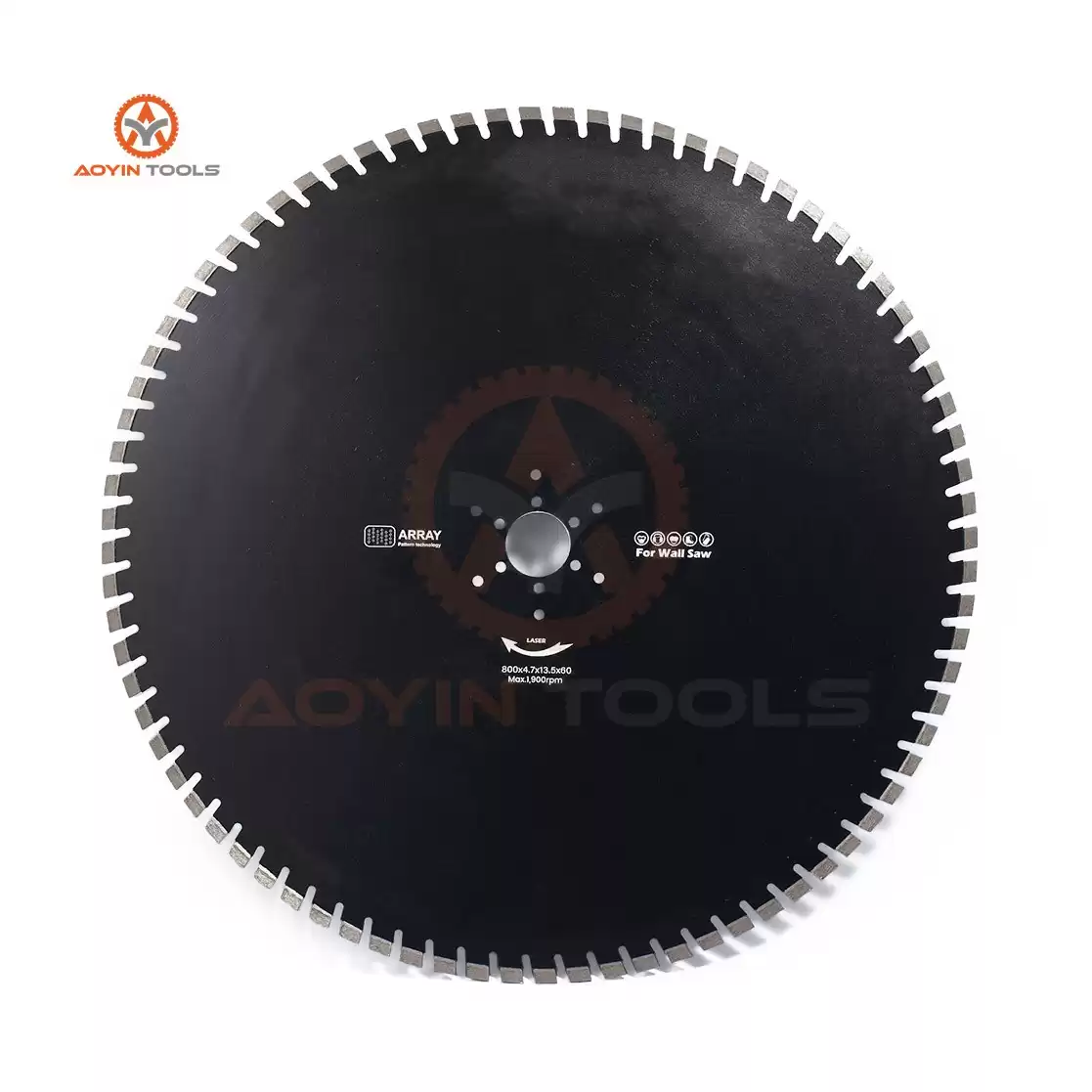

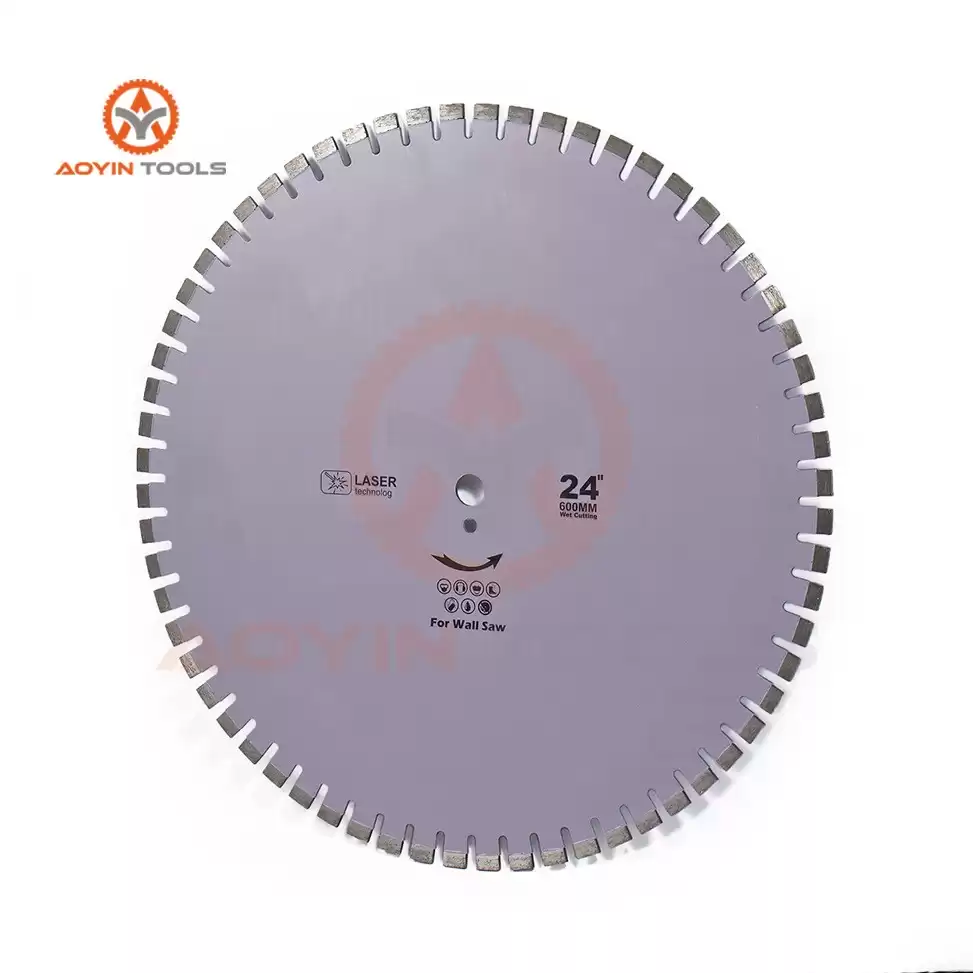

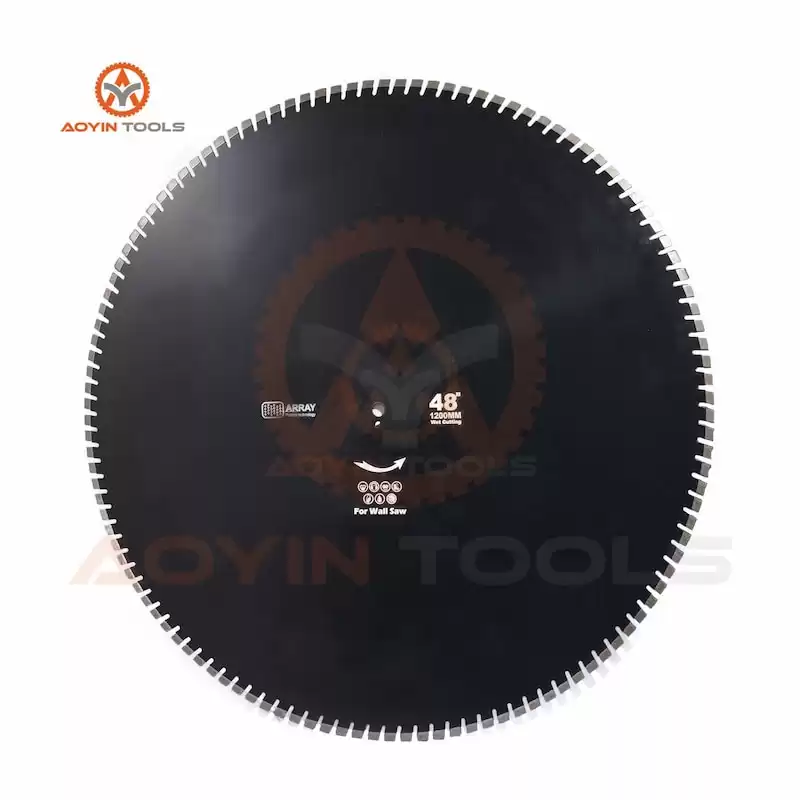

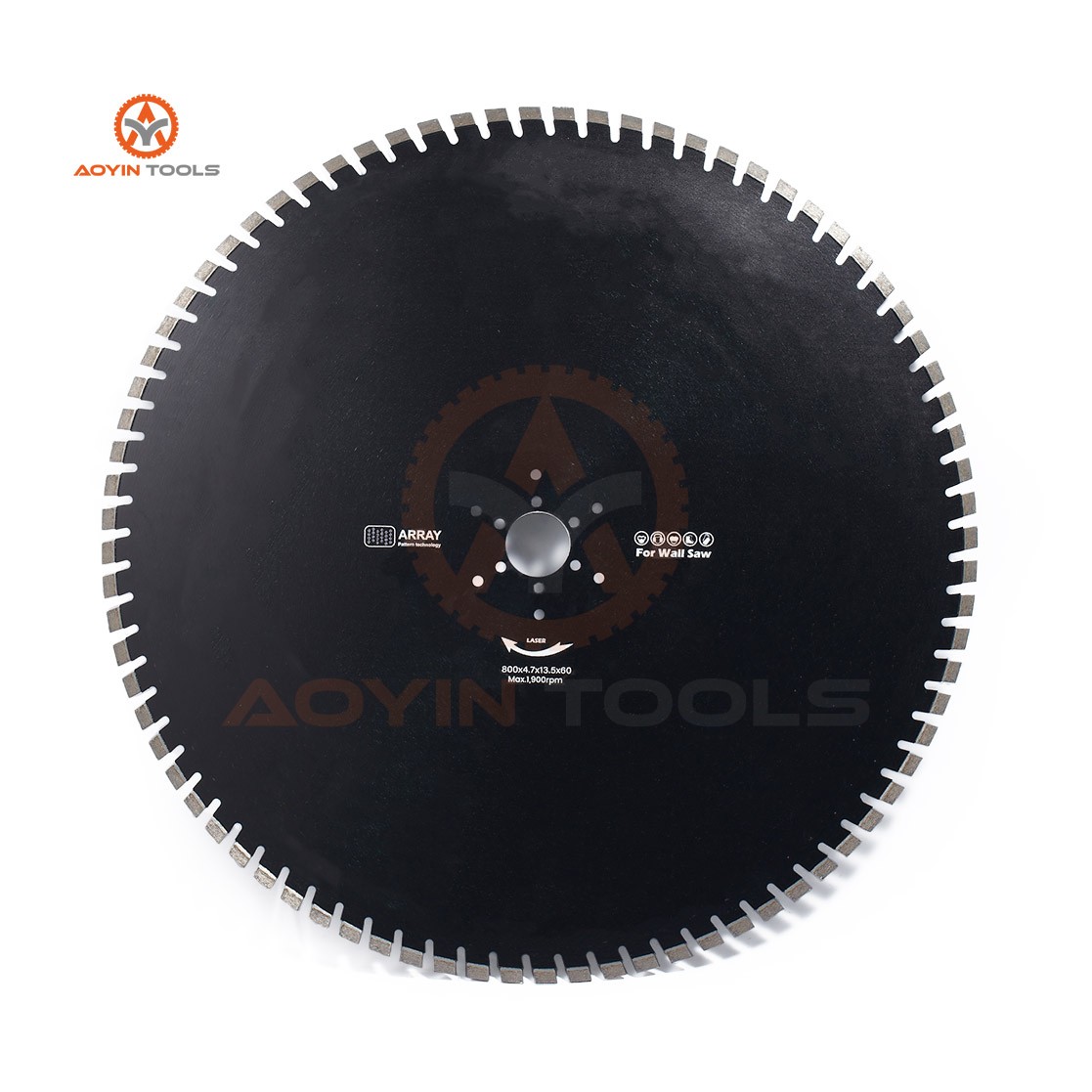

V Shape Laser Welded Diamond Wall Saw Blade For Cutting Concrete
Product Description:

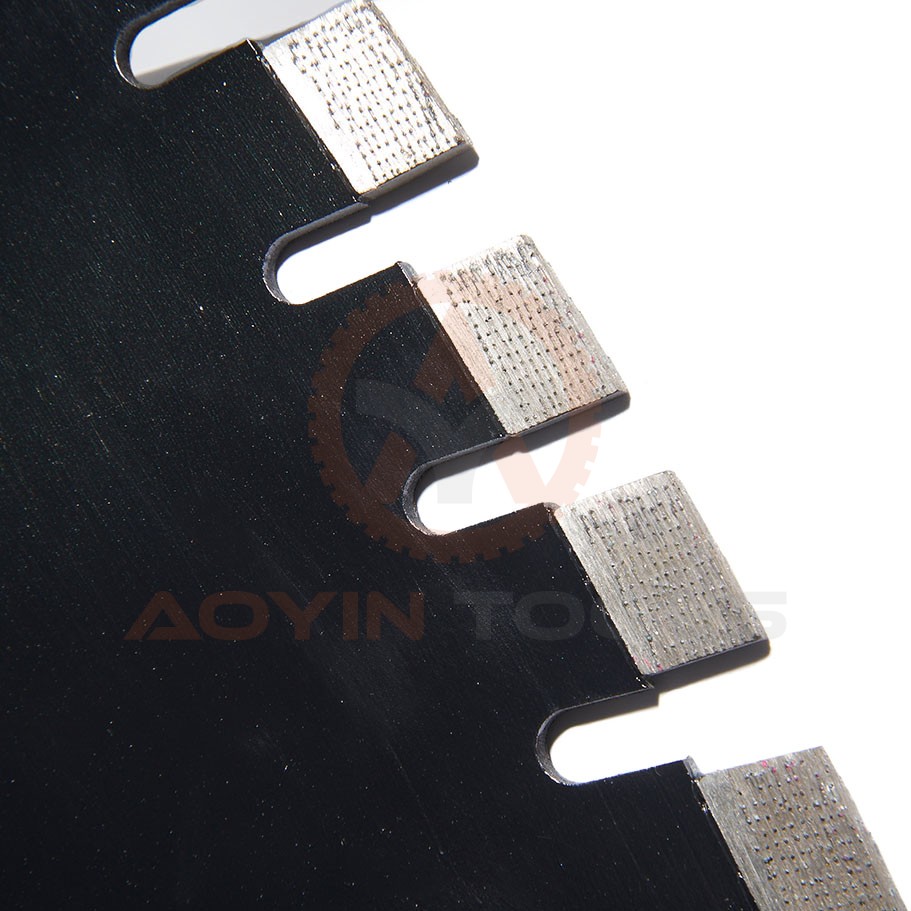

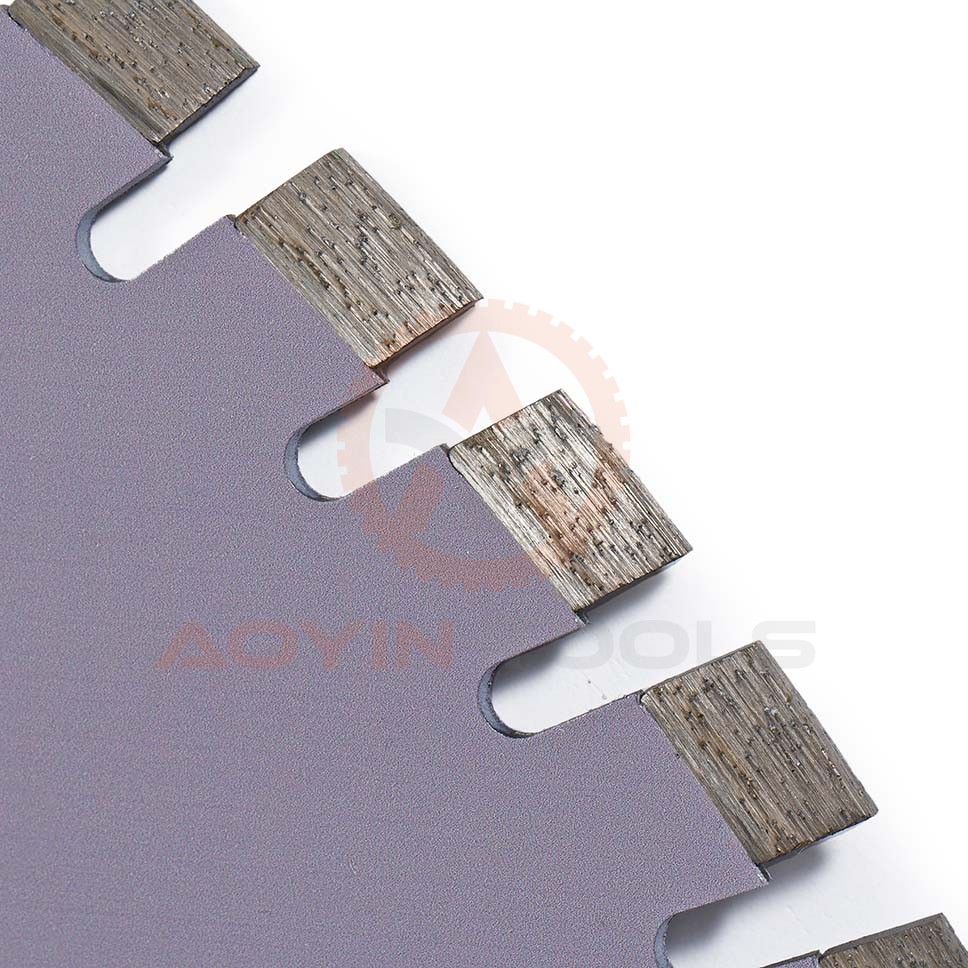

Our Rhombus Laser Welded Diamond Wall Saw Blade for Cutting Concrete is specially designed for professional construction applications. Its unique rhombus shape optimizes cutting efficiency and precision. The diamond three-dimensional spatial arrangement technology ensures even diamond distribution, maximizing performance and durability. The ultra-fine cobalt-base alloy powder matrix provides exceptional stability and strength.

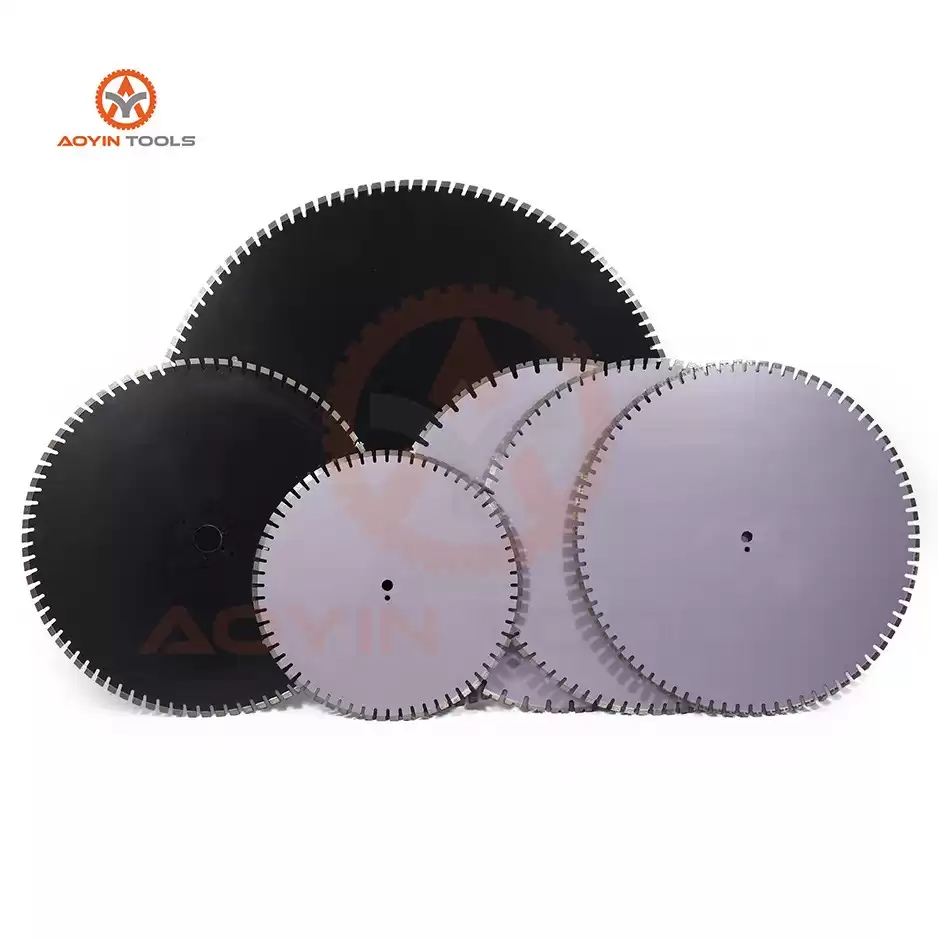

Product Specifications:
| DIAMETER |
SEGMENT DIMENSION |
BORE SIZE |
| L |
T |
W |
N |
| 500 |
20 |
3.2/4.0/4.4/4.7/5.0 |
13.5 |
50 |
60
(VARIOUS FLUSH CUTTING HOLES UPON REQUEST)
|
| 600 |
20 |
4.0/4.4/4.7/5.0/6.5 |
13.5 |
64 |
| 650 |
20 |
4.0/4.4/4.7/5.0/5.8/6.5 |
13.5 |
66 |
| 700 |
20 |
4.0/4.4/4.7/5.0/5.8/6.5 |
13.5 |
72 |
| 750 |
20 |
4.0/4.4/4.7/5.0/5.8/6.5 |
13.5 |
74 |
| 800 |
20 |
4.0/4.4/4.7/5.0/5.8/6.5 |
13.5 |
80 |
| 825 |
20 |
4.0/4.4/4.7/5.0/5.8/6.5 |
13.5 |
82 |
| 850 |
20 |
4.0/4.4/4.7/5.0/5.8/6.5 |
13.5 |
85 |
| 900 |
20 |
4.4/4.7/5.0/5.8 |
13.5 |
90 |
| 1000 |
20 |
4.4/4.7 |
13.5 |
100 |
| 1050 |
20 |
4.4/4.7 |
13.5 |
106 |
| 1200 |
20 |
4.4/4.7 |
12 |
120 |
Key Features:
1.Enhanced Cutting Speed: The innovative rhombus shape, combined with advanced spatial arrangement technology, enables faster and more efficient cutting.
2.Extended Lifespan: Improved diamond utilization efficiency, along with the cobalt-base alloy powder matrix, results in a significantly longer blade lifespan compared to conventional options.
3.Superior Stability: The ultra-fine cobalt-base alloy powder matrix provides exceptional stability, ensuring smoother and more reliable cutting performance.
4.Consistent Quality: Expect consistently superior cutting quality with our Rhombus Diamond Wall Saw Blade.

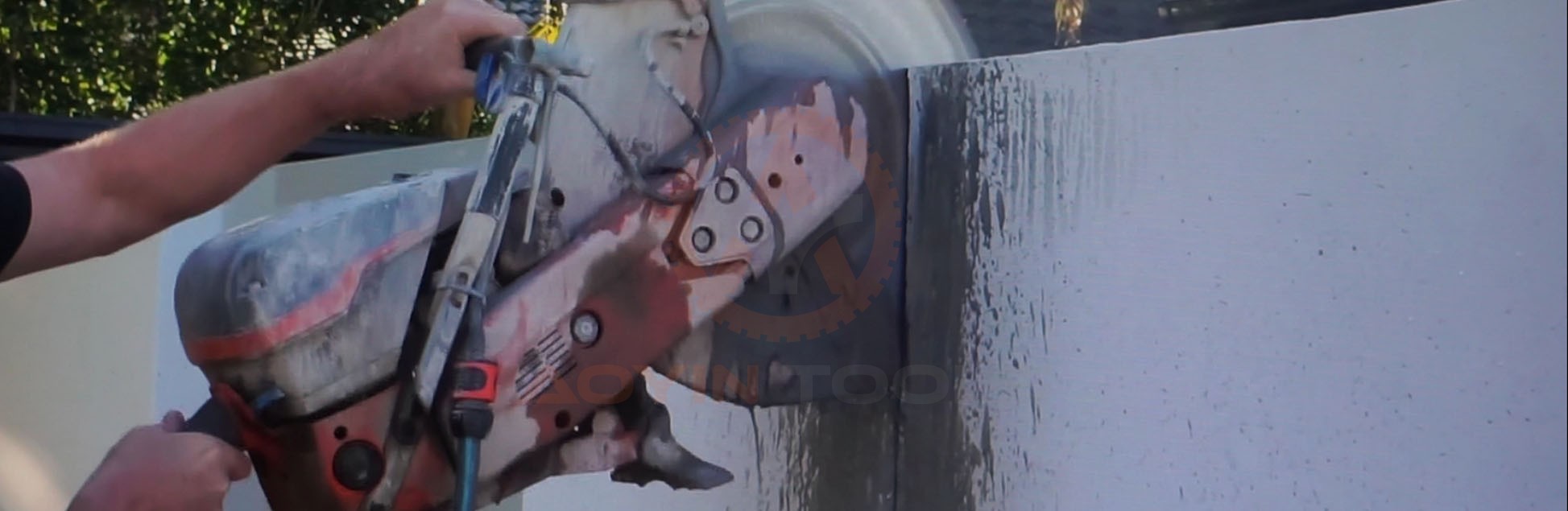

Applications:

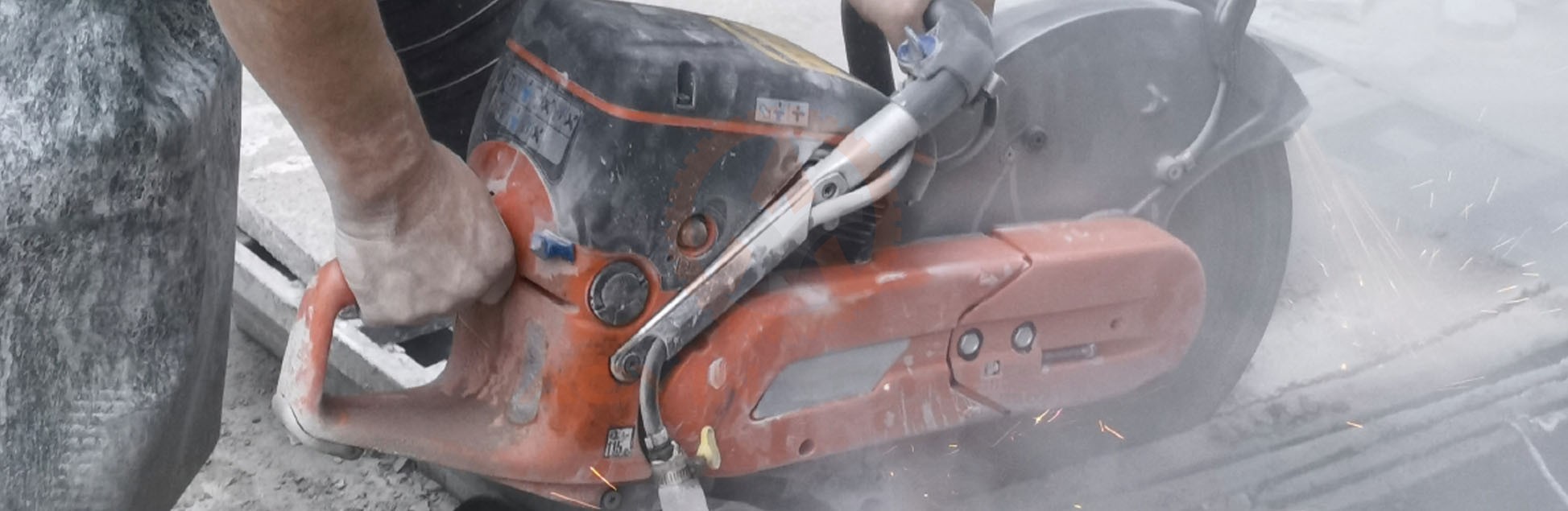

The Rhombus Laser Welded Diamond Wall Saw Blade is ideal for a wide range of cutting applications, including:
- Concrete walls and surfaces
- Masonry
- Brick
- Stone
Company Service Advantage:
At Xiamen Aoyin Industry & Trade Co., Ltd., we are committed to providing our customers with exceptional service. Our knowledgeable team is dedicated to assisting you in finding the perfect solutions for your cutting needs. We offer prompt delivery, reliable technical support, and a customer-first approach to ensure your satisfaction.
FAQ (Frequently Asked Questions):
1. How does the rhombus shape improve cutting efficiency?
The rhombus shape of our blade optimizes the contact area with the material, resulting in improved cutting efficiency and precision.
2. Can I use this blade for wet and dry cutting?
Yes, our Rhombus Diamond Wall Saw Blade is suitable for both wet and dry cutting applications. However, for optimized performance and longevity, we recommend wet cutting with appropriate coolant.
3. Are replacement segments available for this blade?
Yes, we provide replacement segments for our Rhombus Laser Welded Diamond Wall Saw Blade to ensure continued performance and cost-effectiveness.
Choose our Laser Welded Diamond Wall Saw Blade for Cutting Concrete and experience the cutting-edge technology that delivers unrivaled performance, longevity, and stability. Upgrade your cutting tools today with Xiamen Aoyin Industry & Trade Co., Ltd.
