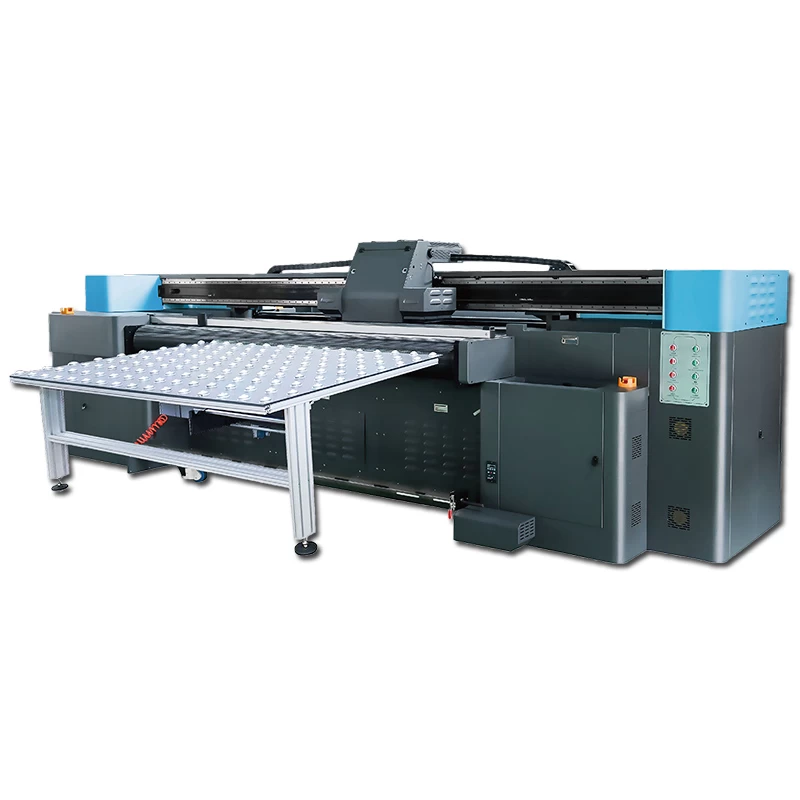

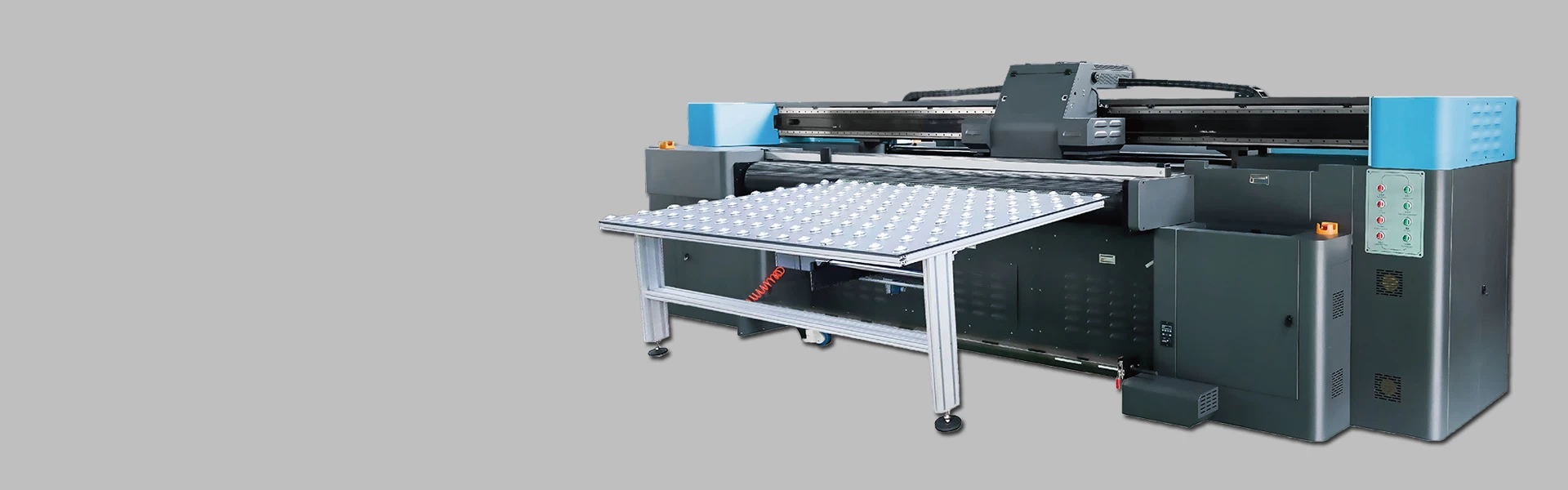

One machine support two type materials printing, roll to roll and sheet flatbed printing
Professional LED UV printing system
Whole casting iron body ensure printing high resolution
Over 15 years oversea marking experience
|

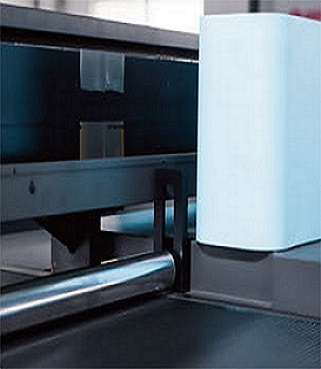

Auto rear pinch
|
|
|
|

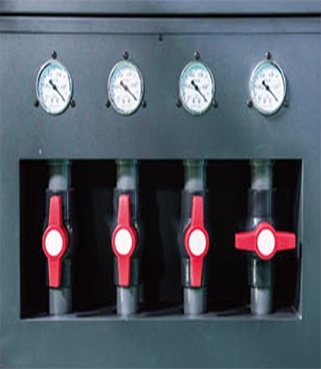

Separate Flatbed sucking
|
|
|
|
|

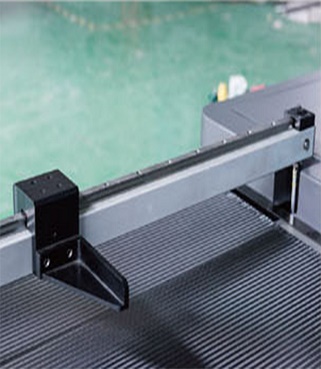

Auto ruler,to correct the position for materia
|
|
|
|
Pre-rule life and down automatically
|
|
|
|
|

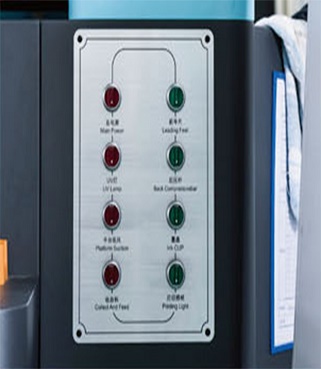

Integrated control button
|
|
|
|

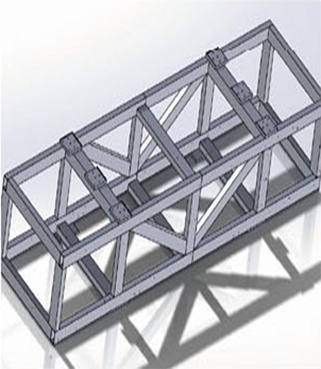

Frame construction
|
|
Technical Parameter
|
Color
|
CMYK or CMYK Lc Lm+W+Varnish
|
|
Prithead
|
Ricoh Gen5 Heads
|
|
Prine mode and speed
|
Draft 4pass
|
40㎡/h 720*600DPl
|
|
Standard 6pss
|
30㎡/h 720*900DPl
|
|
High Qualtiy 8pass
|
20㎡/h 720*1200DPl
|
|
Printing Madia
|
Soft Roll.Hard flatbed
|
|
Printing Width
|
Maxmum 2.5M
|
|
Printing Thickness
|
50MM
|
|
Image Data Fromat
|
TIFF,JPEG,EPS,PDF
|
|
Drying system
|
UV-LED Curing
|
|
Ink Type
|
Environmental Protection UV ink
|
|
Ink Volume
|
2000ML Volume ink,automatic ink detecor and ink supply system
|
|
Power Supply
|
AC 220V
|
|
RIP Software
|
Photoprint Plus Professional/ONYX
|
|
Dimension(LXWXH)
|
4732*1785*1602(MM)
|
|
Packing(LXWXH)
|
4950*2100*1825(MM)
|
|
NW&GW
|
2600KGS&2700KGS
|
|
Work Environment
|
Operating Temperature
|
15-30℃（59-86°F）
|
|
Operating Humidity
|
40-80% RH
|
|
Power
|
7.5KW
|
Applications
flex banner,film,canvas,soft film, acrylic, aluminous board,corrugated board,glass,tile
