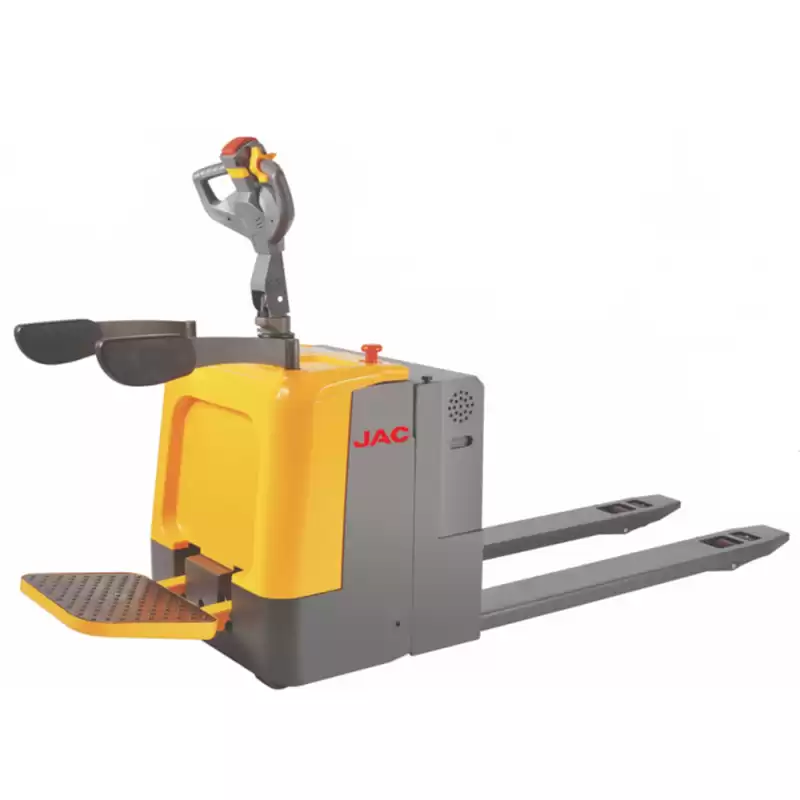

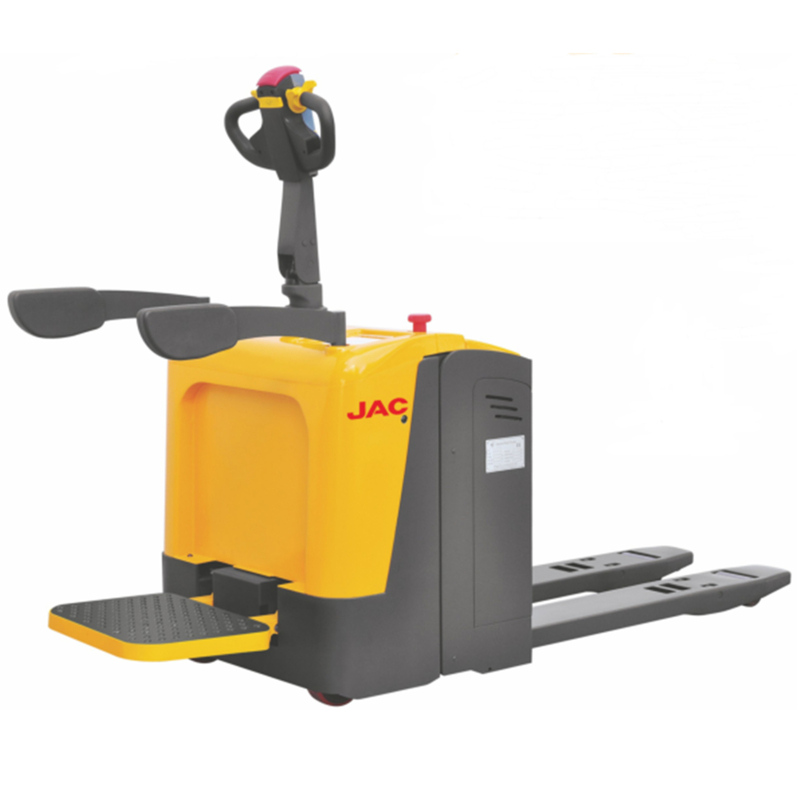

Rider Pallet Truck 2 ton to 3 ton

Stand-on type platform electric rider Pallet Truck, with small turning radius and super light steering system. widely used large warehouse and big supermarket for medium distance transport.
Loading capacity: 2 ton, 2.5 ton, 3 ton
Capacity: 500,000 units/year

Facebook Twitter Pinterest LinkedIn 分享

1. Standard features
•Germany FREI Tiller Hand
•Emergency stop & belly button
•BDI and hour meter
•Casters to balance stability
•Industrial battery
•Brushless AC motor
•Vertical driving wheel
•Sideway battery change
•Out side Charger
•Platform with speed sensor

2. Option
• Fork width and length(size)
• Load backrest
• Built-in Charger
• Customized battery compartment
• Entry & exist roller for empty pallets
• EPS
• Large compartment with battery capacity 400Ah, drive speed 10KM/H
Battery 240Ah/400Ah; Drive speed 9.5-10km/h
Option with EPS drive wheel size is 250x80mm






3. Specification

 Model   CBD20R CBD25R CBD30R
Load capacity Q(kg) 2000 2500 3000
Load centre distance c(mm) 600 600 600
Load idetance,centre of drive axle to fork x(mm) 815/865/935 815/865/935 815/865/935
Fork height,lowered h13(mm) 82 82 82
Tyre size, front  mm Φ250×70 Φ250×70 Φ250×70
Tyre size, rear  mm Φ82×126(98) Φ82×126(98) Φ82×126(98)
Additional wheels(dimensions)  mm Φ127×57 Φ127×57 Φ127×57
Wheels, number front rear(x=driven wheels)   1X+2/2(4) 1X+2/2(4) 1x+2/2(4)
Max.lift height h3(mm) 202 202 202
Height of tilier in drive position min./max h14(mm) 1150/1430 1150/1430 1150/1430
Overall length l1(mm) 1710/1760/1830 1710/1760/1830 1710/1760/1830
Length to face of forks l1(mm) 610 610 685
Overall width b1(mm) 775 775 775
Fork dimensions s/e/l(mm) 53×180×1100(1150/1220) 53×180×1100(1150/1220) 54x180x1100(1150/1220)
Width overall forks b5(mm) 520/550/650/685 520/550/650/685 520/550/650/685
Aisle width for pallets 1000×1200 crossways Ast(mm) 1910/1960/2030 1910/1960/2030 1985/2035/2105
Aisle width for pallets 800×1200 crossways Ast(mm) 2010/2010/2030 2010/2010/2030 2085/2085/2105
Turning radius Wa(mm) 1550/1600/1670 1550/1600/1670 1550/1600/1670
Travel speed,laden/unladen Km/h 7/7.1 7/7.1 7/7.1
Battery voltagem,nominal capacity K5 V/Ah 24/210 24/240 24/240(280)
Battery weight kg 196 240 650x247x505(535)
Battery dimensions l/w/h mm 750×170×534 750×170×570 240(280)
Service weight(with battery) kg 720 750 780
