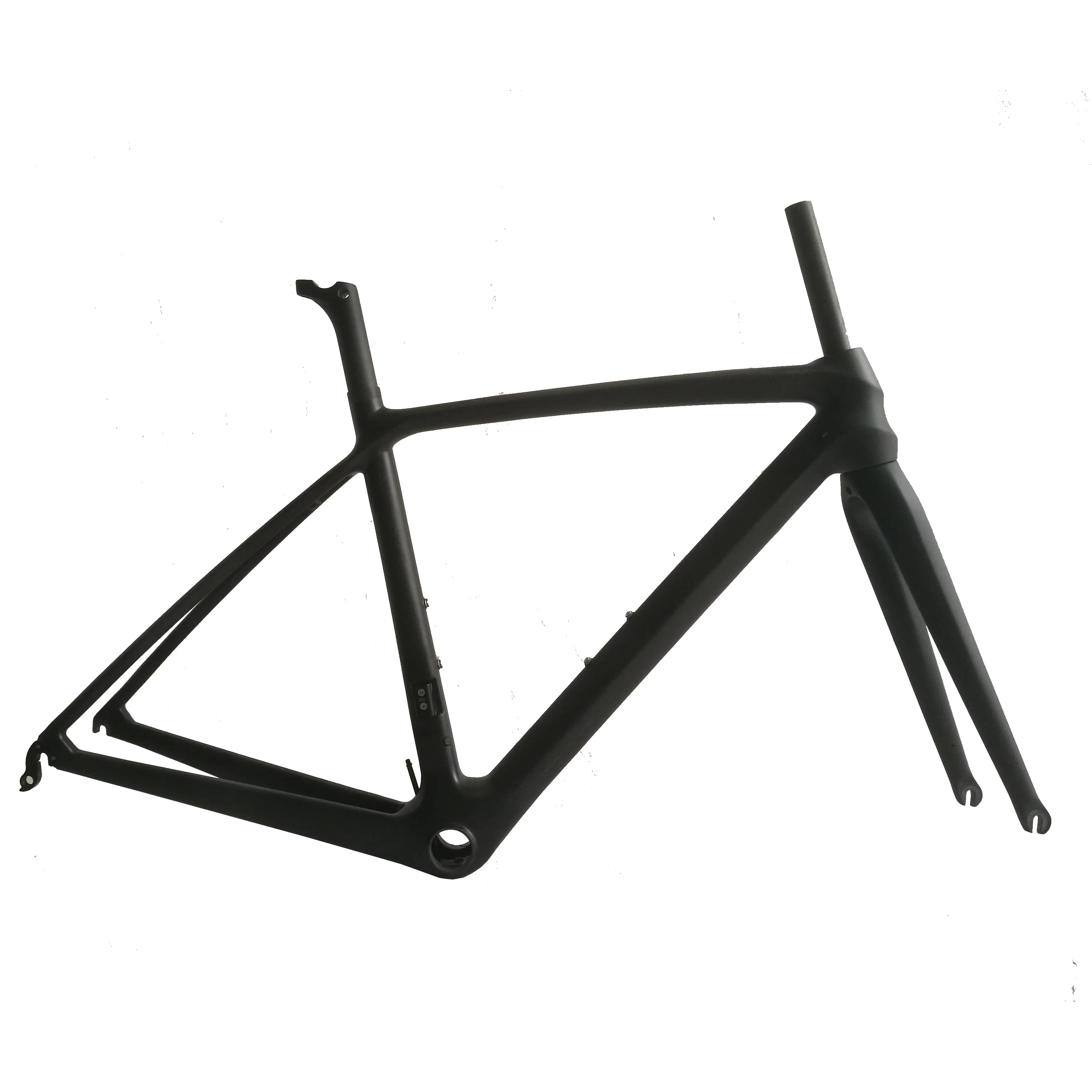

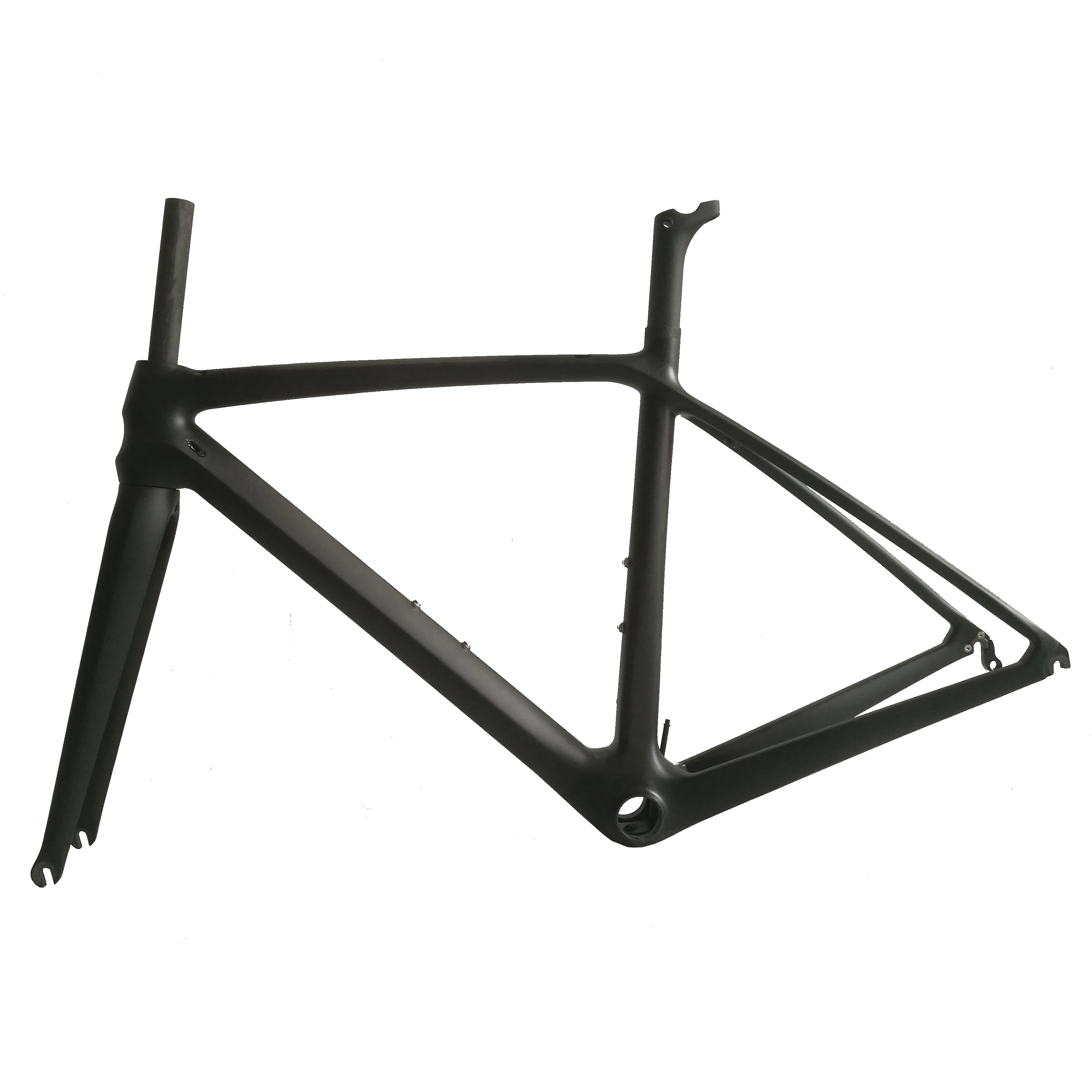

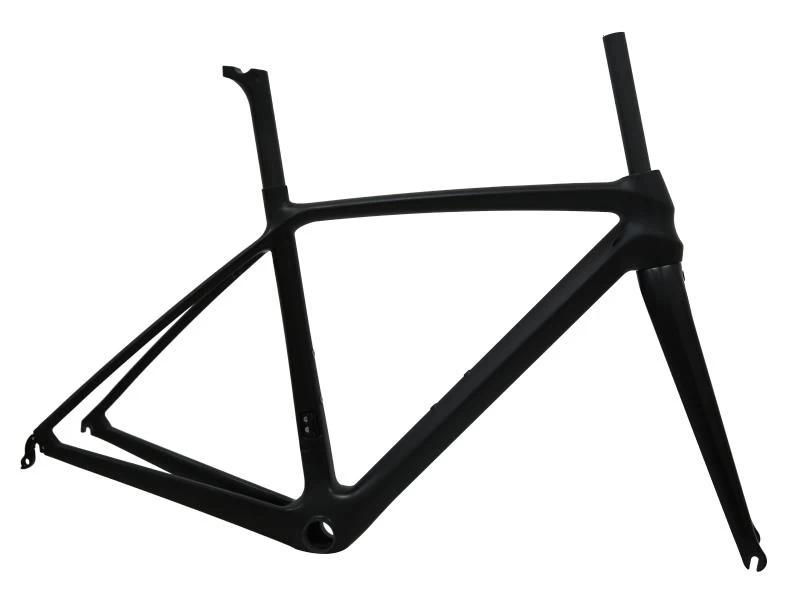

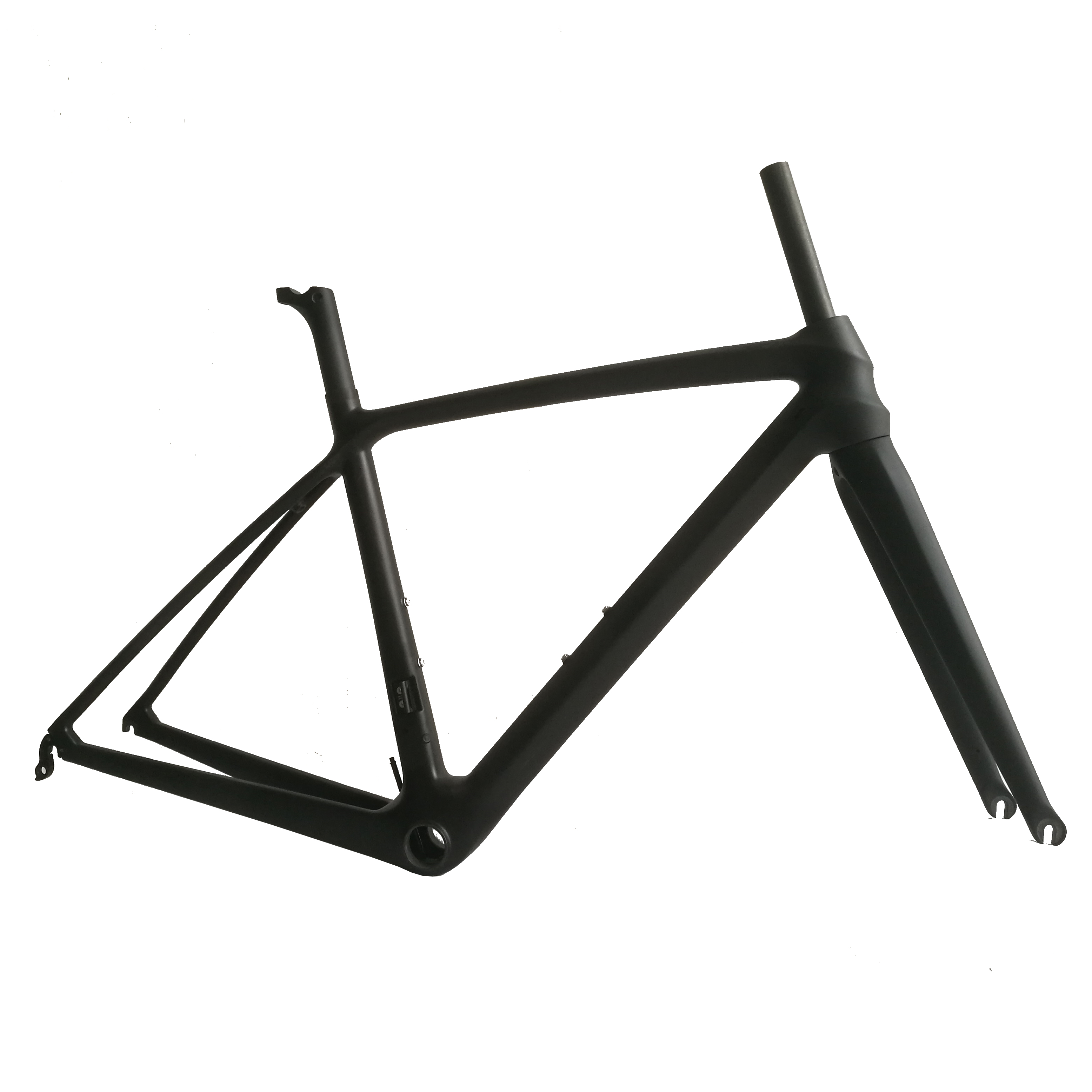

Rim Brake Road Bike Carbon Fiber Racing Frame

- 700C Road Bike Frame

- Caliper brake

- Full internal cable routing
- Machanical and Di2 groupset compatible
- Toho carbon fiber



Rim Brake Road Bike Carbon Fiber Racing Frame

ADVANTAGES:

1, Material: Toho carbon fiber.

2, EPS foam molding process, inner smoothly, better strength.

3, Customized painting / Decals is acceptable.

4, Strict develop test and mass production test. (exceed 30% of ISO4210)


PRODUCTS DESCRIPTION:

Light weight carbon road racing bike frame, with V brake design, compatible Di2, will provide you a wonderful riding experience.

PRODUCT DETAIL:

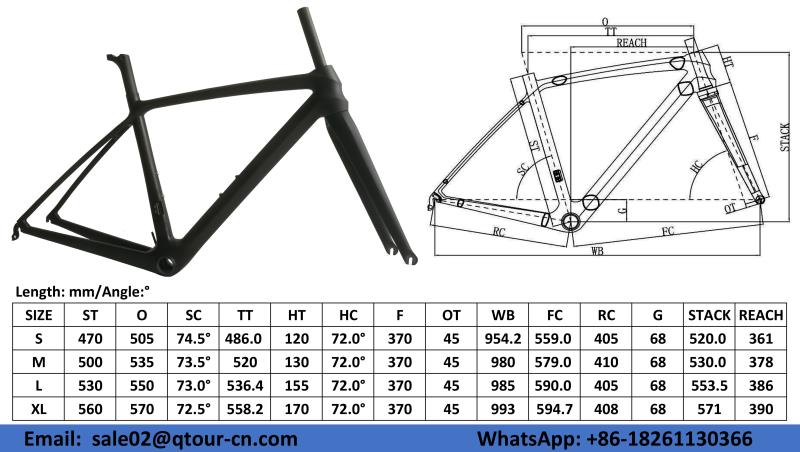

Frame: QTOUR 700C full carbon racing bike frame                        Model: R01-V + F01-V + P01

Brake: V Brake / Caliper brake                                                    Size: 470mm / 500mm / 530mm / 560mm

Headtube: Tapered 1-1/8'', 1-1/2''                                             Seatpost: Aero seatpost

O.L.D (Frame): 130mm*φ10mm                                                Bottom Bracket: BB86 press fit

O.L.D (Fork): 100mm*φ9mm                                                    Max Tire: 700C*25C

Weight: Frame 880g±50g, Fork 380g±20g                                 Finish: UD matt / glossy (customized painting acceptable)

Test Standards: EN / ISO4210                                                   Warranty: 2 years


OUR FACTORY:
1, QYH Carbon frame (QTOUR) position ourself as the high end carbon frame manufacturer.
    Our plant covers 8.5 acres, 42,000m2 workshop, 450m2 testing room.
2, Production Capacity per year:
120,000 sets Carbon Bicycles Parts,
(Include Carbon Frame, carbon e-bike frame, carbon Rim, carbon Fork, carbon Handlebar ect)
3, We have over 10 years production experience in carbon fibre business.
4, We have the creative carbon fibre stress calculation model, and in the mean time applied the xpoxy resin ratio,
    laser cutting tech, EPS foam molding, monocoque and robot painting equipments.
5, We covers the whole production process: design resin formulation, make pregpreg cloth, molding, painting.
6, Small order and sample order are accepted, OEM & ODM avilable too.

Test Standards: ISO4210. In order to make our products more stiff and strong we have raised up 30% for strict test.
