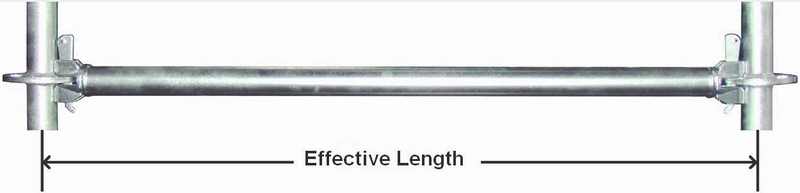

Ring Lock Scaffolding Ledger / Horizontal

Ringlock Scaffolding,also called Allround scaffolding, is one of the most popular system scaffolding or modular scaffolding for construction. It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance, etc. It supports to access work and platform as a temporary structure in building construction, or temporary stage platform / grandstand for events, and also plays a heavy load duty in many kinds of project.


Scaffolding Components: Standard, Ledger, Level Brace, Diagonal Brace, Side Bracket, Plank, Stair.

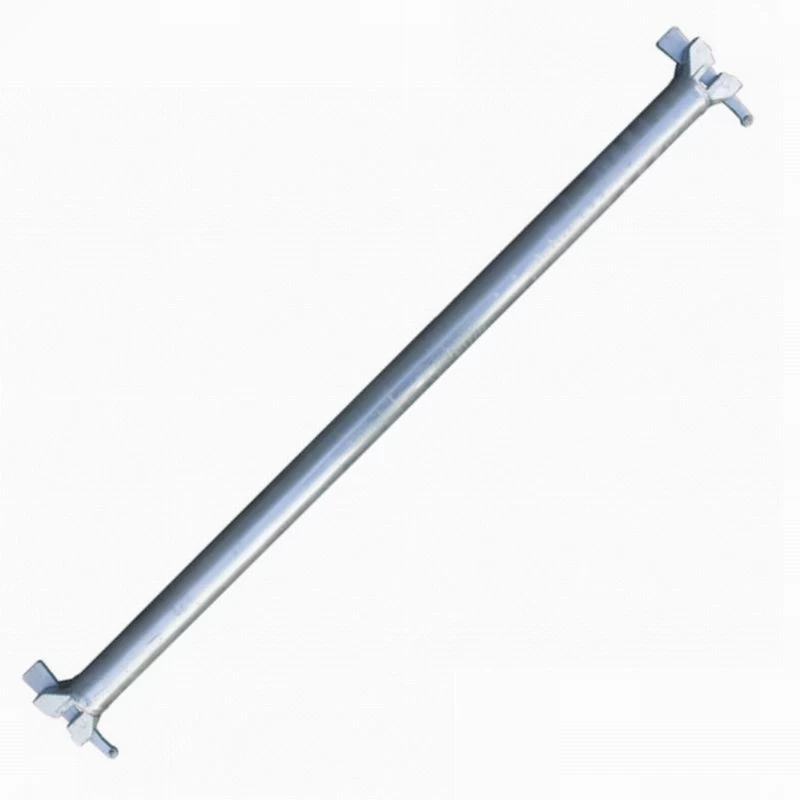

Ring Lock Scaffolding Ledger / Horizontal


Product Details:

Amercian Type Ledgers

Code Description Material Size Weight(kg) Weight(lbs)
RS.L.305 3.05M Ledger Ø48.3x3.25mm; Q235-Q355 3048mm (10') 11.47  25.29
RS.L.244 2.44M Ledger 2438mm (8') 9.28  20.46
RS.L.213 2.13M Ledger 2134mm (7') 8.19  18.06
RS.L.183 1.83M Ledger 1829mm (6') 7.10  15.66
RS.L.152 1.52M Ledger 1524mm (5') 6.01  13.25
RS.L.122 1.22M Ledger 1219mm (4') 4.91  10.83
RS.L.115 1.15M Ledger 1150mm (3'10") 4.66  10.28
RS.L.107 1.07M Ledger 1067mm (3'6") 4.37  9.64
RS.L.091 0.91M Ledger 914mm (3') 3.82  8.42
RS.L.065 0.65M Ledger 650mm (2'2") 2.87  6.33
RS.L.061 0.61M Ledger 610mm (2') 2.73  6.02

European Type Ledgers

Code Description Material Size Weight(kg) Weight(lbs)
RS.L.307 3.07M Ledger Ø48.3x3.25mm; Q235-Q355 3072mm (10'1") 11.56  25.49
RS.L.257 2.57M Ledger 2572mm (8'5") 9.76  21.52
RS.L.207 2.07M Ledger 2072mm (6'9") 7.97  17.57
RS.L.157 1.57M Ledger 1572mm (5'2") 6.18  13.63
RS.L.140 1.40M Ledger 1400mm (4'7") 5.56  12.26
RS.L.129 1.29M Ledger 1286mm (4'3") 5.15  11.36
RS.L.109 1.09M Ledger 1088mm (3'7") 4.44  9.79
RS.L.104 1.04M Ledger 1036mm (3'5") 4.26  9.39
RS.L.102 1.02M Ledger 1020mm (3'4") 4.20  9.26
RS.L.088 0.88M Ledger 880mm (2'11") 3.70  8.16
RS.L.073 0.73M Ledger 732mm (2'5") 3.17  6.99


Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is available by request.

Steel Tube Grade: Q235-Q355

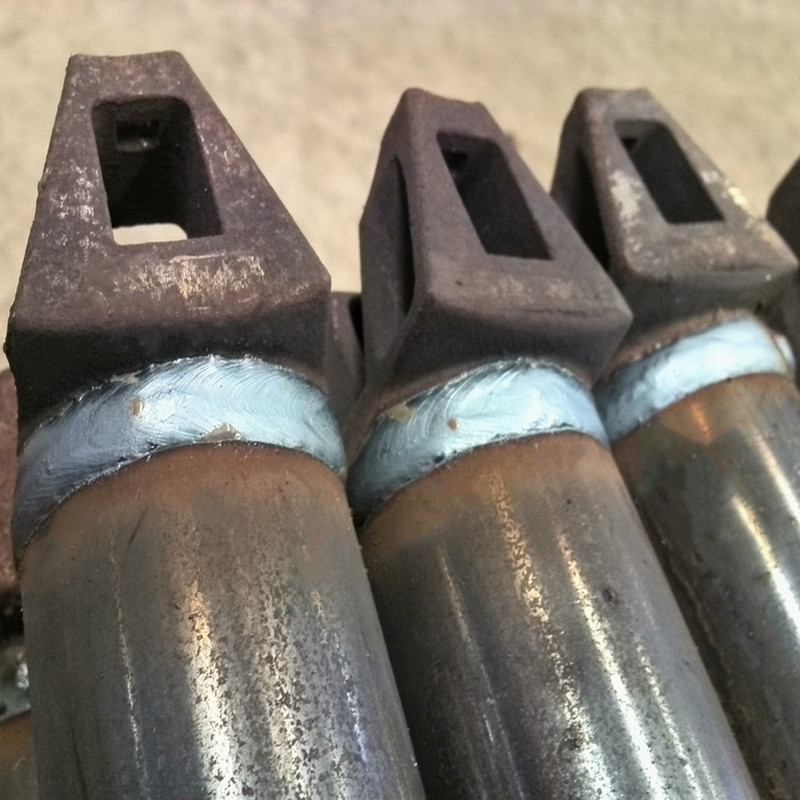

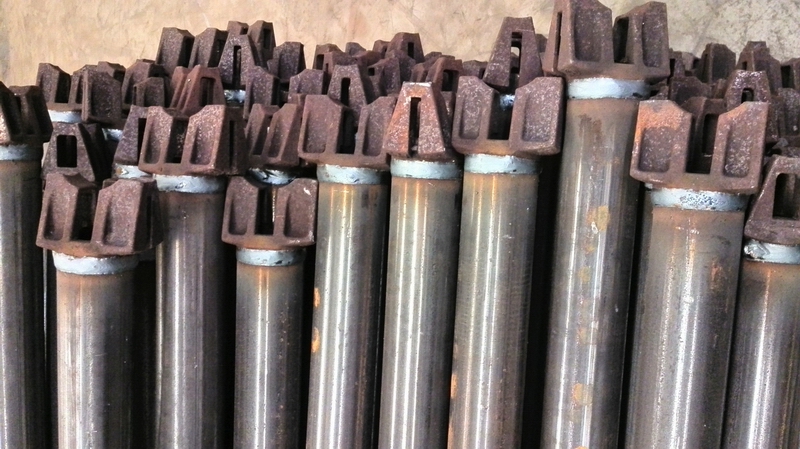

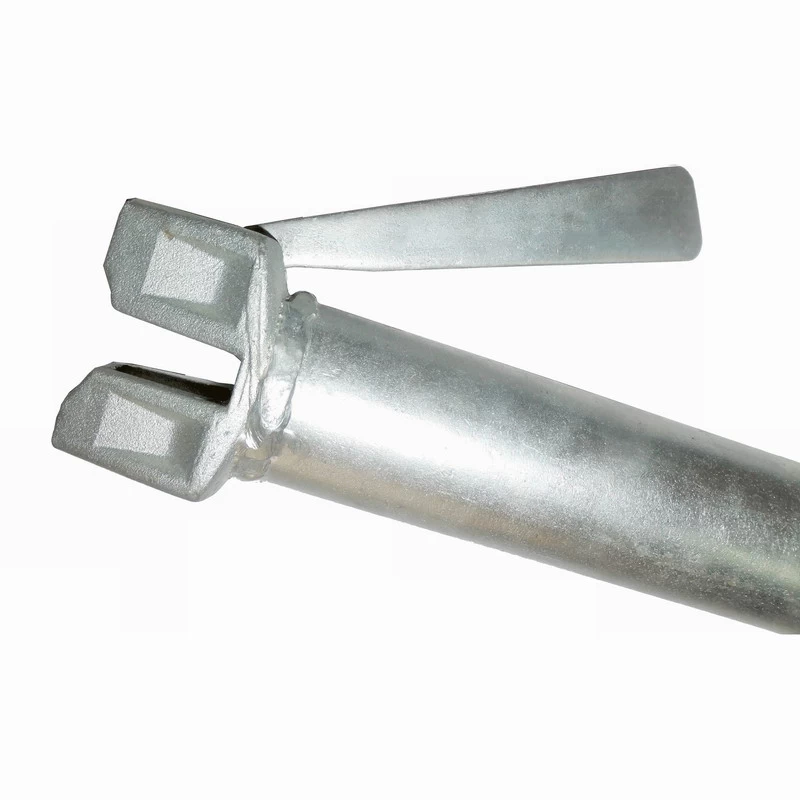

Ledger Node Connector: Casting Steel

Wedge Pin: 6mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

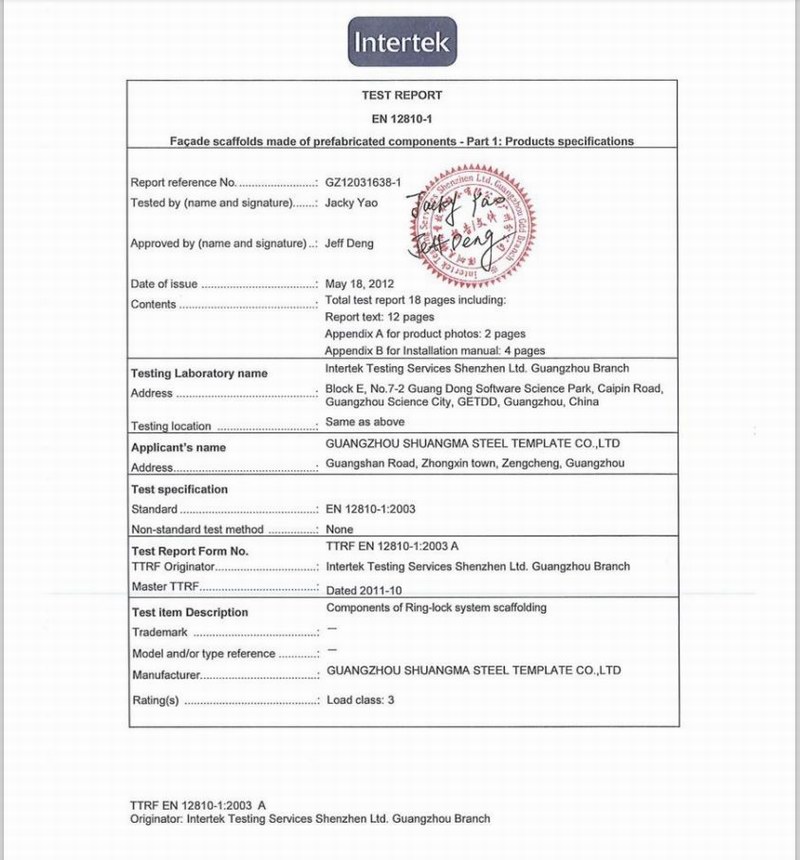

Quality Standard: EN12810

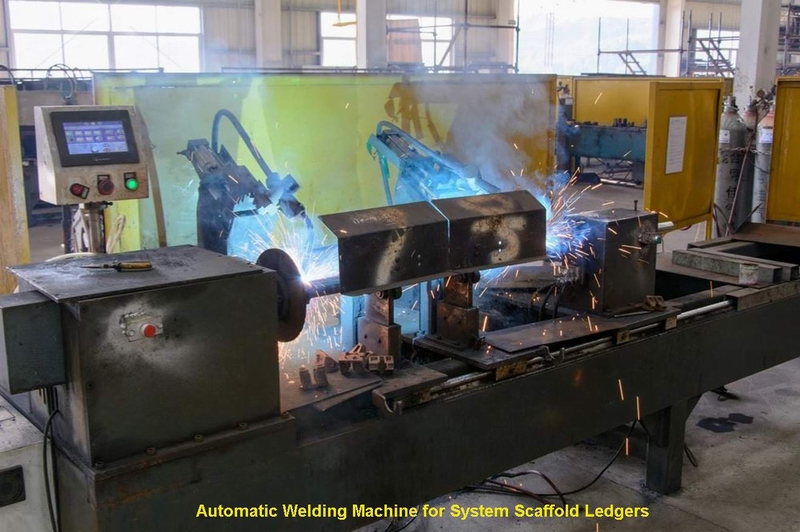

Welding Process: Automatic welding

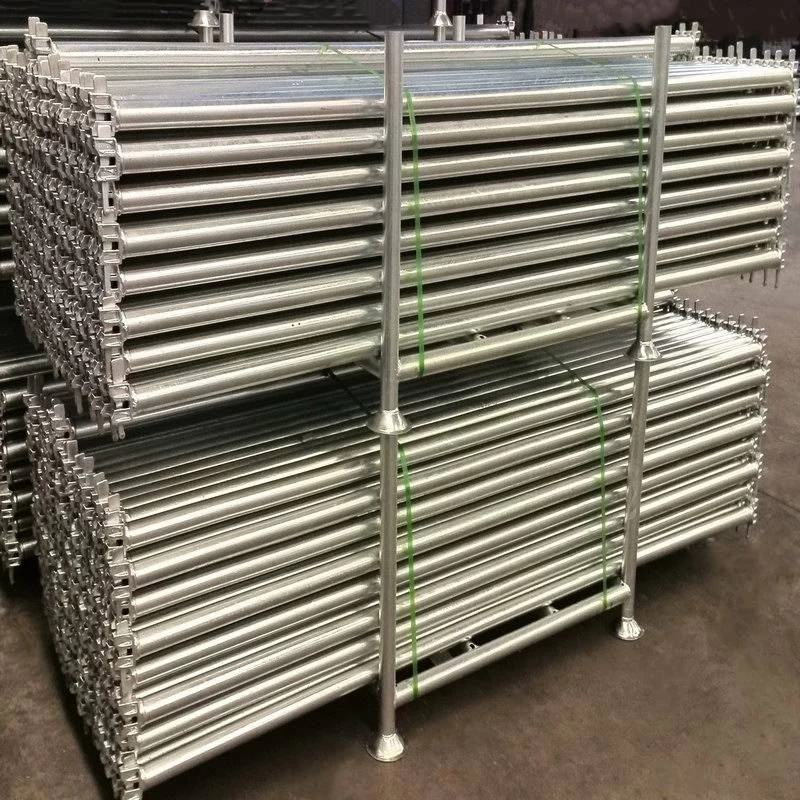

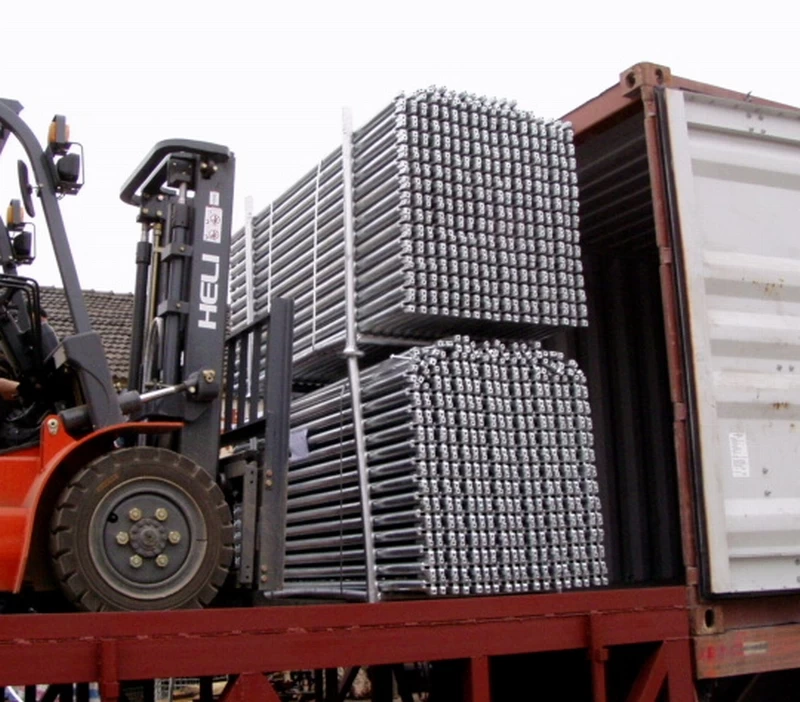

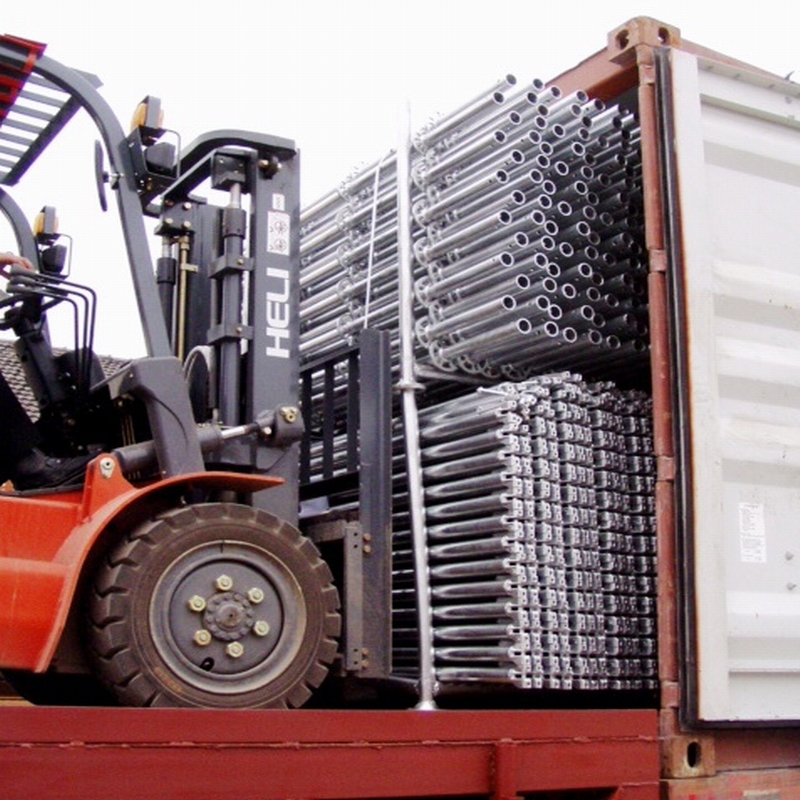

Packing: Steel Racks
