Ring Lock Scaffolding Standard / Vertical (Short Spigot)

Ringlock Scaffolding,also called Allround scaffolding, is one of the most popular system scaffolding or modular scaffolding for construction. It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance, etc. It supports to access work and platform as a temporary structure in building construction, or temporary stage platform / grandstand for events, and also plays a heavy load duty in many kinds of project.


Scaffolding Components: Standard, Ledger, Level Braces, Diagonal Brace, Side Bracket, Plank, Stair.


  • MaterialSteel

Ring Lock Scaffolding Standard / Vertical (Short Spigot)


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
RS.S.400 4.00M Standard Ø48.3x3.25mm; Q235-Q355 4000mm (13'1") 18.68  41.19
RS.S.350 3.50M Standard 3500mm (11'6") 16.42  36.21
RS.S.300 3.00M Standard 3000mm (9'10") 14.17  31.24
RS.S.250 2.50M Standard 2500mm (8'2") 11.92  26.28
RS.S.200 2.00M Standard 2000mm (6'7") 9.66  21.30
RS.S.150 1.50M Standard 1500mm (4'11") 7.41  16.34
RS.S.100 1.00M Standard 1000mm (3'3") 5.16  11.38
RS.S.050 0.50M Standard 500mm (1'8") 2.90  6.39


Ring Lock Scaffolding Standard



Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 4.0mm/3.5mm/3.0mm is also available by request.

Spigot Size: O.D 38x3x220mm

Steel Tube Grade: Q235-Q355

Rossette Distance: 500mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted


Quality Standard: EN12810

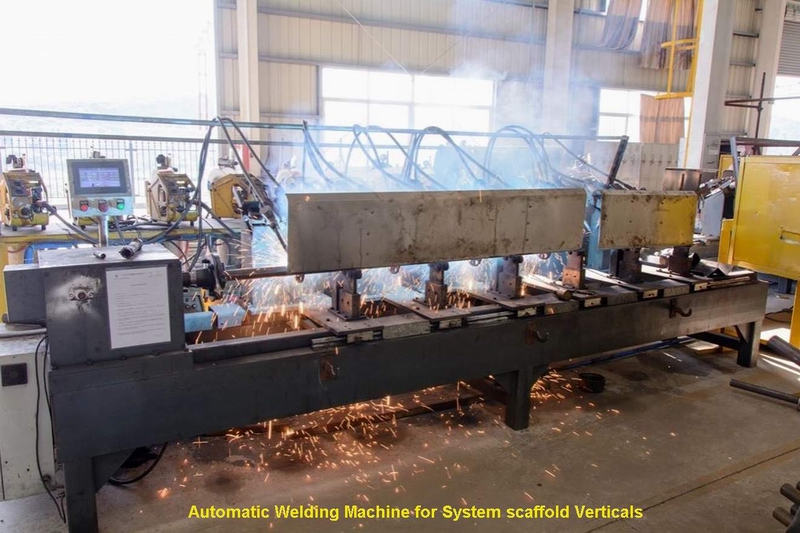

Welding Process: Automatic welding

High Quality All Round Scaffolding

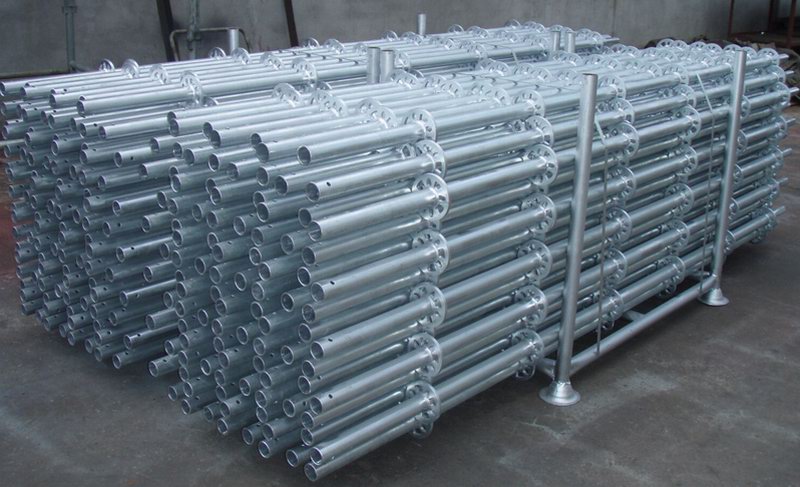

Packing: Steel Racks

Hot Dip Galvanized System Scaffolding

EN12810 Scaffolding for Sales
