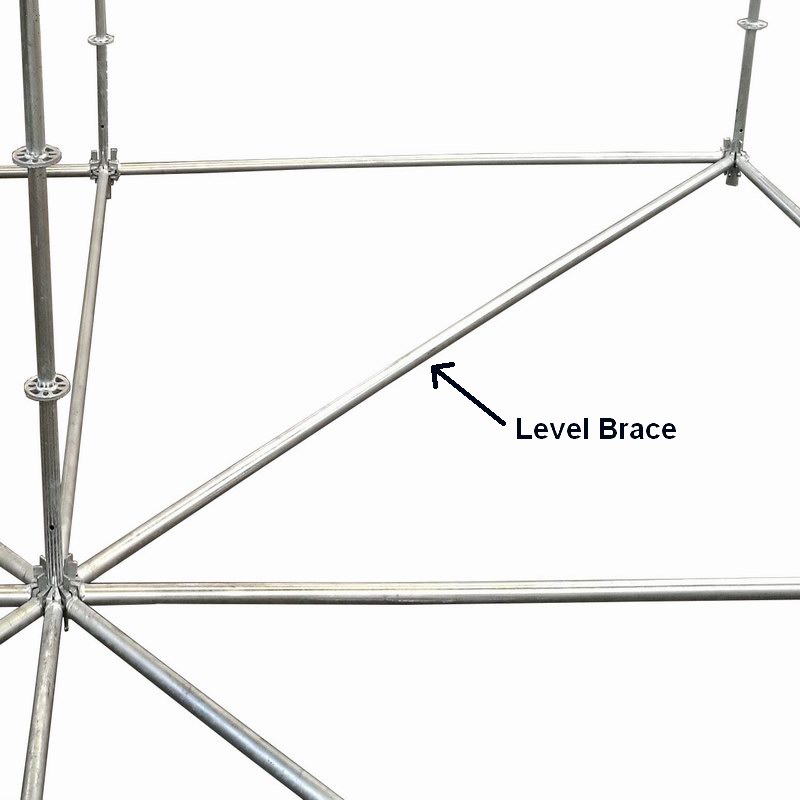

Ring Lock Scaffolding Level Brace / Plain Brace / Diagonal Ledger
Product Details:
|
Code
|
Description
|
Material
|
Size
|
Weight(kg)
|
Weight(lbs)
|
|
RS.LB.305305
|
3.05x3.05M Level Brace
|
Ø48.3x3.25mm; Q235-Q355
|

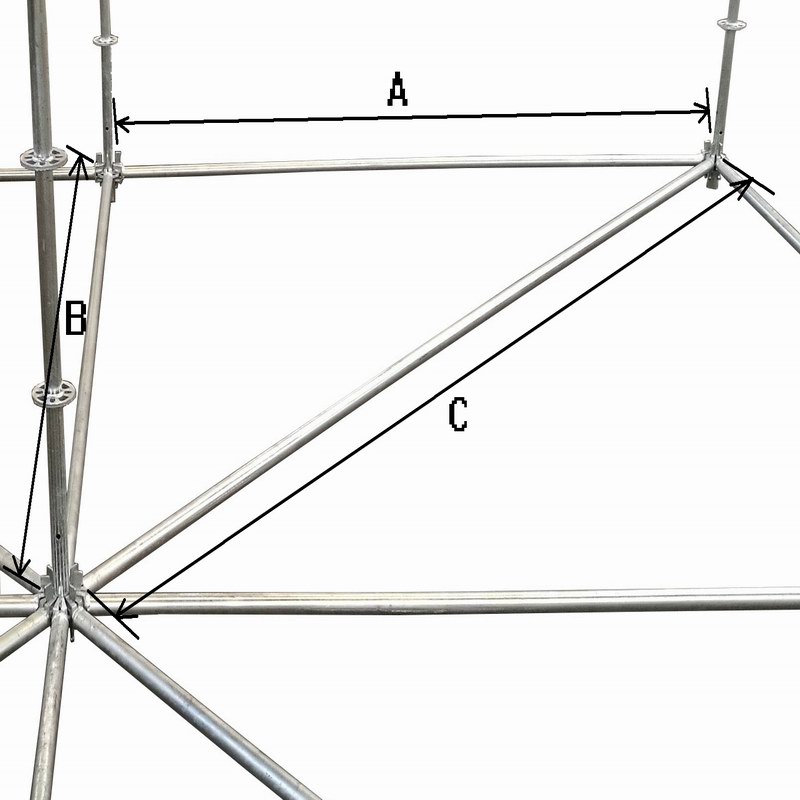

A: 3048mm; B: 3048mm; C: 4310mm
|
16.00
|
35.28
|
|
RS.LB.305244
|
3.05x2.44M Level Brace
|
A: 3048mm; B: 2438mm; C: 3903mm
|
14.54
|
32.06
|
|
RS.LB.305213
|
3.05x2.13M Level Brace
|
A: 3048mm; B: 2134mm; C: 3720mm
|
13.88
|
30.61
|
|
RS.LB.244244
|
2.44x2.44M Level Brace
|
A: 2438mm; B: 2438mm; C: 3448mm
|
12.91
|
28.47
|
|
RS.LB.244213
|
2.44x2.13M Level Brace
|
A: 2438mm; B: 2134mm; C: 3240mm
|
12.16
|
26.81
|
|
RS.LB.213213
|
2.13x2.13M Level Brace
|
A: 2134mm; B: 2134mm; C: 3018mm
|
11.36
|
25.05
|
|
|
|
|
|
|
|
RS.LB.307307
|
3.07x3.07M Level Brace
|
A: 3072mm; B: 3072mm; C: 4344mm
|
16.12
|
35.54
|
|
RS.LB.307257
|
3.07x2.57M Level Brace
|
A: 3072mm; B: 2572mm; C: 4007mm
|
14.91
|
32.88
|
|
RS.LB.307207
|
3.07x2.07M Level Brace
|
A: 3072mm; B: 2072mm; C: 3705mm
|
13.83
|
30.50
|
|
RS.LB.257257
|
2.57x2.57M Level Brace
|
A: 2572mm; B: 2572mm; C: 3637mm
|
13.58
|
29.94
|
|
RS.LB.257207
|
2.57x2.07M Level Brace
|
A: 2572mm; B: 2072mm; C: 3303mm
|
12.39
|
27.32
|
|
RS.LB.207207
|
2.07x2.07M Level Brace
|
A: 2072mm; B: 2072mm; C: 2930mm
|
11.05
|
24.37
|
Features:
Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is also available by request.
Steel Tube Grade: Q235-Q355

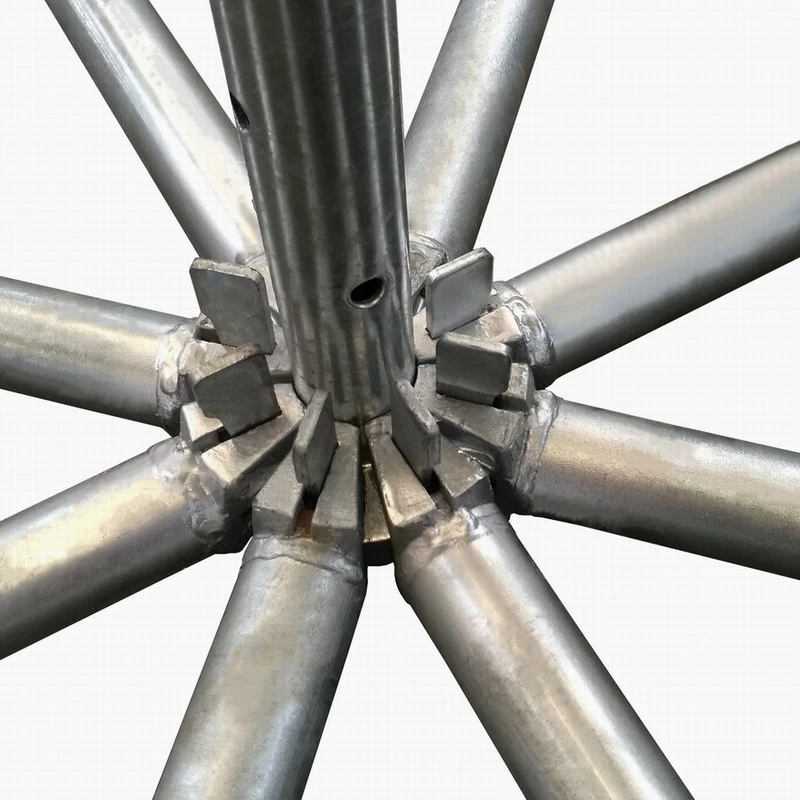

Ledger Fitting: Casting Steel
Ledger Wedge Pin: 6mm
Suface Finishing: Hot Dip Galvanized; Powder Coated, Painted
Quality Standard: EN12810
