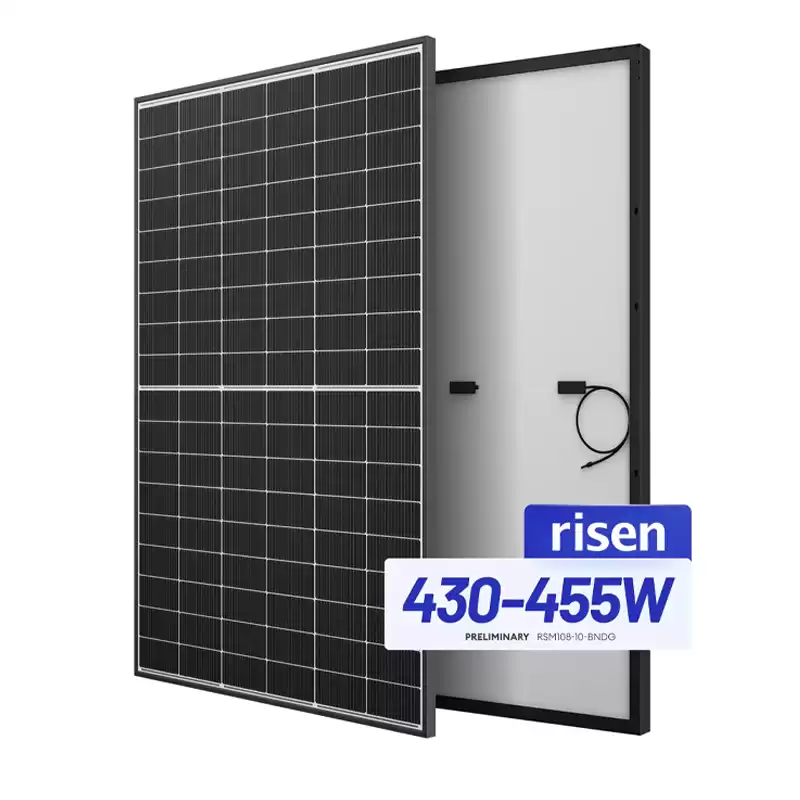

RISEN RSM108-10-450/455BNDG N-type Topcon Solar Panel

RISEN   RSM108-10-450BNDG  N-type Topcon Solar Panel

430-455W

N-Type TOPCON High Performance Dual Glass Module

SMBB Technology

Better light trapping and current collection to improve module power output and reliability.

Enhanced Mechanical Load

Excellent Anti-PlD performance guarantee via optimized mass-production process and.

Hot 2.0 Technology

The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.

Enhanced Mechanical Load

Certified to withstand wind load (2400 Pasce and snow load (5400 Pascal). materials control.










Product Description

Risen Power Outdoor Solar Panel 12V 410W 430W 450W Solar Panels From China

Model Type
RSM108-10-430-455BNDG
Rated Power in Watts-Pmax(Wp)
430
435
440
445
450
455
Open Circuit Voltage-Voc(V)
38.17
38.39
38.61
38.83
39.05
39.27
Short Circuit Current-Isc(A)
14.4
14.47
14.55
14.61
14.66
14.74
Maximum Power Voltage-Vmpp(V)
31.72
31.9
32.08
32.27
32.44
32.63
Maximum Power Current-Impp(A)
13.58
13.66
13.74
13.82
13.88
13.96
Module Efficiency (%)
21.1
21.3
21.6
21.8
22.1
22.3
TEMPERATURE & MAXIMUM RATINGS
Nominal Module Operating Temperature(NMOT)
44°C±2°C
Temperature Coefficient of Voc
-0.25%/°C
Temperature Coefficient of Isc
0.046%/°C
Temperature Coefficient of Pmax
-0.29%/°C
Operational Temperature
-40°C~+85°C
Maximum System Voltage
1500VDC
Max Series Fuse Rating
30A
Limiting Reverse Current
30A
