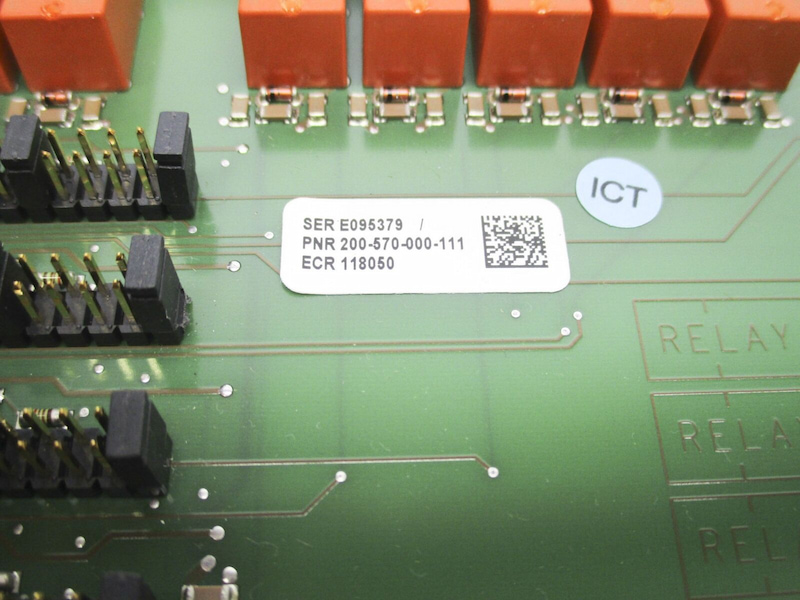

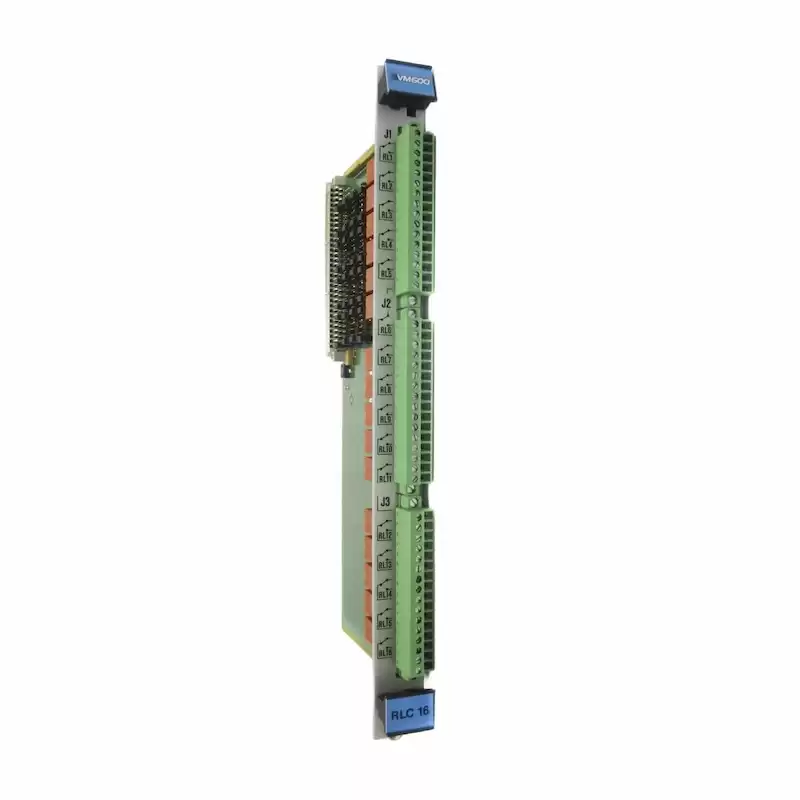

RLC16 200-570-000-111 Relay Card
The RLC16 relay card is designed for use in the machinery protection systems and condition and performance monitoring systems. It is an optional card, for use when the four relays on the IOC4T input /output card are insufficient for the application and additional relays are required.
The RLC16 is installed in the rear of a rack (ABE04x or ABE056) and connects directly to the rack backplane via a single connector.
The RLC16 contains 16 relays with change-over contacts. Each relay is associated with 3 terminals on a screw-terminal connector accessible at the rear of the rack.
KEY FEATURES AND BENEFITS
• Relay card with screw-terminal connectors
• 16 relays with change-over contacts
• Relay driver inverter logic (jumper selectable)
• Low contact resistance
• Low capacitance
• High through power
• Live insertion and removal of cards (hot-swappable)
• Conforms to EC standards for EMC
Technical Specifications
| Manufacturer |
VM |
| Part Number |
200-570-000-111 |
| Ordering Information |
200-570-000-111 |
| Product Catalog |
RLC16 |
| Description |
Relay Card |
| Voltage |
250 Vac |
| Current |
5 A |
| Dimensions |
262 mm x 20 mm x 125 mm |
| Weight |
0.3 kg |
