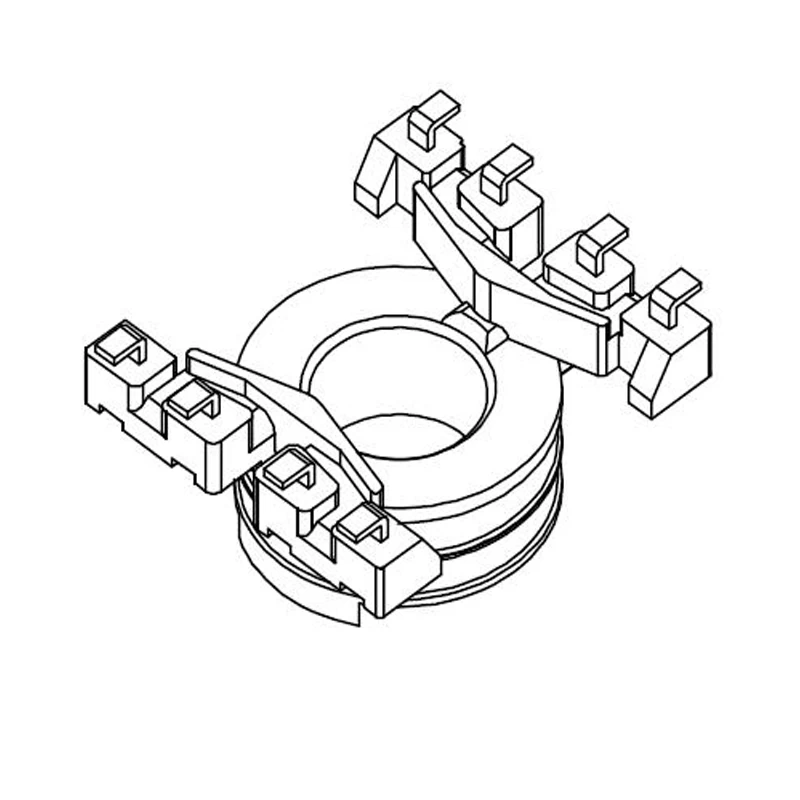

RM6 Control Transformer Vertical Bobbin Pin 4+4

RM6 ferrite core bobbin for audio transformer. Vertical RM6 4+4 pin bobbin. Bobbin Size=18.7mmX17.1mmX12.7mm. Parallel Distance=15.3mm. Pin Pitch1=5.1mm. Pin Pitch2=3.7mm. RM6 transformer has strong anti-interference and attenuation of low transmission, mainly used for PCB circuits, mobiles, printers, computers and other equipments.



Hot selling RM6 series transformer bobbins, 4+4 pin vertical bobbin, welcome for small order.


Quick Details

Part No: MCT-RM0616

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: RM6 Control Transformer Vertical Bobbin Pin 4+4

Product Range: Transformers,Inductors,Bobbins,Ferrite cores.

Applications: Final filters and transformers for telecommunication other electronic equipment.

Samples time: 7-10 days for customized parts,3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

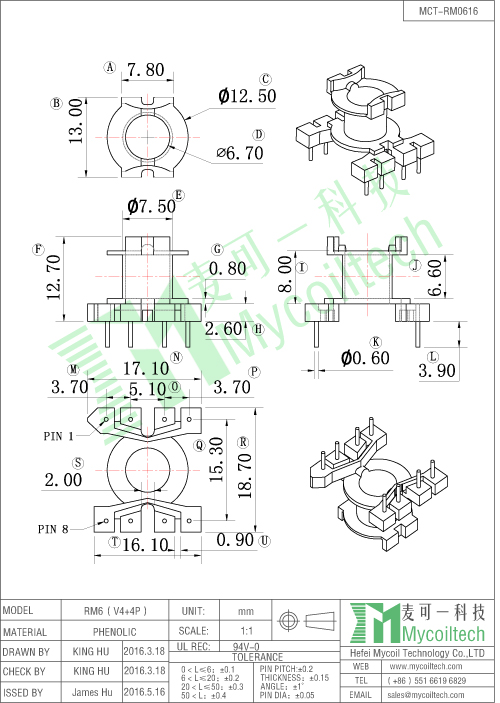

Product Specification

4+4 pin RM6 vertical bobbin


For more details, welcome to contact us:

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily
